3. Product Description
3 Product Description
3.1 Functional Description
The Blackbird OECD is a fiber optical measurement device for measuring the
wavelength of fiber Bragg grating sensors (for example temperature, strain or
acceleration).
3.1.1 Overview
TIP
Number of channels depends on the variant.

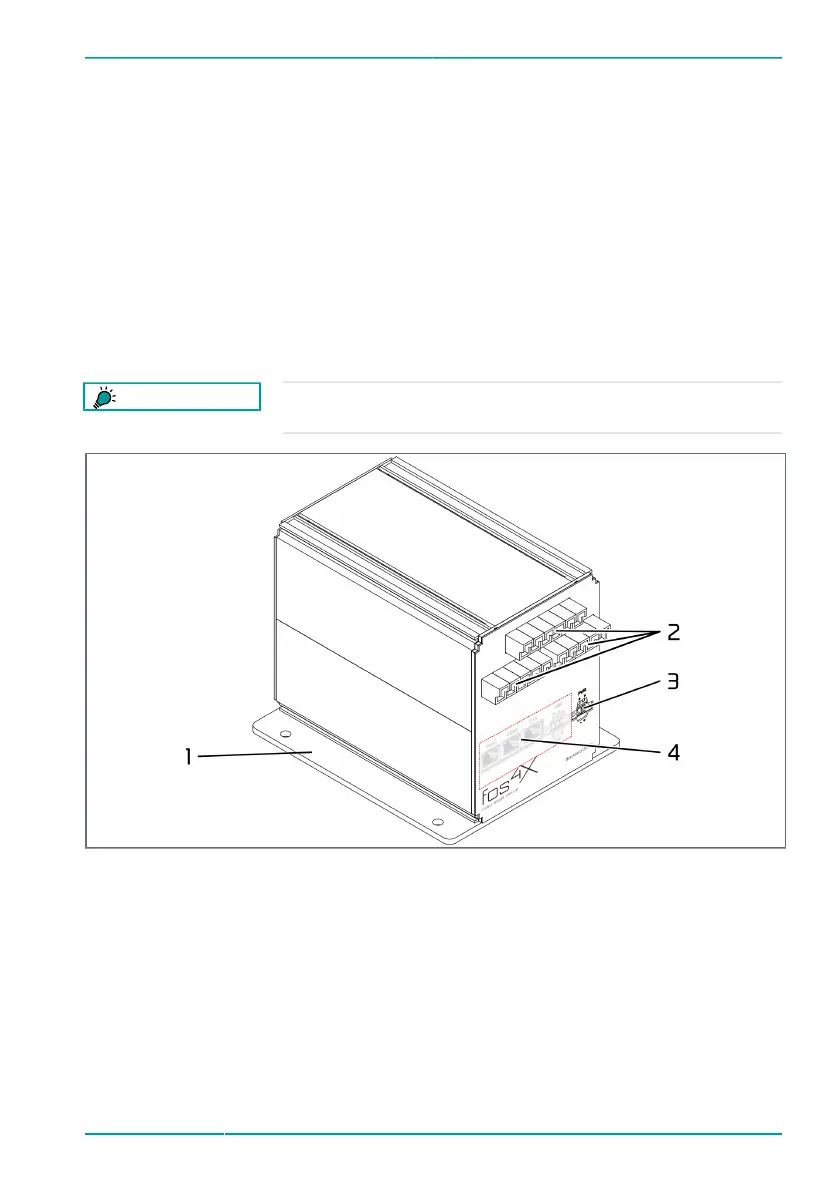

Figure 1: Overview
1
Mounting plate
2
E-2000 connectors
3
PWR connector
4
Data interfaces
The Blackbird OECD consists of the following components:
■
Mounting plate: Used to attach the Blackbird OECD with 4 M6 bolts or welding
studs.
■
E-2000/APC connectors: 9 sockets for the connection of fiber optical sensors
with E-2000/APC connector.
© fos4X 2020
MDE1195_4-10_1.3.x_5.0_Blackbird
OECD_(9CH, PRN)-en-us
11 / 76
