fos4X Blackbird OECD MDE1195 User Manual

3. Product Description
■
Power supply:

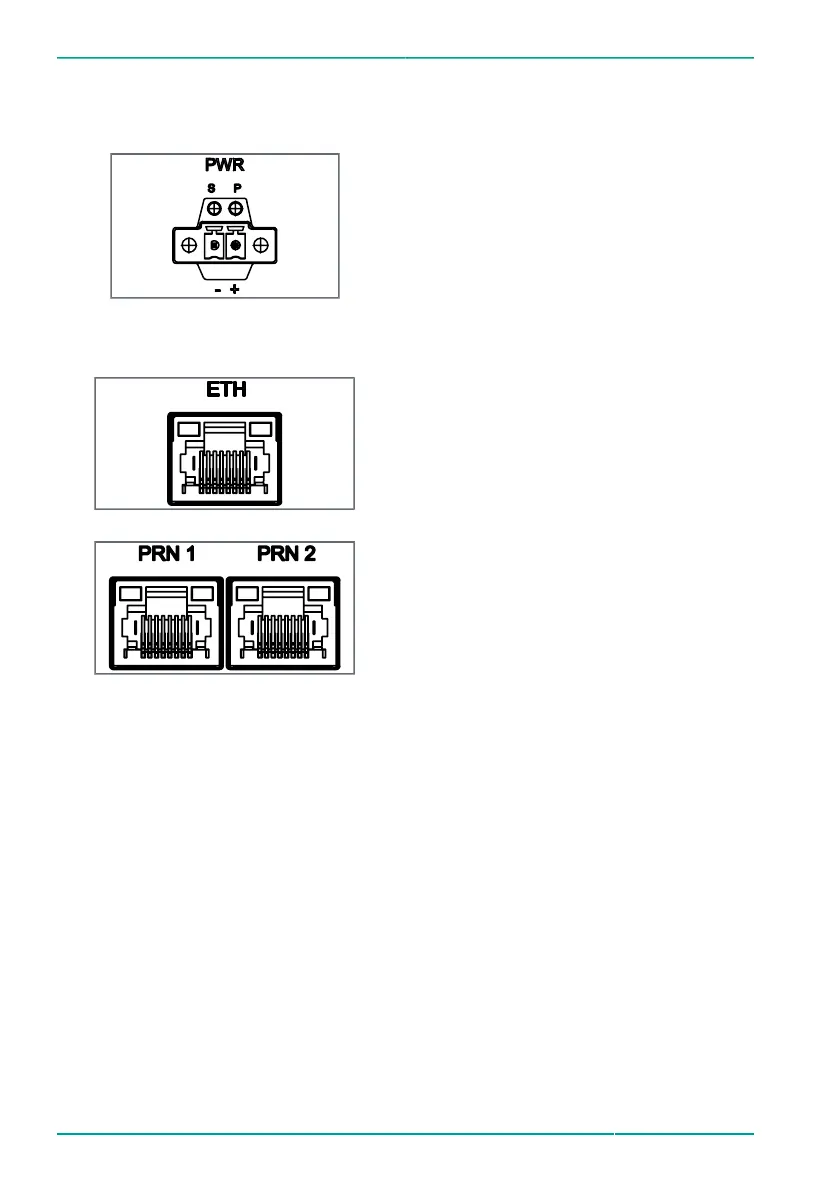

Figure 2: PWR connector
PWR: MC 1,5/ 2-GF-3,81 connector for the
power supply with 10 … 28 V DC.
■
Interfaces:
Figure 3: ETH connector
ETH: RJ45 connector for the connection to an
Ethernet network.
Figure 4: PRN connectors
PRN1 and PRN2: RJ45 connector for the
connection to a Profinet network.
3.1.2 Operation
Up to 9 fiber Bragg grating sensors are connected via fiber optical cables to the
E-2000/APC connectors of the Blackbird OECD.
The Blackbird OECD evaluates the signals of the sensors and provides the
wavelengths of the individual sensors via the following interfaces:
■
Ethernet
■
Profinet
12 / 76
MDE1195_4-10_1.3.x_5.0_Blackbird
OECD_(9CH, PRN)-en-us
