5. Installation
5.5 Connecting a Sensor
NOTICE
Poor signal quality due to dust and dirt on the sockets and
connectors.
Optical connections are very sensitive to dust and dirt.
u
Ensure a clean working environment.
u
Seal sockets and connectors with dust caps when not in
use.
u
Clean sockets and plugs with a optical connector cleaner
before connecting.
TIP
The assignment of channels and sensors depends on the
application of the Blackbird OECD.
If available: Observe the color coding of the sensors and
channels.
Material and equipment
Table 39: Material and equipment
Name Type Quantity GTIN
Optical connector
cleaner
Recommended:
Fujikura
OCC-A Ultra
1 4251140910209
Connecting a Sensor

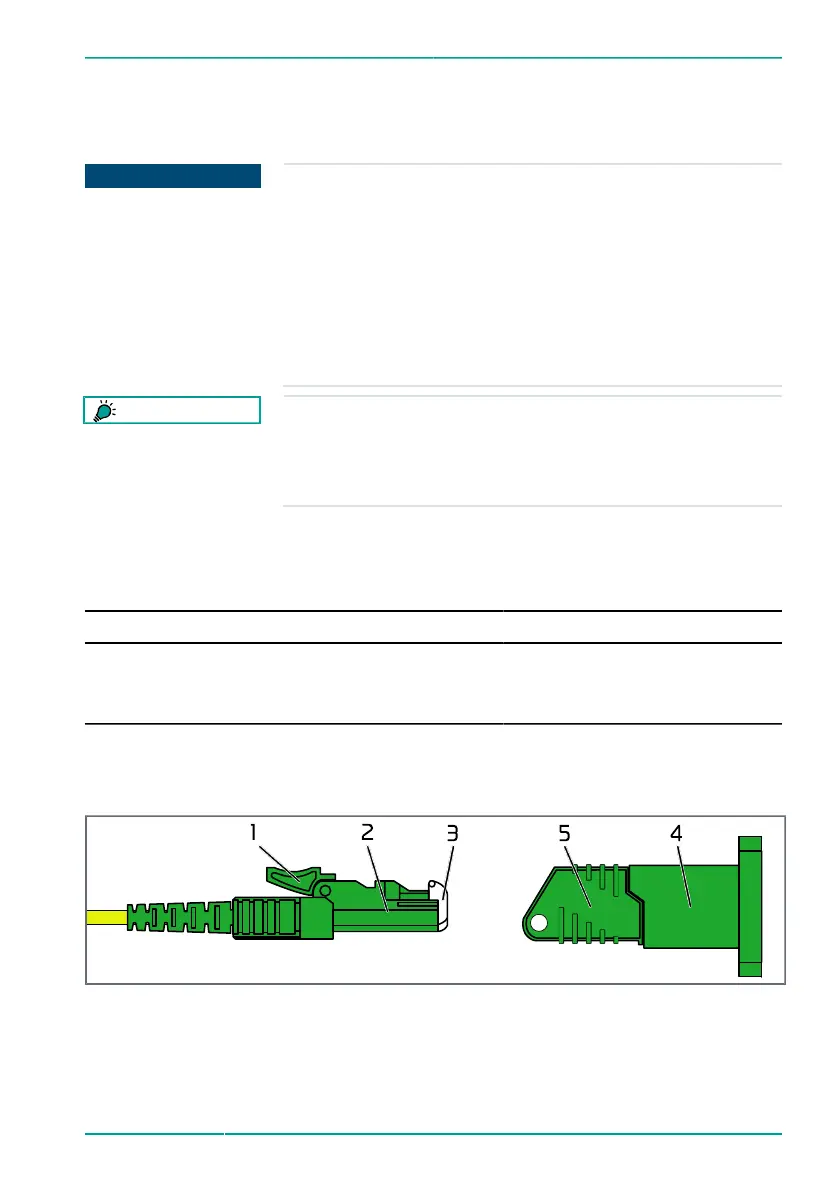

Figure 22: E-2000/APC connector and socket
1
Locking mechanism
2
Connector
3
Protective cover
4
Socket
5
Dust cap
© fos4X 2020
MDE1195_4-10_1.3.x_5.0_Blackbird
OECD_(9CH, PRN)-en-us
47 / 76
