46

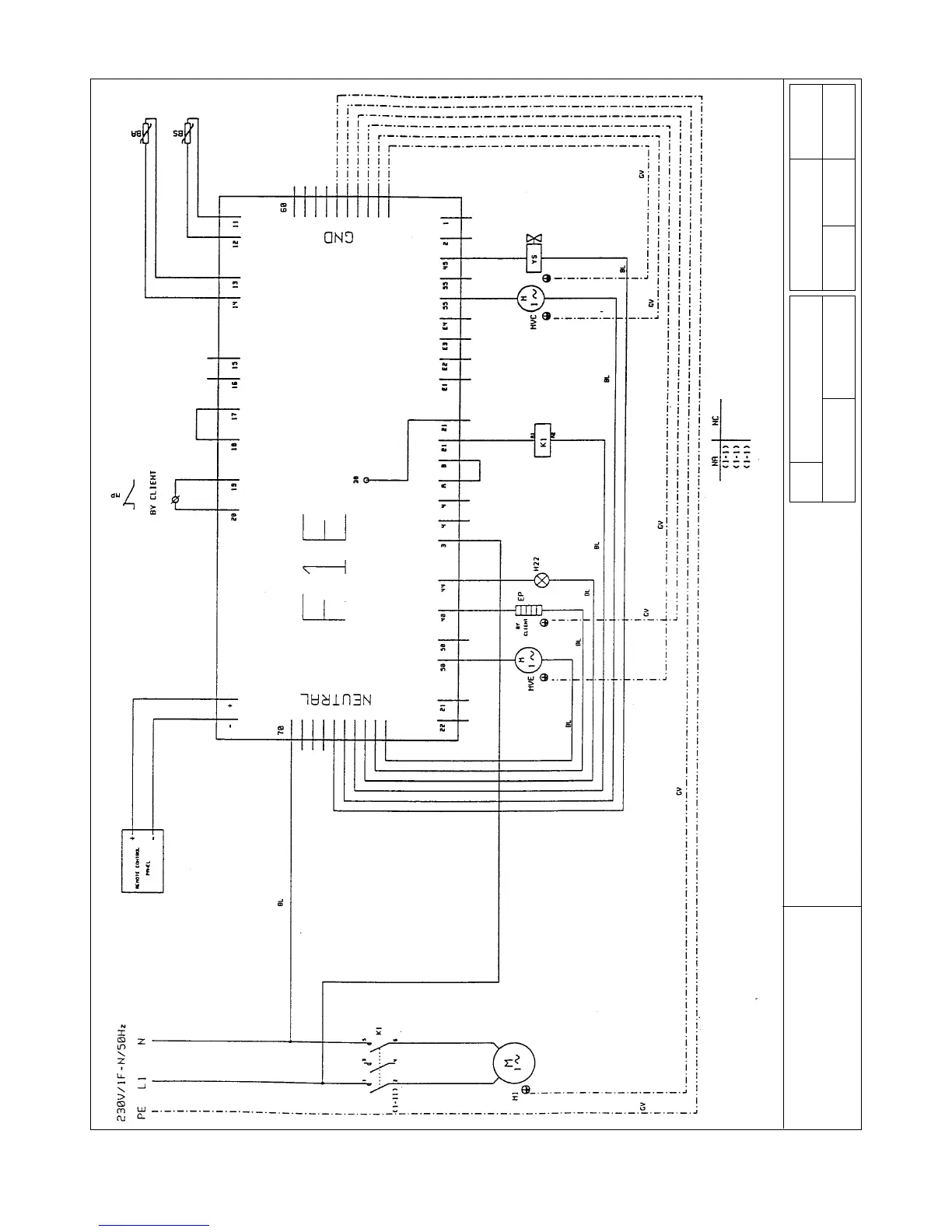

MODEL SP 2LC SP 3HC
Drawing No. Sheet No. 81801L 1 of 1
Drawn By Approved Date Sonchl Martinelli 81801L
Rev No. Date: Approved
HVC Condenser Fan Motor K1 Compressor Contactor BS Defrost Probe HVE Evaporator Fan Motor H22 Internal Light BA Air Probe M1 Compressor EP Door Frame Heater YS Hot Gas Solenoid Valve MP Door Switch (if fitted)
