Four winns FUNSHIP - Page 174

CLARION STEREO ADAPTER
HARNESS ASSEMBLY
41
MANUFACTURER
AMP
AMP
AMP
CLARION
FUNCTION
41
57
STEREO ADAPTOR
CLARION STEREO
DESCRIPTION
PIN,UMNL,18-14
PIN,UMNL,24-18
RECEPT,UMNL,12 CKT
CLARION STEREO PLUG ASSY
PART NUMBER
028-0390
028-1036
028-0445
027-2441
ITEM
J04
S01
FOUR WINNS PARTS LIST
QUANTITY
3
8
1
1
NOTES:
1. TERMINATIONS PER FOUR WINNS SPEC. 125-60153
XX
EN #
-
-
STEREO RET 1
STEREO 2
STEREO SWITCH 3
LEFT FRONT SPKR 4
LEFT FRONT SPKR RET 5
LEFT REAR SPKR 6
LEFT REAR SPKR RET 7
RIGHT FRONT SPKR 8
RIGHT FRONT SPKR RET 9
RIGHT REAR SPKR 10
RIGHT REAR SPKR RET 11
AMP SWITCH 12
BLK
YEL
RED
WHT
WHT/BLK
GRN
GRN/BLK
GRA
GRA/BLK
PUR
PUR/BLK
BLU/WHT
J04
STEREO
12P
S01

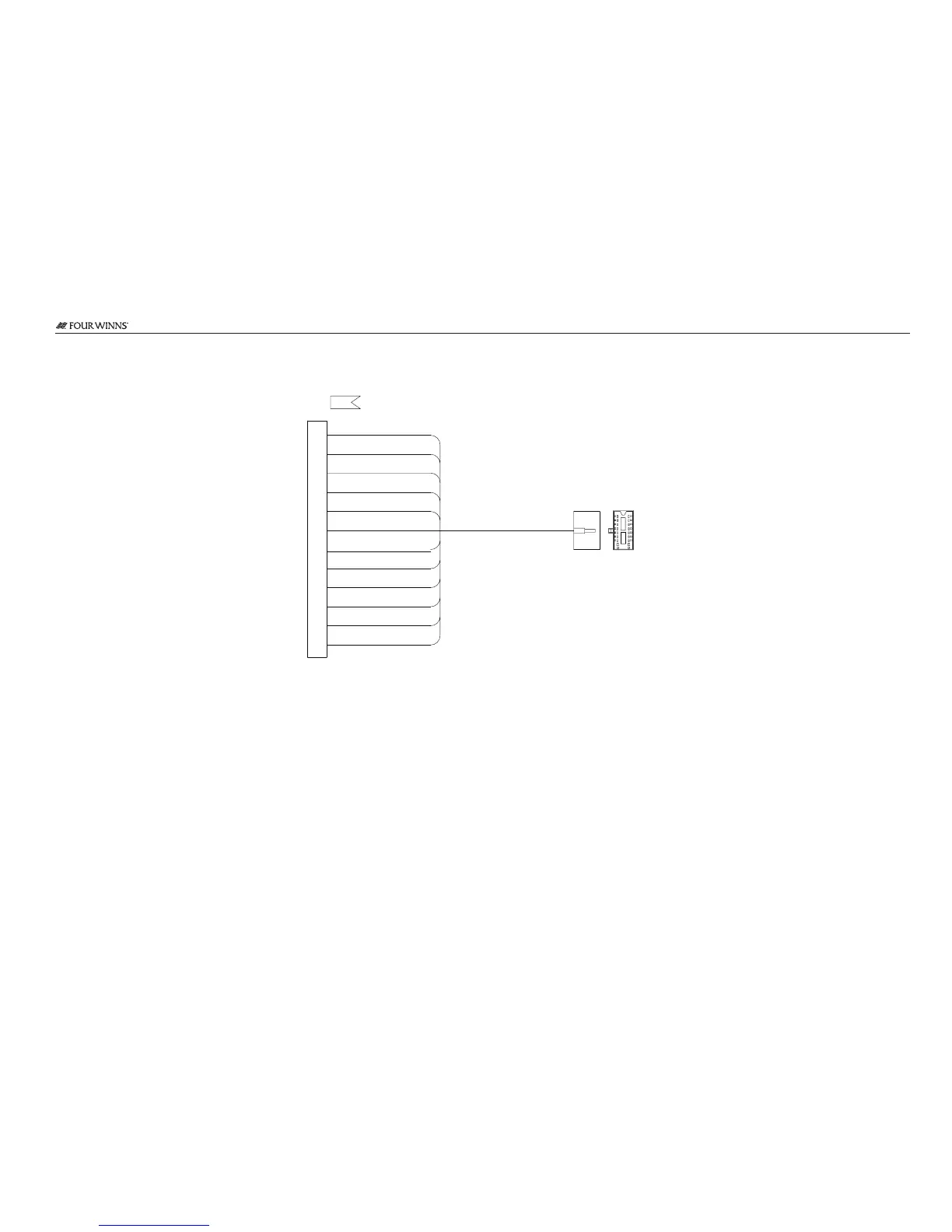

CLARION STEREO HARNESS
DESCRIPTION
REVISIONS
DWG NUMBER:
DATE:APPROVED:
SCALE:
DATE:CHECKED:
SHEET: OF:DATE:DRAWN:
SIZE:
11NTS4/28/03
TITLE:
TOLERANCES:
1/16
+/-
FRACT
.062 PLCS +/-
.5˚ANG +/-
.0203 PLCS +/-
CADILLAC,MI 49601
905 FRISBIE STREET
616-779-2331
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED.
DISCLOSURE OF THIS INFORMATION WITHOUT PERMISSION OF FOUR WINNS IS PROHIBITED
HARNESS ASSEMBLY,
CLARION STEREO ADAPTOR
A
REVISED
BY
DATE
REVISION
LEVEL
PRODUCTION RELEASE
-
JJW
19729
027-2442
