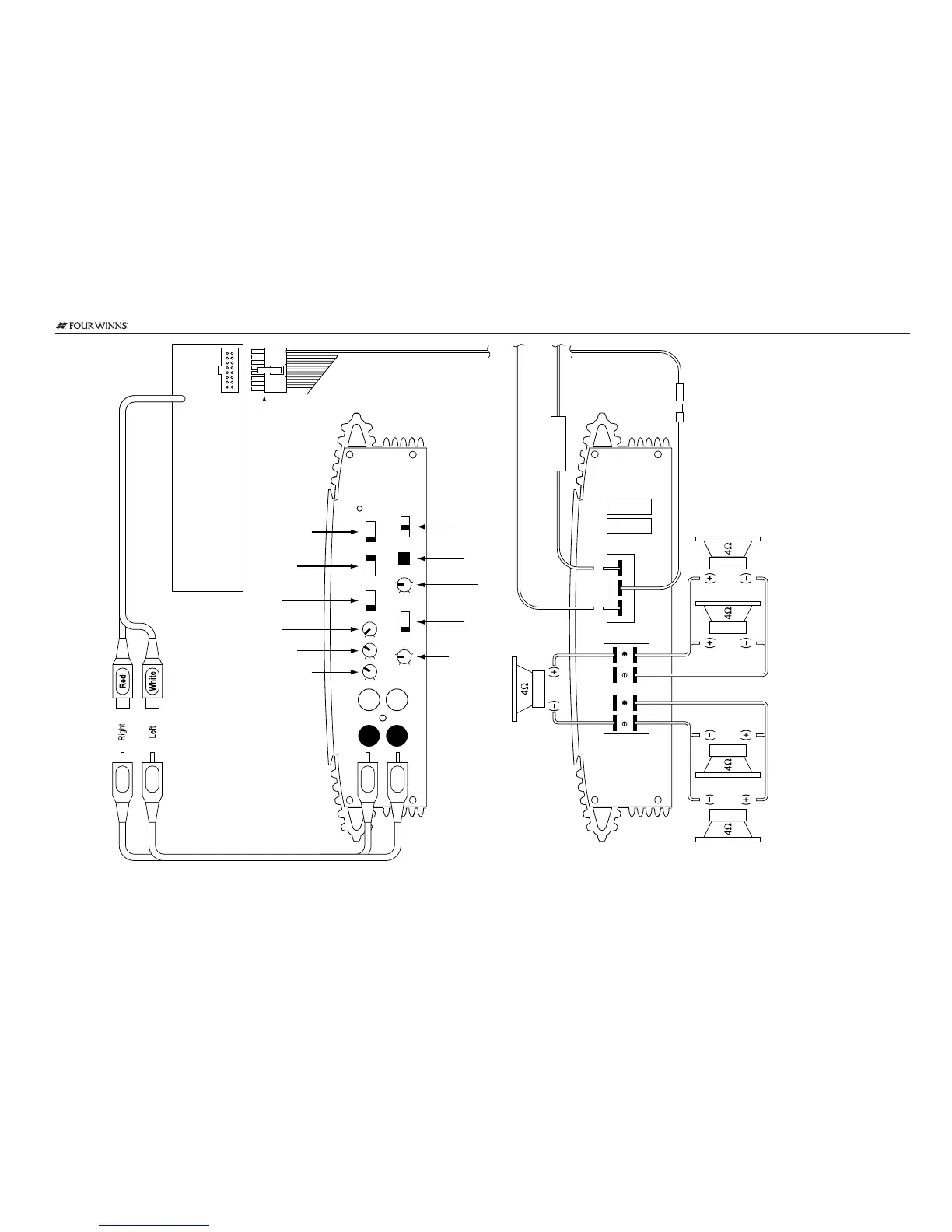

APX480M
Remote Turn-On: (Blue/White)
XMD3/M335/M235
RCA Outputs: Refer to specific source unit model for proper connection configuration.
RCA Cables: Connect to Power Amplifier's CH1 & CH2 RCA Inputs
CH1/2 GAIN: 2V (1 o'clock)
CH3/4 GAIN: 2V (1 o'clock)
BASS EXTENDER: Adjust to desired level
Left Speakers Right Speakers
Source Unit Wiring Harness
Subwoofer
APX480M
CH1/2 FREQ: 100Hz (12 o'clock)
CH1/2 FILTER: LP
SOURCE SELECT: 2CH/BASS
CH1/2: MONO
CH3/4: STEREO
CH3/4 FREQ: 100Hz (12 o'clock)
RANGE: X1 (Out)
CH3/4 FILTER: HP
Remote Turn-On: (Blue/White)
25A
FUSE
25A
FUSE
CH1 CH2
CH3 CH4
GROUND BATTERYREMOTE
Ground: Connect directly to negative 12VDC terminal of battery or distribution block.
Power: Connect directly to positive 12VDC terminal of battery or distribution block.
(not supplied)
50A Fuse
CH1 CH3
CH4CH2
To Next Page
