Owner’s Manual Page 92Upholstery - Section N
After rotating, lock seat in place securely.
Sudden acceleration with seat unlocked could
cause loss of balance and possible injury.
Pull lever to
up position
to rotate seat.
Friction
adjustment
knob.
Once in desired position
push lever down if
necessary to lock seat
in place.

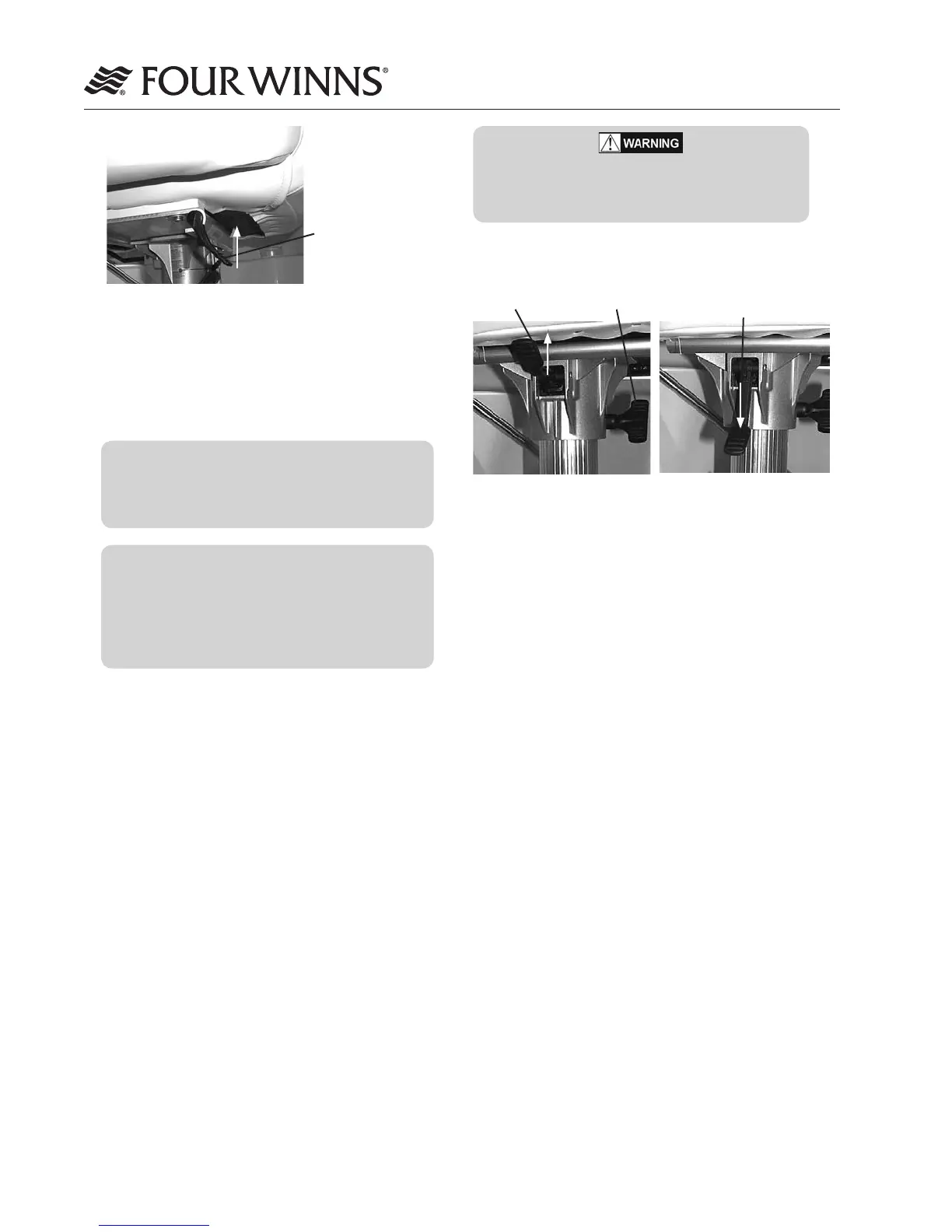

Figure N-6:
Swivel Position
Figure N-7:
Locking Position
To return the bucket seat to the bow facing position:
1. Slide the seat completely forward or rearward (as
needed to clear coaming/side pad or seat cushion)
by using the lever located underneath the seat.
See Figure N-5.
2. Locate the lever on the right or left side of the
bucket slider mechanism and lift upward to release
the pin from the pedestal. (Note: Location of the
lever will depend on the bucket seat involved.)
This will allow you to rotate the seat. See Figure
N-6.
3. Rotate the bucket seat inboard until it is in the
forward facing position. Once in position, push
down on locking lever (if necessary) to lock seat
in position. See Figure N-7. In addition, DO NOT
USE FORCE to rotate the chair.
4. Position the seat forward or aft according to the
needs of the individual by using the lever located
underneath the seat. See Figure N-5.
5. Tilt the steering wheel (if applicable) to the desired
position using the tilt lever knob on the steering
column.
Lift adjustment
lever up to move
forward and back.
Figure N-5: Bucket Seat Slider
Thebucketseatalsocomesstandardwithip-up
bolster.Bysimplyippingupthebolsterthedriveris
able to sit higher in the seat. This is designed to give
thedrivergreaterexibility,increasedvisibility,and
riding comfort.
NOTICE
The bucket seats may or may not rotate
completely 180
o
. The amount and direction
of swivel available depends on the model.
NOTICE
When rotating the bucket seat, damage to
seat, steering wheel (if applicable), and/or
coaming pad may result if attempting to rotate
in the wrong direction or over-rotating.
DO NOT USE FORCE to rotate the chair.
To rotate the bucket seat to face the aft position:
1. Tilt the steering wheel (if applicable) as far forward
as possible.
2. Slide the seat completely forward or rearward (as
needed to clear coaming/side pad or seat cushion)
by using the lever located underneath the seat.
See Figure N-5.
3. Locate the lever on the right or left side of the
bucket slider mechanism and lift upward to release
the pin from the pedestal. (Note: Location of the le-
ver will depend on the bucket seat involved.) This
will allow you to rotate the seat. See Figure N-6.
4. Rotate the bucket seat inboard (towards the center
of the boat) until it faces as far aft as possible or
desired. Once in position, push down on locking
lever (if necessary) to lock seat in position. See
Figure N-7.
