F3D3 Series Service Manual Parts Replacement / Section 2.9
Questions? Call Franke Technical Support Group For Your Area. Copyright 2012 Franke, Inc. All rights reserved.
2.9 Product Door & Bucket Replacement
Continued…
16) Replace insulated plastic freezer bottom.
17) From rear of unit – extend spring to the Door Rotation
Block Pin and slide end/bushing over the pin. Insert
cotter pin through hole in pin and bend cotter pin legs
around pin. Make sure bronze spring bushing remains
in place.
18) Re-hang and secure rear service access panel.
19) Plug in unit power cord to power supply.
Test Fries Dispense Doors by:
20) Turn on main power switch and press lane power touch
pad on control overlay.
21) If word: Ready is in display and ready lights are on in
basket graphic, position an empty fry basket under
hopper and press against basket bumper switch to
activate fry loading cycle.
22) If lane dispenses fries [if present] or if doors open
smoothly in an attempt to dispense fries, the unit is
working properly.
23) Return Disperser to normal operating location.

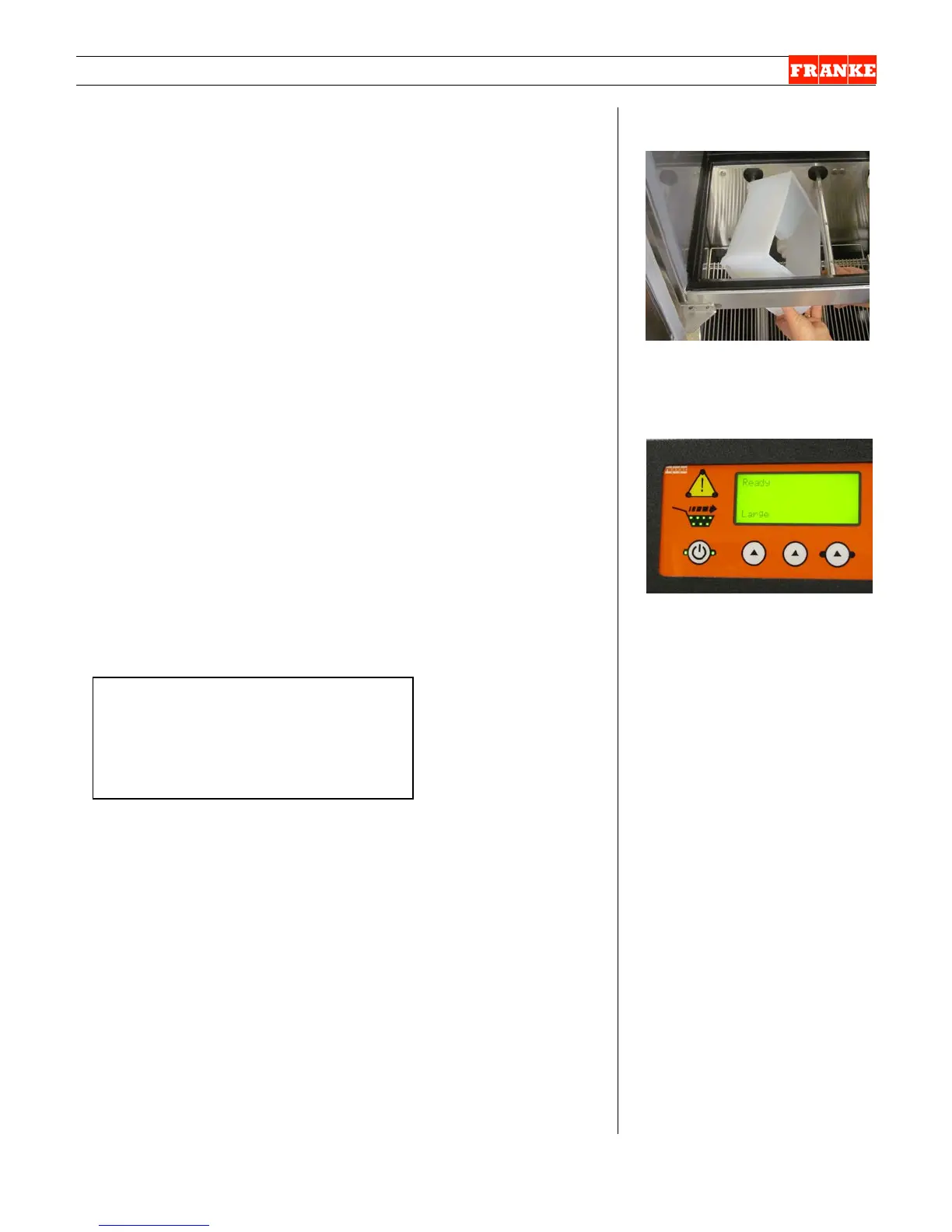

[Photo 5] To remove bucket:
Distort rubber bucket to clear
freezer front bottom channel and
pull off left door shaft.
[Photo 6] - To Test
If Ready appears on display and
green basket lights are on, place
basket in loading lane and push
against bumper switch.
Rev. 1 6/2012
Medium Phillips screwdriver
8 mm [5/16”] box wrench or socket
3 mm [1/8”] Allen/hex wrench
Needle-nose pliers
To Next Page
