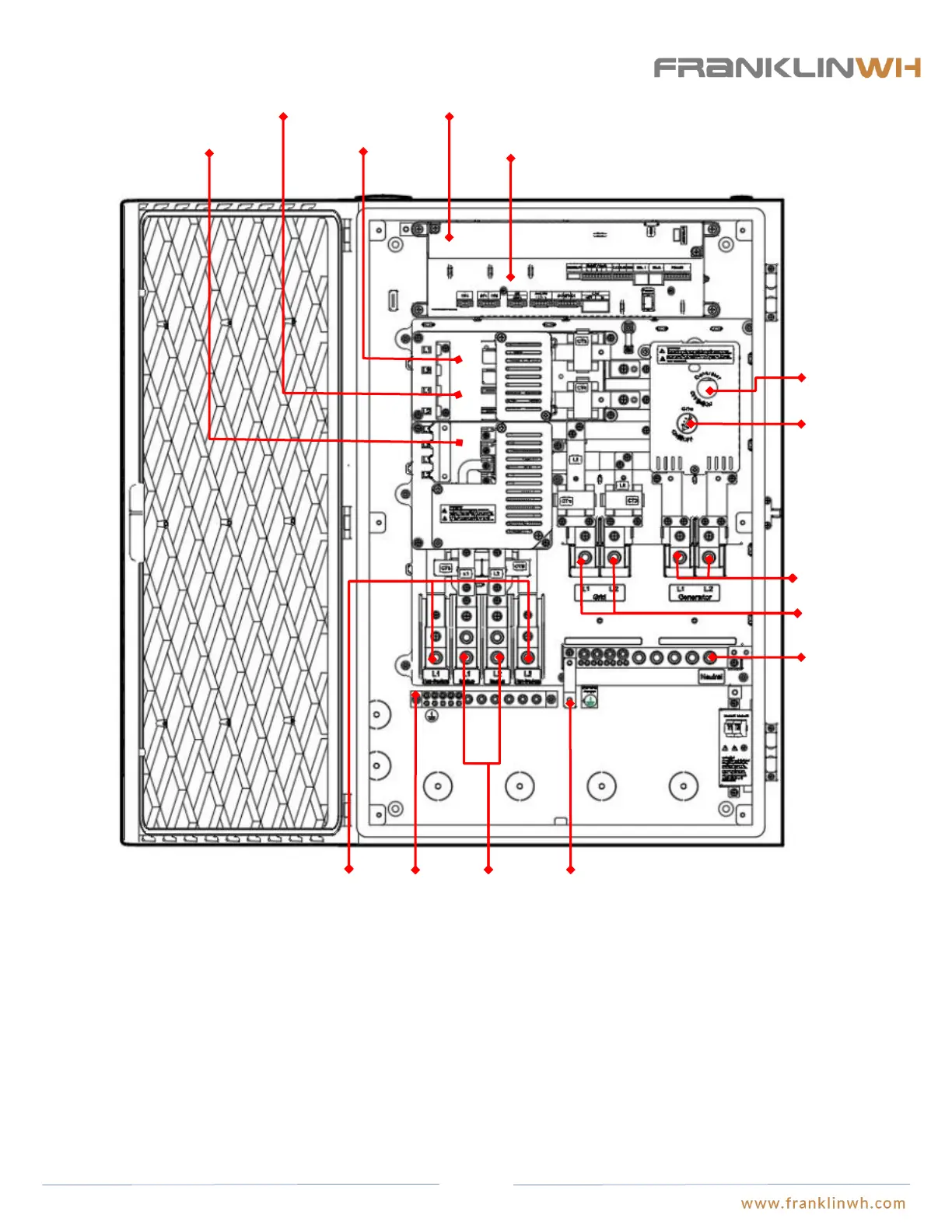

aGate
Solar switch zone
Antenna moduleaPower switch zone
EMS moduleSmart load zone
Generator terminals
Grid terminals
Earthing
bar
Non-backup load
terminals
Backup load
terminals
N-bar
Bonding
jumper
Grid relay
Generator relay
installation
zone
Purposes:
Smart load zone: Allows installation of additional switches to remotely control and operate the relays and to
control electric circuit.
aPower switch zone: Allows installation of 80A and lower rated switches to control the aPower AC circuit.
Solar switch zone: Allows installation of 80A and lower rated switches to control the Solar side circuit.
Antenna module: The 4G LTE and/or Wi-Fi telecommunication module.
EMS module: The signal processing and energy management module.
Generator relay installation zone: Optional generator relay can be installed after the hood is removed.
Grid relay: Controls the on/off status of the grid power supply.
Generator terminals: aGate mounted input terminals for the optional generator.
Grid terminals: aGate mounted input terminals connected to the input cables of grid power source.
Backup power supply load terminals: The main output terminals of aGate. Typically connected to the inputs of
backup loads.
Non-backup power supply load terminals： The output terminals of aGate. Connected to the inputs of non-
backup loads.
N bar: The junction of all N cables.
Earthing bar: The junction of all earthing cables.
Bonding jumper: The jumper to bind N bar and earthing
bar.
11
