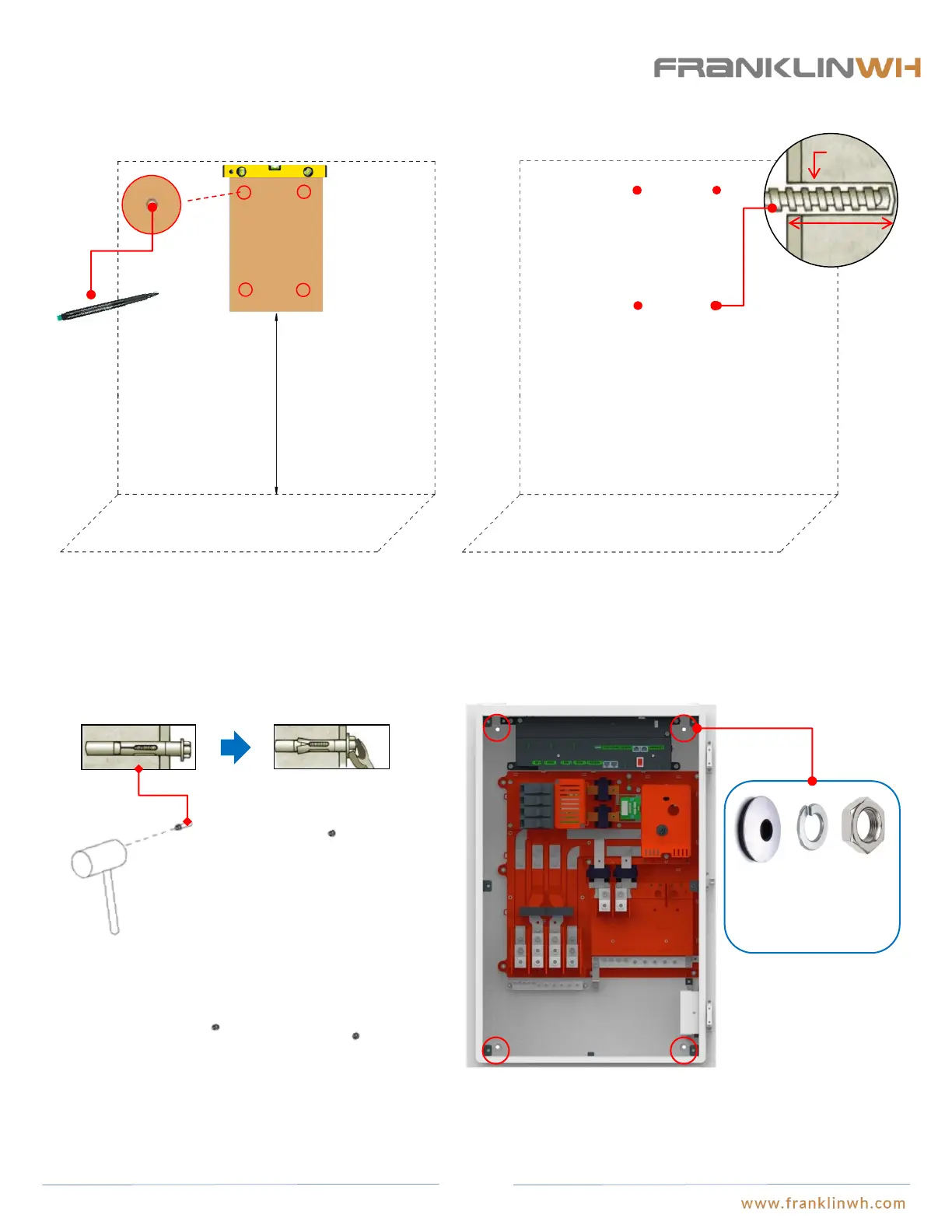

Step 4: aGate
● To install aGate on the wall, please follow the basic procedures below to install aGate on a concrete or brick wall.
Wall
Floor
Spirit level
Guide board
≤1219mm
(48 in)
1. Put the aGate guide board drill template at the
planned installation position. The recommended
installation height of aGate is ≤48‘’AFF (the installer
shall consult your local laws and building regulations
for details). Use a spirit level to adjust the levelness of
the guide board and make marks at the four holes on the
guide board.
Marker
2. Using a hammer drill and carbide tipped drill bit, drill a
hole the same diameter as the anchor diameter, and at least
1-1/2”deeper than the expected embedment. Ensure that all
fasteners are at least 1-1/2 in (38 mm) away from the edges
of masonry blocks or bricks. Clean out all debris from the
hole.
3. Use a 7/16” wrench to turn the nut in the opposite direction,
and remove the nut, spring washer, and flat washer from the
sleeve anchor .
4. Fasten aGate to the wall using the fittings of aGate: 1/4”
water-tight washer, spring washer and nuts, and check that the
tightening torque is 4.63 lbf.ft or 56 in.-lbs.
1/4”
water-
tight
washer
1/4”
spring
washer
1/4”
nut
Wall installation of aGate
1/2 in
≥1-1/2in
35
