FR200H Special Purpose Inverters for Multi-pumps Constant Pressure Water Supply
- 23 -
Myriabit: No.5 pump status(same
with unit)
H00.12
Timing rotate or not
0:fixed order
1:start first stop first
2:timing rotate
0
×
H00.13
Gap of timing rotate
1～60000Min
240Min
×
H00.14
Inverter action selection
when adding or
reducing pump in
single-variable pump
mode
0:Inverter stop
0
×
1:Inverter not stop
3.2 H00 group function code detailed explanation
H00.00
Special purpose
inverters function enable
0: Invalid
0
×
1: Valid
0: Invalid
Standard type
1: Valid
Special purpose type for multi-pumps constant water supply, H00 group parameters valid
H00.01
Work mode selection
0: Fixed variable-frequency
pump mode
0
×
1: 2 variable-frequency pumps
cycle mode
0: Fixed variable-frequency pump mode
Inverter 3-phase output control a certain pump as fixed variable-frequency pump, other pumps
power-frequency run/stop controlled by programmable D0 output. (max control 1*fixed
variable-frequency pump+4*power-frequency pumps), power-frequency pump conform to “start first
stop first”. Under this mode, 4*power-frequency pumps corresponding to No.2~5 pumps, according to
the specific site situation requirements for the numbers of power-frequency pumps, which can be
achieved by set multi-functions input (51~54) and H00.11, for more details please refer to H00.11
instructions. Wirings refer to Figure 3-1.
DI1
DI2
DI3
DI4
DI6
COM
FR200H
DI5
Q3
Q4
Default Value
Q2
R
S
T
M4
M3
M2
M1
10V
AI1
AI2
GND
Given
Feedback
U
V
W
KM1
KM2
KM3
FWD
REV
Q5
DI7
R1A
R1C
R2A
R2C
220V
KM1
KM2
KM3
KM4
R1A
R1C
R2A
R2C
KA1
KA2
3-phase power supply
24V
PLC
KA1
KA2
Y1
Y2
24V
M5
KM4

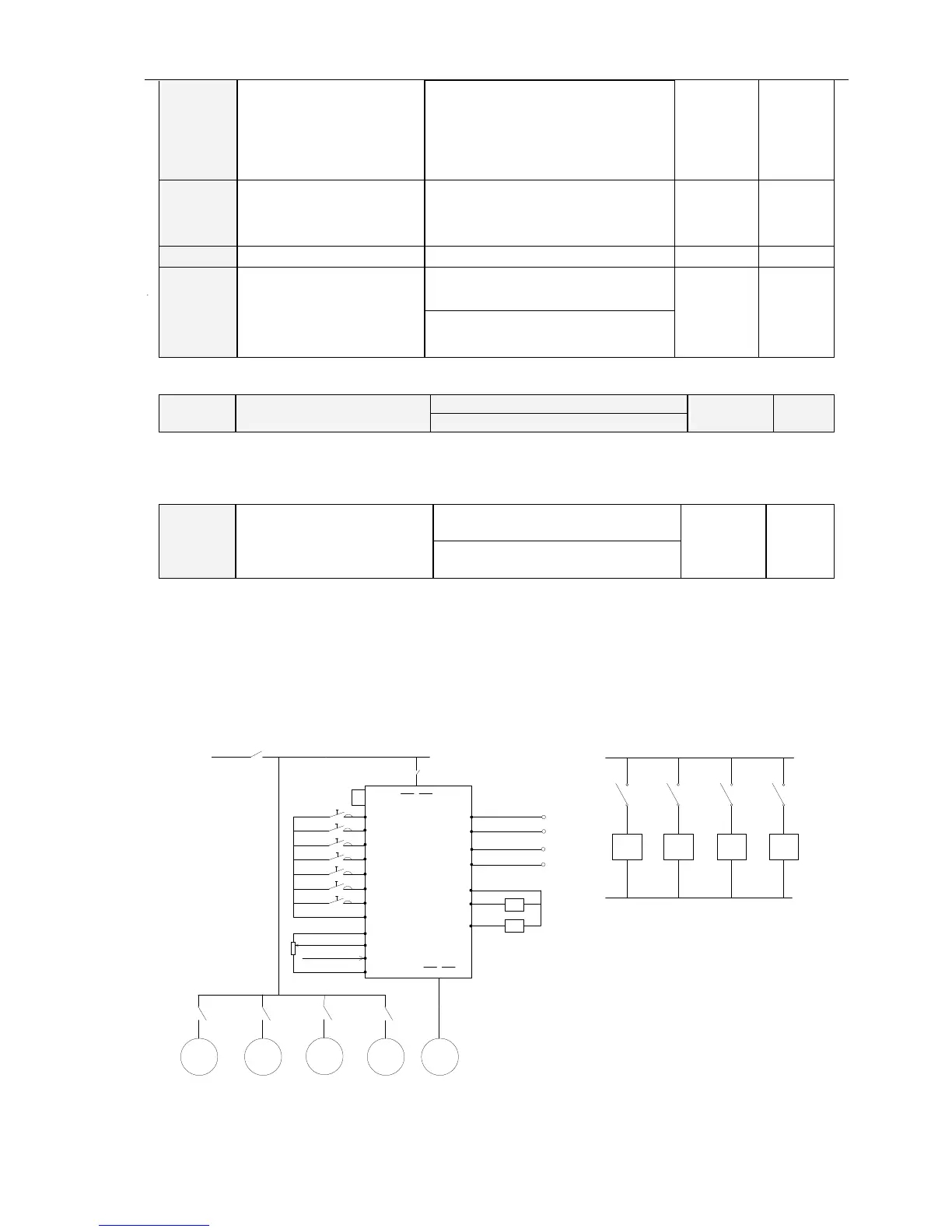

Figure 3-1 Fixed Variable-frequency Pumps Mode Wirings
