Frecon FR200H - B:4～18.5 Kw Main Circuit Terminals; C: 22～30 Kw Main Circuit Terminals; D: 45～90 Kw Main Circuit Terminals

FR200H Special Purpose Inverters for Multi-pumps Constant Pressure Water Supply
- 5 -

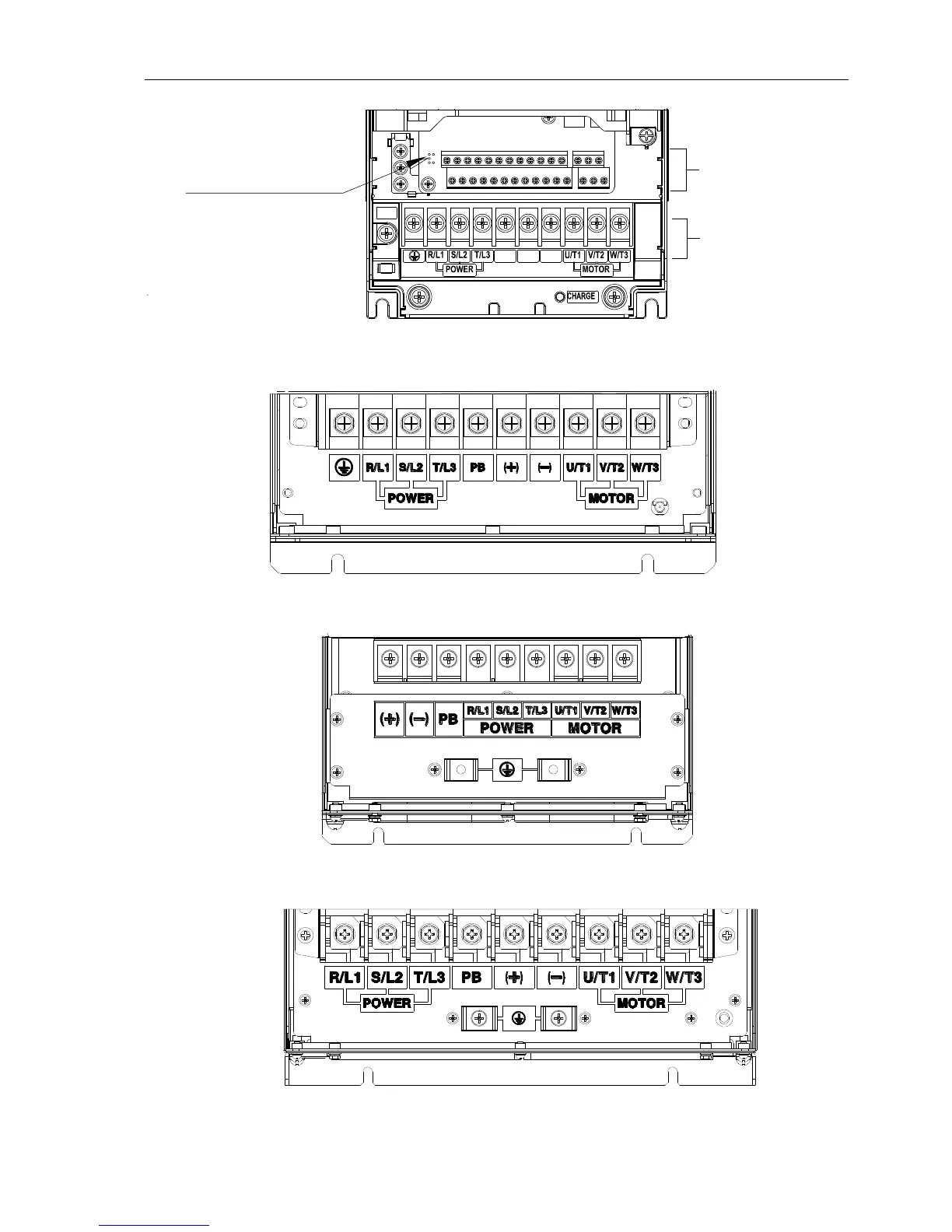

b:4～18.5kW Main Circuit Terminals
Control circuit
terminals
Main circuit
terminals
Upload and
download interfaces
PB
(+)
(-)
RFI
Fig.1-4 4.0～18.5kW Schematic of main circuit terminals
c: 22～30kW Main Circuit Terminals
Solution 1:
Fig.1-5 22～37kW Main Circuit Terminals（Solution 1）Schematic
Solution 2:
Fig.1-6 22～37kW Main Circuit Terminals（Solution 2）Schematic
d: 45～90kW Main Circuit Terminals
Fig.1-7 45～90kW Main Circuit TerminalsSchematic
