FR200H Special Purpose Inverters for Multi-pumps Constant Pressure Water Supply
- 4 -
1.2 Information of FR200H Product Model
Table 1-1FR200HProduct model and technical data
Model No.
Power
capacity
KVA
Rated
Input current
A
Rated output
current
A
Applicable motor
kW HP
3-Phase: 380V，50/60Hz Range: -15%～+30%
FR200H-4T-0.7G/1.5PB
1.5
3.4
2.5
0.75
1
FR200H-4T-1.5G/2.2PB
3
5.0
4.2
1.5
2
FR200H-4T-2.2GB
4
5.8
5.5
2.2
3
FR200H-4T-4.0G/5.5PB
6
11
9.5
3.7、4
5
FR200H-4T-5.5G/7.5PB
8.9
14.6
13
5.5
7.5
FR200H-4T-7.5G/011PB
11
20.5
17
7.5
10
FR200H-4T-011G/015PB
17
26
25
11
15
FR200H-4T-015G/018PB
21
35
32
15
20
FR200H-4T-018G/022PB
24
38.5
37
18.5
25
FR200H-4T-022G/030PB
30
46.5
45
22
30
FR200H-4T-030G/037PB
40
62
60
30
40
FR200H-4T-037G/045P
57
76
75
37
50
FR200H-4T-037G/045PB
FR200H-4T-045G/055P
69
92
91
45
60
FR200H-4T-045G/055PB
FR200H-4T-055G/075P
85
113
112
55
70
FR200H-4T-055G/075PB
FR200H-4T-075G/090P
114
157
150
75
100
FR200H-4T-075G/090PB
FR200H-4T-090G/110P
134
160*
176
90
125
FR200H-4T-110G/132P
160
190*
210
110
150
FR200H-4T-132G/160P
192
232*
253
132
175
FR200H-4T-160G/185P
231
282*
304
160
210
FR200H-4T-185G/200P
240
326*
350
185
250
FR200H-4T-200G/220P
250
352*
377
200
260
FR200H-4T-220G/250P
280
385*
426
220
300
FR200H-4T-250G/280P
355
437*
470
250
330
FR200H-4T-280G/315P
396
491*
520
280
370
FR200H-4T-315G/355P
445
580*
600
315
420
FR200H-4T-355G/400P
500
624*
650
355
470
FR200H-4T-400G/450P
565
690*
725
400
530
FR200H-4T-450G/500P
623
765*
800
450
600

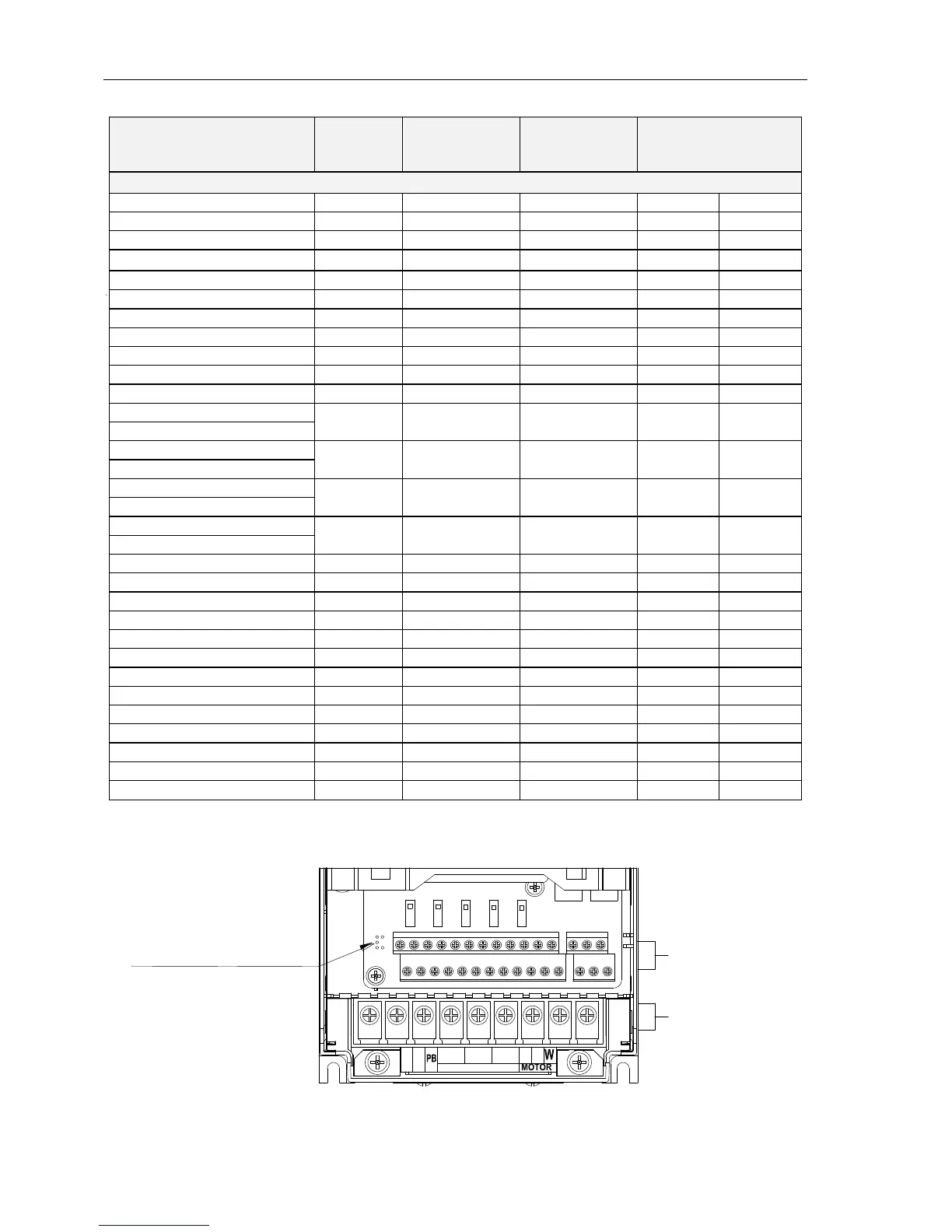

1.3 Terminal Configuration
1.3.1 Main Circuit Terminals
a: 1.5～2.2kWMain Circuit Terminals
(+)
(-)
R
S
T
U
V
POWER
Control circuit
terminals
Main circuit
terminals
Upload and
download interfaces
Fig.1-3 1.5～2.2kW Schematic of main circuit terminals
