COMPONENTS TESTING

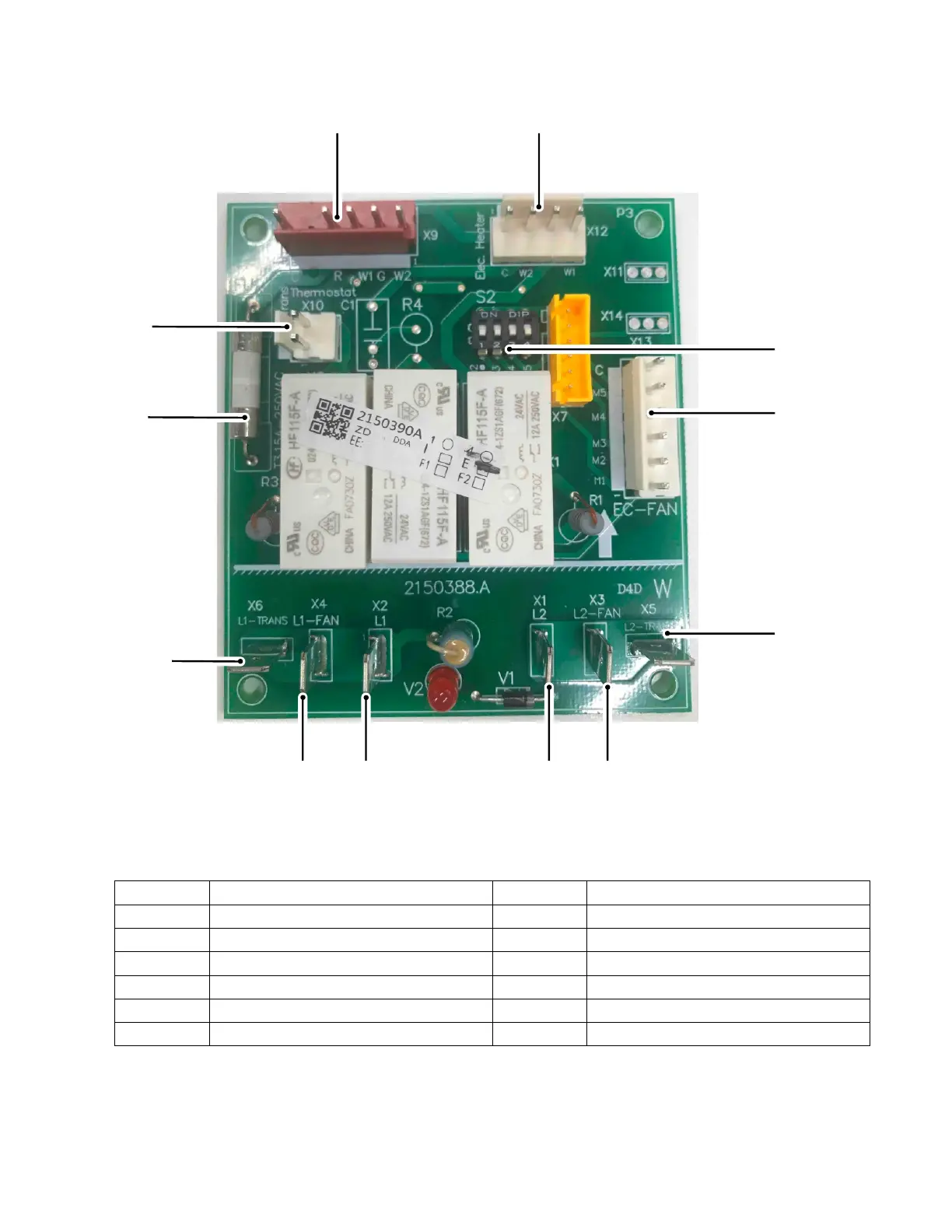

Indoor Unit Logic PCB
NO. Description NO. Description
1 Thermostat
8
L2 for Fan Motor
2
9
AC Power L2
3
10
AC Power L1
4
Electrical Heat Kit
11
L1 for Fan Motor
5
DIP Switch for Blower Speed
12
L1 for Transformer
6
Fan Motor Control
Fuse
L2 for Transformer
AC 24V from Transformer
7
1 2
3
4
12
11
10
5
68 79
Figure 610 (IDU Logic PCB)
