TROUBLESHOOTING
Test Refrigeration System-Heating Mode
See ----- Tube defrost.
Feel ----- The difference between tube’s temperature.
Test ----- Test pressure.
Cooling mode
Check superheat
target and actual
using parameter coed
P20 and P22
The pressure on the
high side.
The pressure on the
low side.
Recharge refrigerant
after air purging with
the vacuum
pump. Is the low
pressure normal
over again?
Air remains at the
refrigerant system.
yes
The system needs
refrigerant. Add
refrigerant. Does the
low pressure rise ?
NO
Recharge
refrigerant.
yes
The refrigerant system
is blocked. Please check
location of
freezing end.
Unsolder the suspected
clogged component and blow
out with nitrogen.
Check service valve and
4-way valve. Look for end
of freezing.
If the pressure is
close to static
pressure?
NO
NO
4-way valve collude or
compressor exhaust very
ebb.
yes
NO
yes
TEST SYSTEM FLOW:
Conditions: Compressor is running.
ThThe air condition should be installed in good ventilation.
Tool: Pressure Gauge Technique: ① see ② feel ③ test
Heating mode
Test system
pressure. Is the high
pressure normal at
service part ?
The pressure on the
high side.
The pressure on the
low side.
Recharge refrigerant
after air purging with
the vacuum
pump. Is the high
pressure normal over
again?
Air remains at the
refrigerant system.
yes
The system needs
refrigerant. add
refrigerant. Does the
high pressure rise in
heating mode?
NO
Recharge refrigerant
yes
If the pressure is close
to static pressure?
4-way valve clogged or
compressor exhaust
overload.
yes
Check heat exchanger and
4-way valve.
NO
The capillary tube is
blocked.Unsolder the
capillary tube ASS'Y. The
capillary tube1 and capillary
tube2 is blown by N
2
.
NO
Remove the back
panel."see"the
capillary tube1 and
capillary tube2. Is it
defrosting?
yes
NO

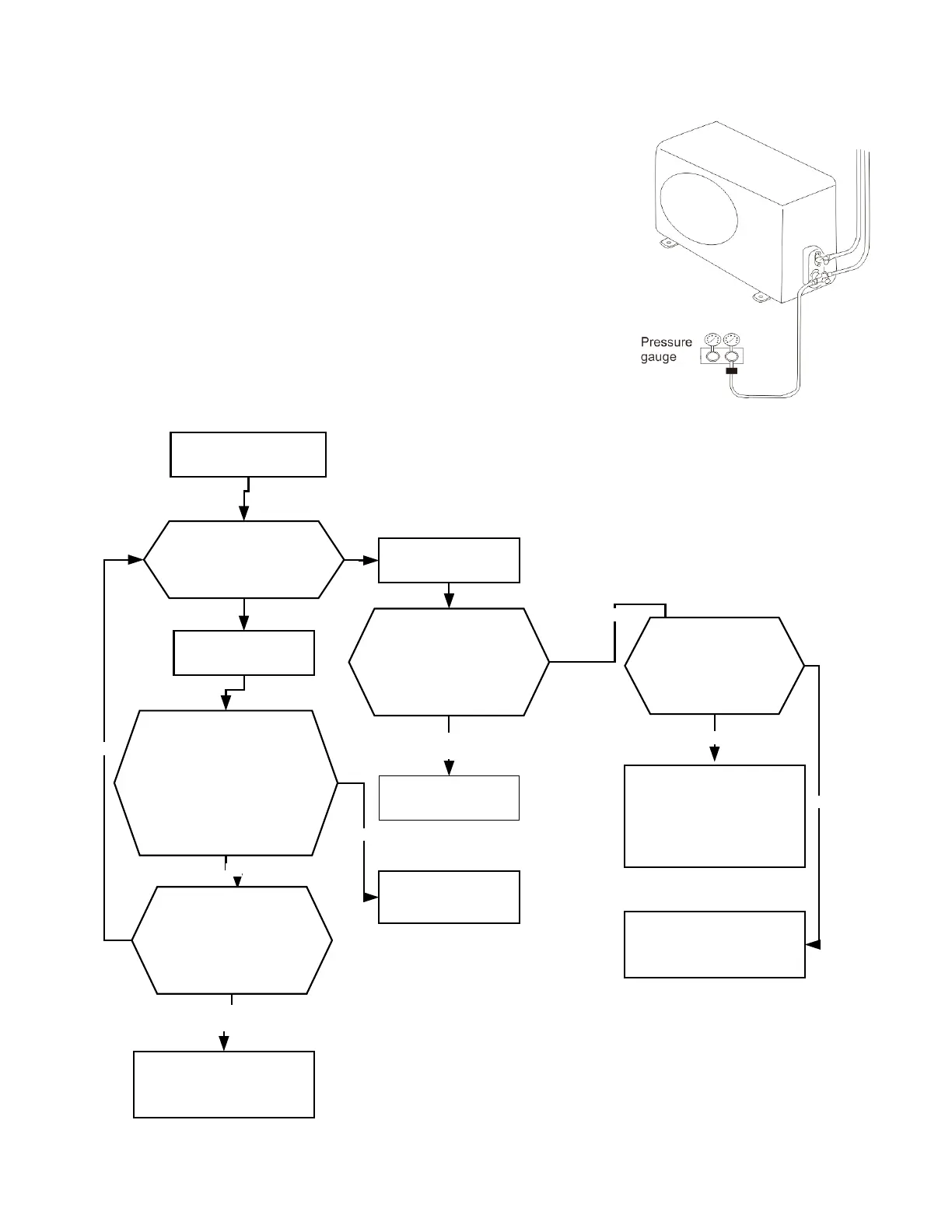

Figure 502
See ----- Tube defrost.
Feel ----- The difference between tube’s temperature.
Test ----- Test pressure.
Cooling mode
Check superheat
target and actual
using parameter coed
P20 and P22
The pressure on the
high side.
The pressure on the
low side.
Recharge refrigerant
after air purging with
the vacuum
pump. Is the low
pressure normal
over again?
Air remains at the
refrigerant system.
yes
The system needs
refrigerant. Add
refrigerant. Does the
low pressure rise ?
NO
Recharge
refrigerant.
yes
The refrigerant system
is blocked. Please check
location of
freezing end.
Unsolder the suspected
clogged component and blow
out with nitrogen.
Check service valve and
4-way valve. Look for end
of freezing.
If the pressure is
close to static
pressure?
NO
NO
4-way valve collude or
compressor exhaust very
ebb.
yes
NO
yes
TEST SYSTEM FLOW:
Conditions: Compressor is running.
ThThe air condition should be installed in good ventilation.
Tool: Pressure Gauge Technique: ① see ② feel ③ test
