COMPONENTS TESTING
Compressor
DC
INVERTER
&
R U( )
S V( )
CONTROLLER
T W( )
POWER
OVERLOAD
PROT ECTION

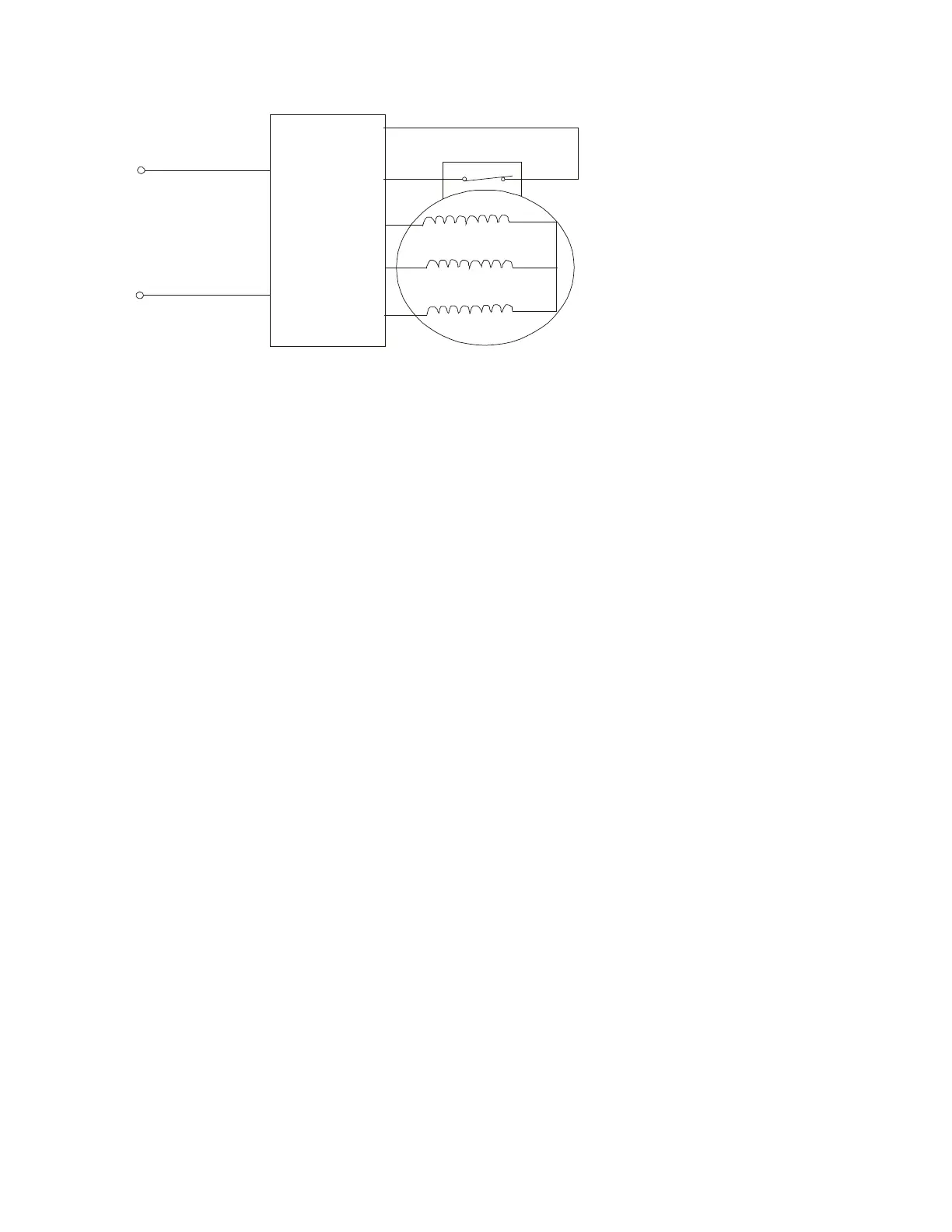

Figure 601
24K/36K : EATF250D22UMT
48K/60K: EATF400D64UMTA
Resistance Test.
The compressor is at fault if the resistance of winding is 0(short circuit)or∞ open circuit.
All 3 winding should show equal resistance.
Common signs compressor is faulty:
• Compressor motor lock.
• Discharge pressure value approaches static pressure value .
• Compressor motor winding abnormality.
Note:
• Don’t put a compressor on its side or turn over.
• Assemble the compressor quickly after removing the plugs. Prolonged exposure will damage the internal components of the
compressor
• Ensure wiring is correct before operating. Reverse operation will permanently damage the compressor.
• Electric Reactor
Common Problems:
• Sound abnormality
• Runs in a sporadic rhythm.
To Next Page
