16.DISASSEMBLY AND ASSEMBLY FOR COMPRESSOR AND MOTOR
Outdoor unit
36K
Important: Before disassembly and assembly, make sure that the power to the system has been
disconnected and verified as voltage free.

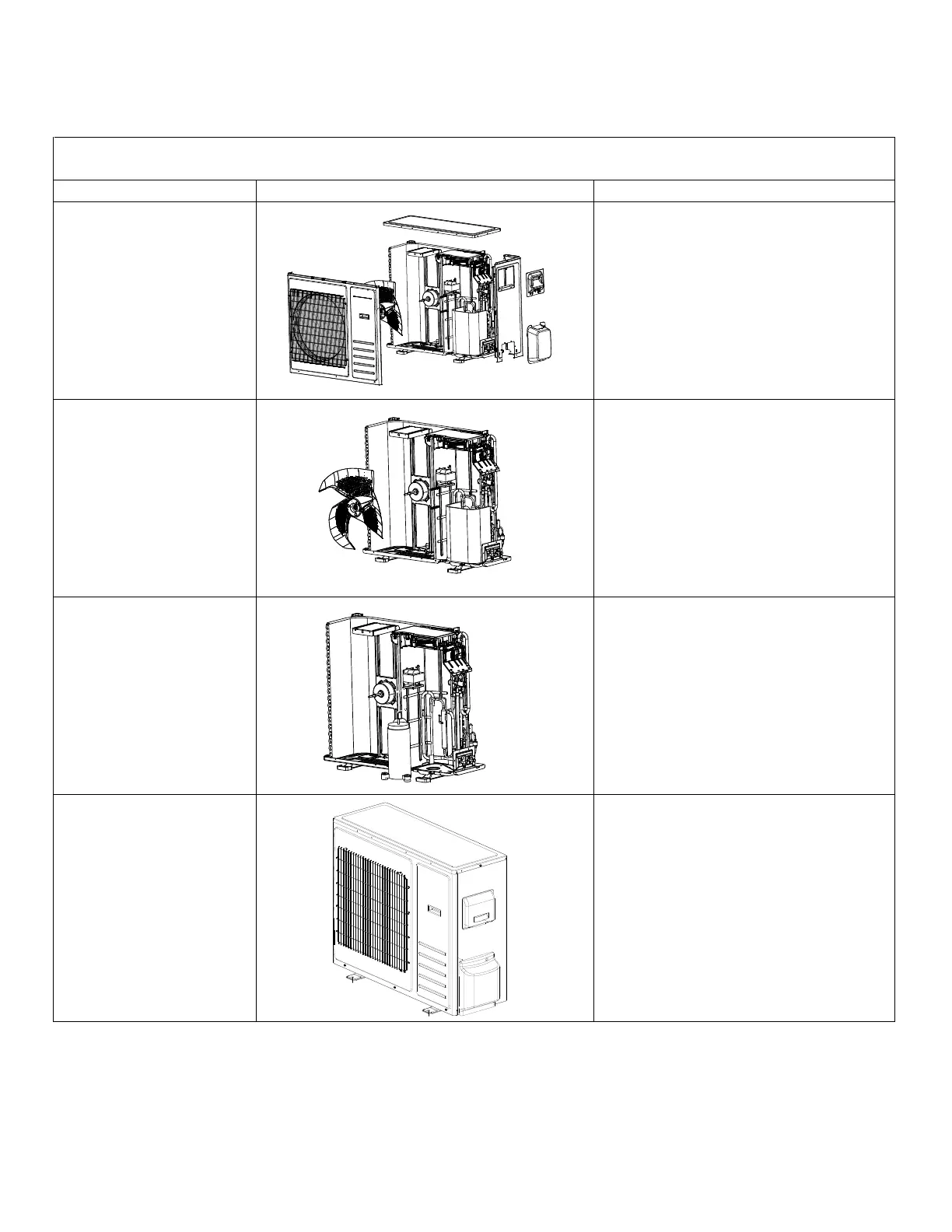

Step Illustration Handling Instruction
1. Remove external casing
1.
Remove the top cover, handle and
valve cover;
2.
Remove the outer case and right
side plate.
2. Remove motor
1.
Remove the blade nut and then
remove the blade;
2.
Remove the motor from motor
supporter.
3. Remove compressor
1.
Reclaim the refrigerant from the
entire system;
2.
Unsolder the 4-way valve piping assy
from compressor;
3.
Remove the compressor mounting
bolts;
4.
Carefully remove the compressor
from chassis.
4. Assemble unit
Assemble the unit in the
reverse order of disassembly.
72
UNIT DISASSEMBLY
36k Outdoor Unit -compressor and motor
