Wall Controller Wiring Installation
General Connection Procedure:
1. Remove 2” of the outer sheath of the
CAT6 cable including the shield and
strip the wires.
2. Insert the specied wire from the
Receiver into a slot of the
lever connector as shown in Figure 3
and close lever as shown in Figure 4.
3. Insert two specied twisted, paired
wires from the CAT6 cable into the
remaining lever connector slot as
shown in Figure 4. Each twisted,
paired wire should be inserted into
its own separate slot in the lever
connector.
4. Close the orange lever on the lever
connector as shown in Figure 5.
Make sure the levers seat properly.

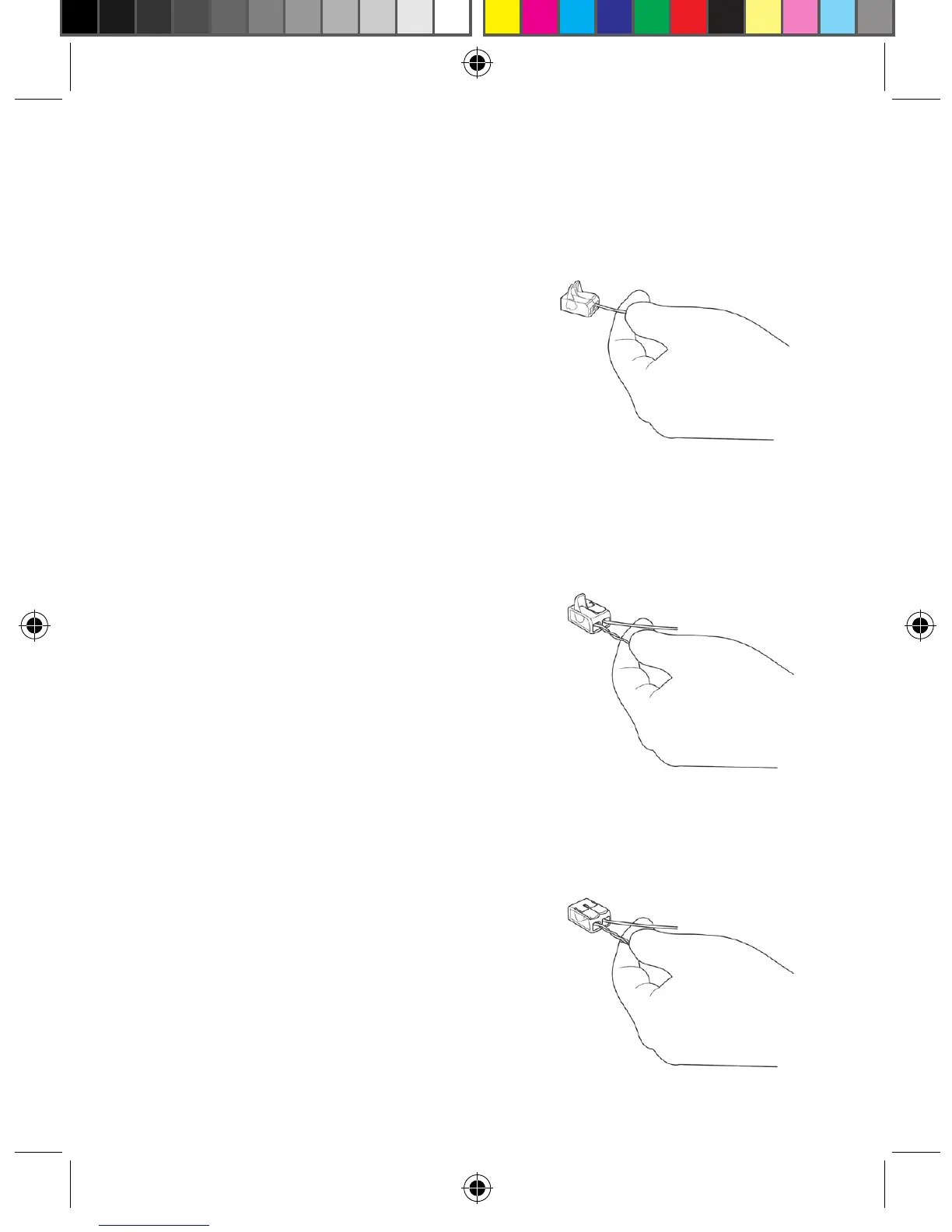

Figure 3.
Figure 4.
Figure 5.
