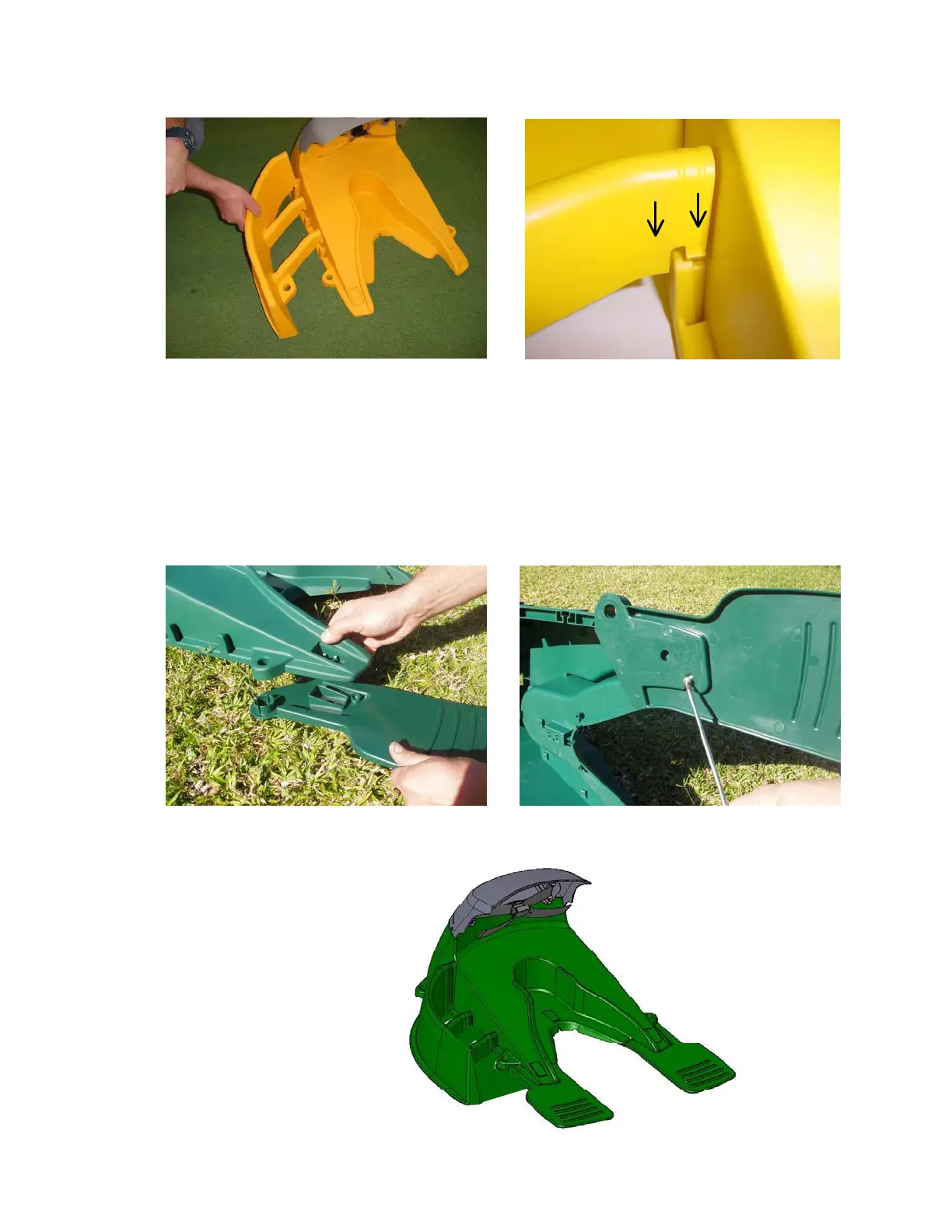

Carefully align the three slots on the fence with the three tabs on the base. See figure 1.23. Once
aligned, push the fence firmly down onto the base until it has snapped into place.
Fence
Base
Fi
ure 1.23
Fence Ali
nment
Align the left wheel support with the Charging Station Base as shown in Figure 1.24a. Once
aligned, push the base firmly down until it has snapped into place.
Flip the base and the support while holding them together and insert the screw provided at the
hole in the support, as shown in Figure 1.24b. Lightly tighten with a Phillips screwdriver.
Repeat the two steps above to assemble the Charging Station right wheel support – see Figure
1.24c
Figure 1.24b –
Screw tightening
Figure 1.24a –
Wheel support alignment
Figure 1.24c –
Wheel support assembly
Right
Left
23
