Insert the Power Pack fuse into the
fuse holder. The fuse can be inserted
in either direction
Contacts
Bumpers with touch
sensitive sensors
Manual Controller
Power Pac
k
Operatin
g
Lamp
Chapter 2
Preparing The RoboMower
®
2.1 Inserting Power Pack Fuse
Your RoboMower is shipped with the Power Pack fuse removed and it will not operate without it. The
fuse is contained in a small plastic bag attached to the top of the Power Pack. Remove the Power
Pack from the RoboMower and insert the fuse. The fuse can be inserted in either direction. See
Figure 2.2
Carefully lower the Power Pack into the RoboMower. The RoboMower now will power up (wake up).
The Power Pack is charged at the factory and has plenty of power to perform the initial setup and test
run. However, after the initial set-up process is completed the Power Pack needs to be charged for a
full 20 hours before the first operation. See Chapter 4,
Power Pack Charging & Power Management.

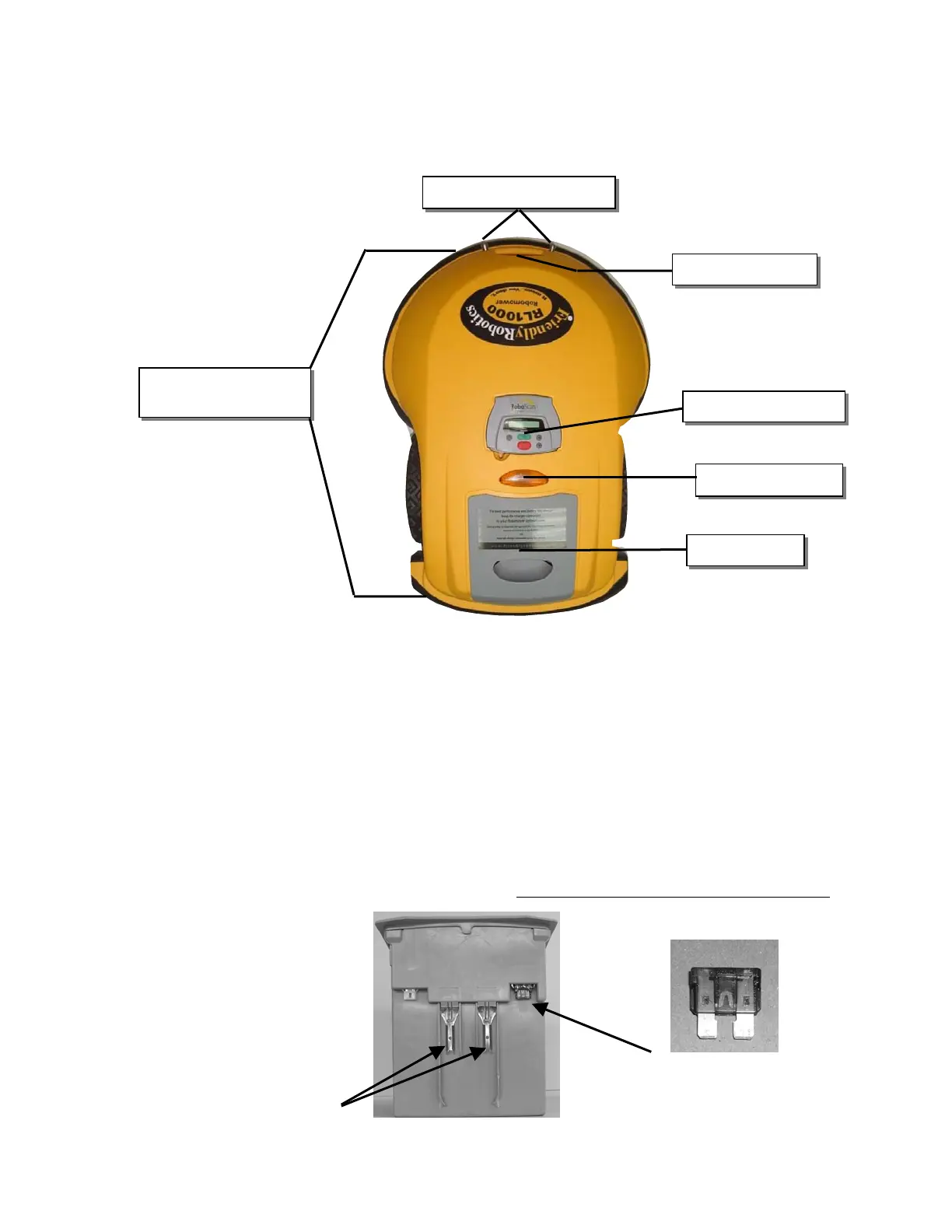

Figure 2.1 - A basic ‘what is what’ of the RoboMower
®
Char
g
in
g
Contact Pins
Carr
y
in
g
handle
Figure 2.2 – Inserting Fuse Into Power Pack
