microphone close to the audio source

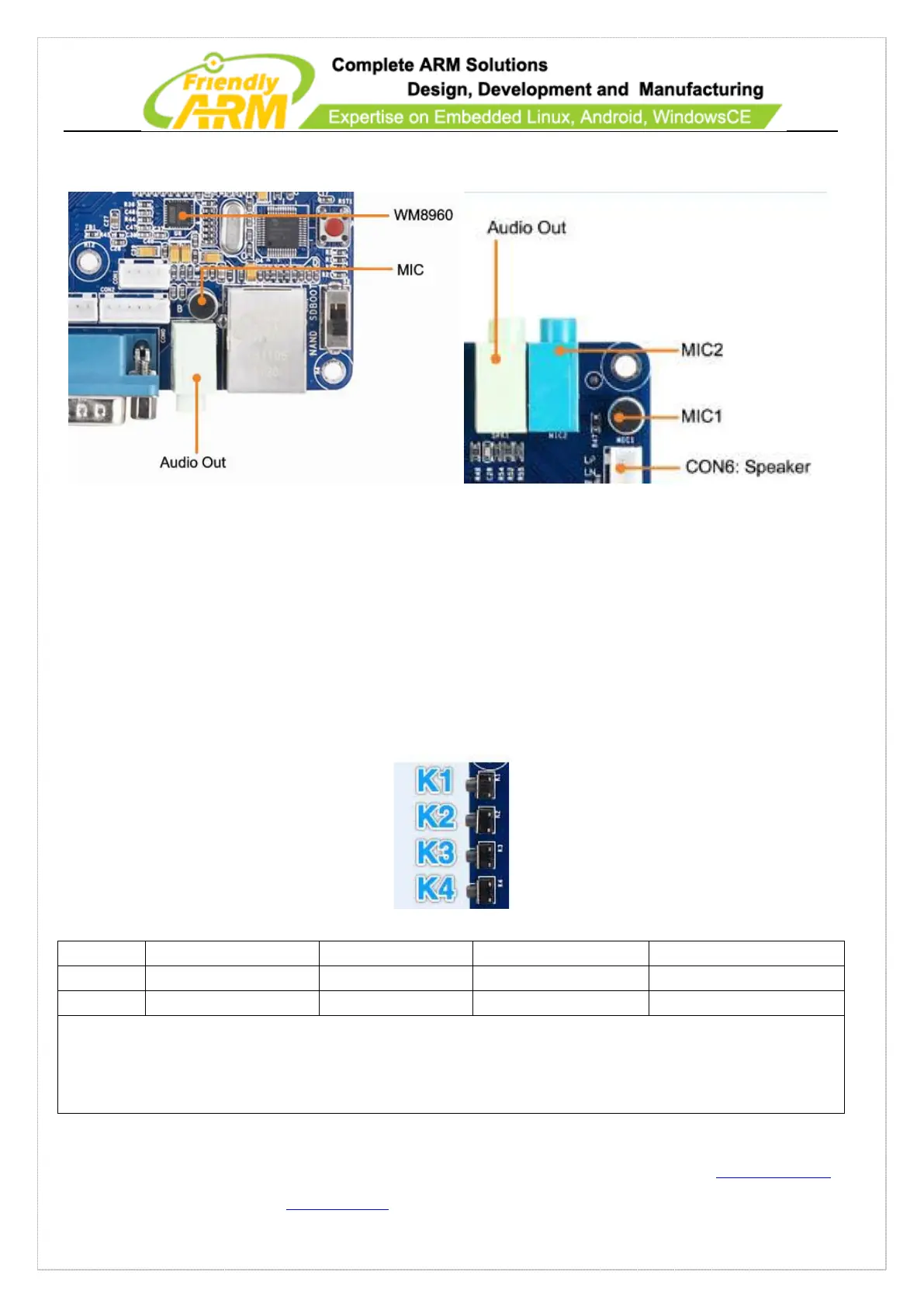

1.7.6 User Button
The Smart210 1305 carrier board has 8 buttons. The TinySDK/ADK 1312B has four
user buttons connected directly to the CPU’s interrupt pins. They trigger low when
closed.
Button
K1
K2
K3
K4
Interrupt
EINT16
EINT17
EINT18
EINT19
GPIO
GPH2_0
GPH2_1
GPH2_2
GPH2_3
Notes:
1. The Smart210 1305 carrier board’s CON14 has all these buttons’ pins
2. The TinySDK/ADK 1312B’s CON13 has all these buttons’ pins.
Please refer to the schematic for more details
