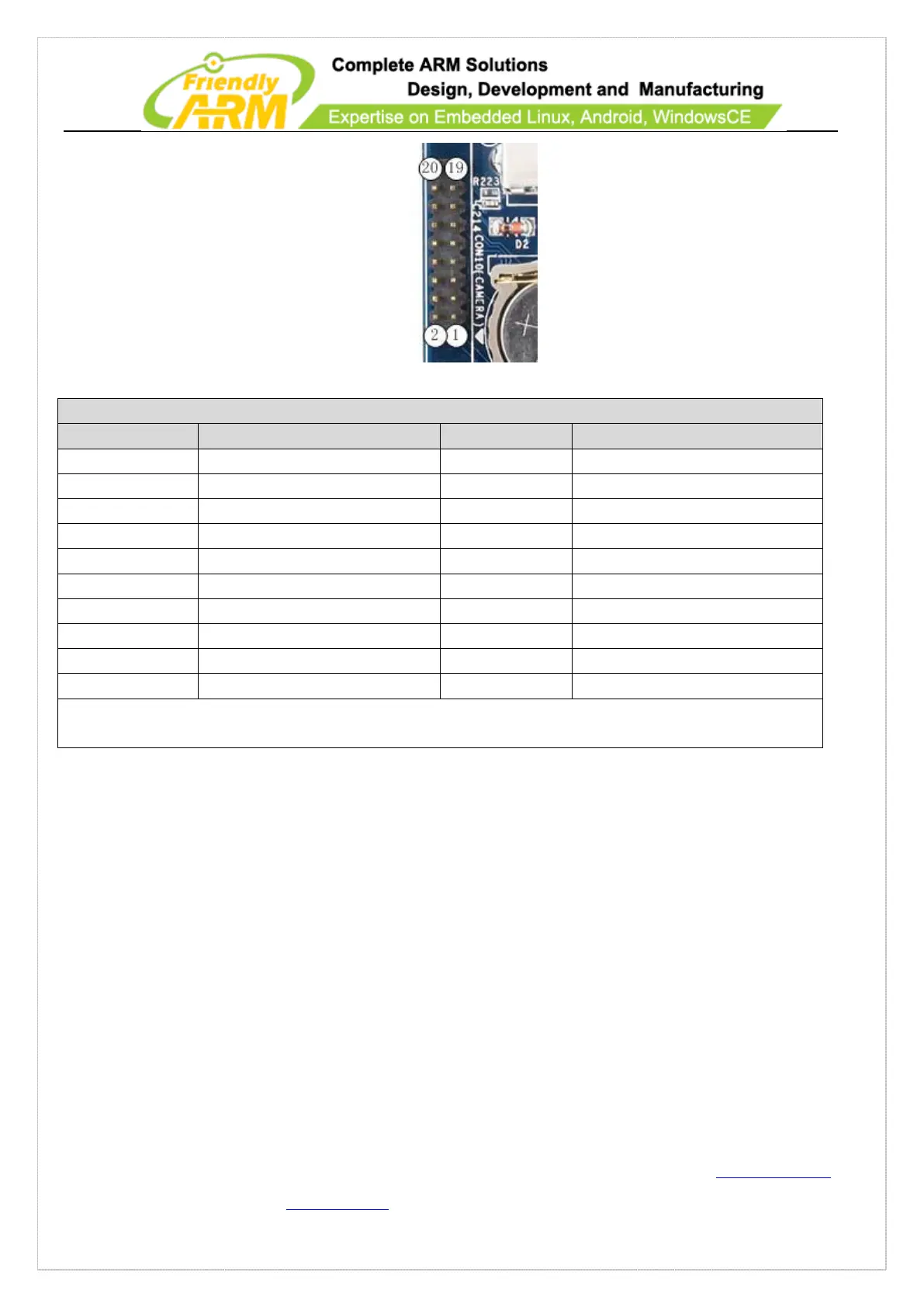

CAMERA
CON10
Pin Spec
CON10
Pin Spec
1
I2CSDA0
2
I2CSCL0
3
XciFIELD
4
CAM_A_RESET/GPJ3_1
5
CAM_A_CLK
6
CAM_A_HREF
7
CAM_A_VSYNC
8
CAM_A_PCLK
9
CAM_A_DATA7
10
CAM_A_DATA6
11
CAM_A_DATA5
12
CAM_A_DATA4
13
CAM_A_DATA3
14
CAM_A_DATA2
15
CAM_A_DATA1
16
CAM_A_DATA0
17
VDD_3.3V
18
VDD_2.45-2.8V
19
VDD_1.8V
20
GND
Please refer to the schematics in the shipped CD for the exact connection details between each pin and CPU. The
information provided here is for reference
2.3.18 GPIO
GPIO is the abbreviated form of “General Purpose Input Output”. The Mini210S has a
30 Pin 2.0mm spaced GPIO interface, i.e. CON6.
In fact, CON6 has not only quite a few GPIO pins but also some CPU pins such as AD
input, SPI, I2S, PCM and so on. Most of them can be multiplexed by setting
corresponding registers.
