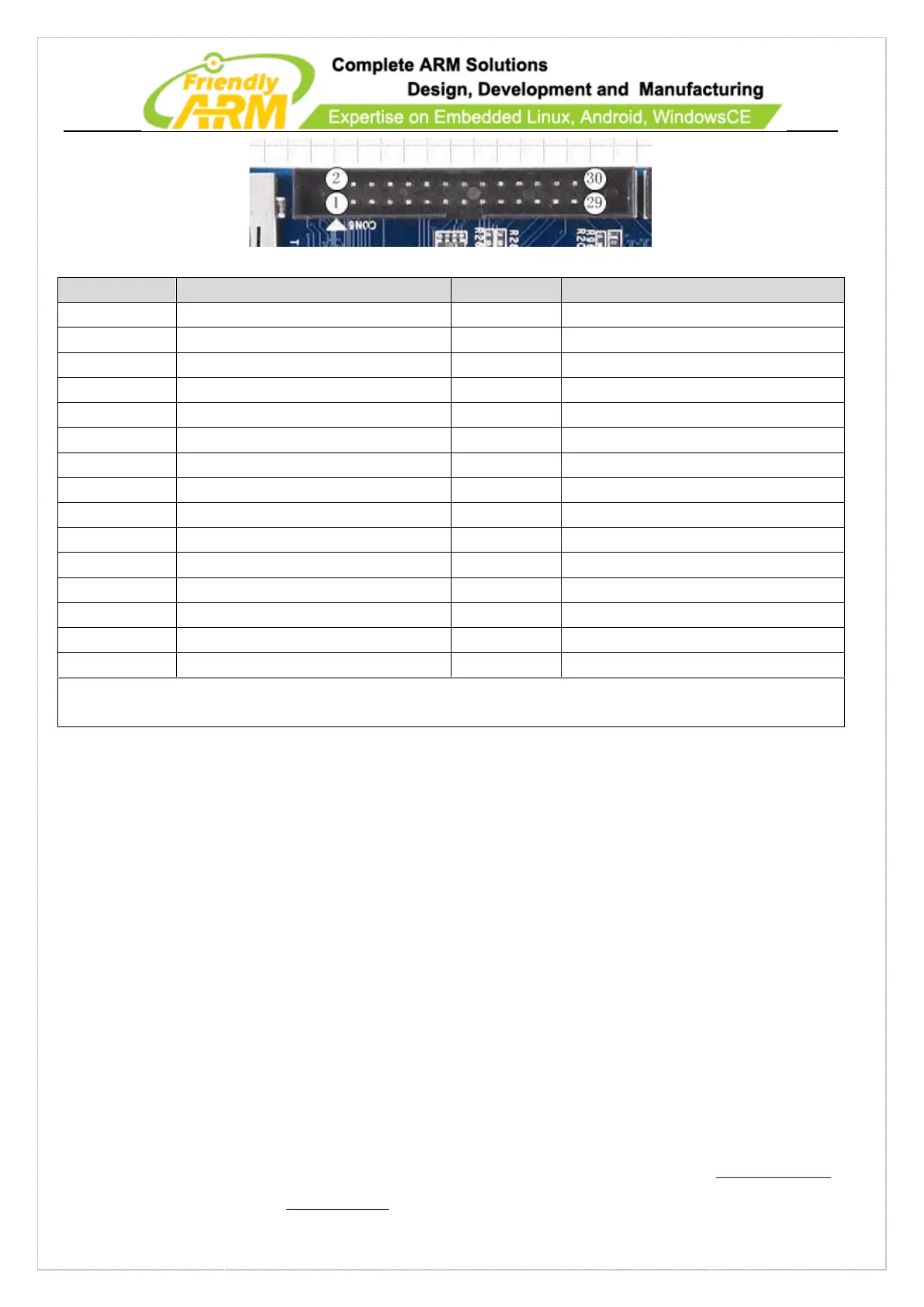

CON6
Pin Spec
CON6
Pin Spec
1
VDD_3.3V
2
GND
3
ADCAIN1
4
EINT0/GPH0_0
5
ADCAIN2
6
EINT1/GPH0_1
7
ADCAIN6
8
EINT2/GPH0_2
9
ADCAIN7
10
EINT3/GPH0_3
11
ADCAIN8
12
EINT4/GPH0_4
13
ADCAIN9
14
EINT5/GPH0_5
15
SDA0
16
EINT6/GPH0_7
17
SCL0
18
EINT9/GPH1_1
19
SDA1
20
SPICLK1/GPB4
21
SCL1
22
SPICS1/GPB5
23
SDA2
24
SPIMISO1/GPB6
25
SCL2
26
SPIMISOI1/GPB7
27
nRSTOUT
28
PWM2/GPD0_2
29
XPWRRGTON
30
PWM3/GPD2_3
Please refer to the schematics in the shipped CD for the exact connection details between each pin and CPU. The
information provided here is for reference
2.3.19 MIPI
The MIPI interface is extended to CON16. The following table lists the signals’
specifications
