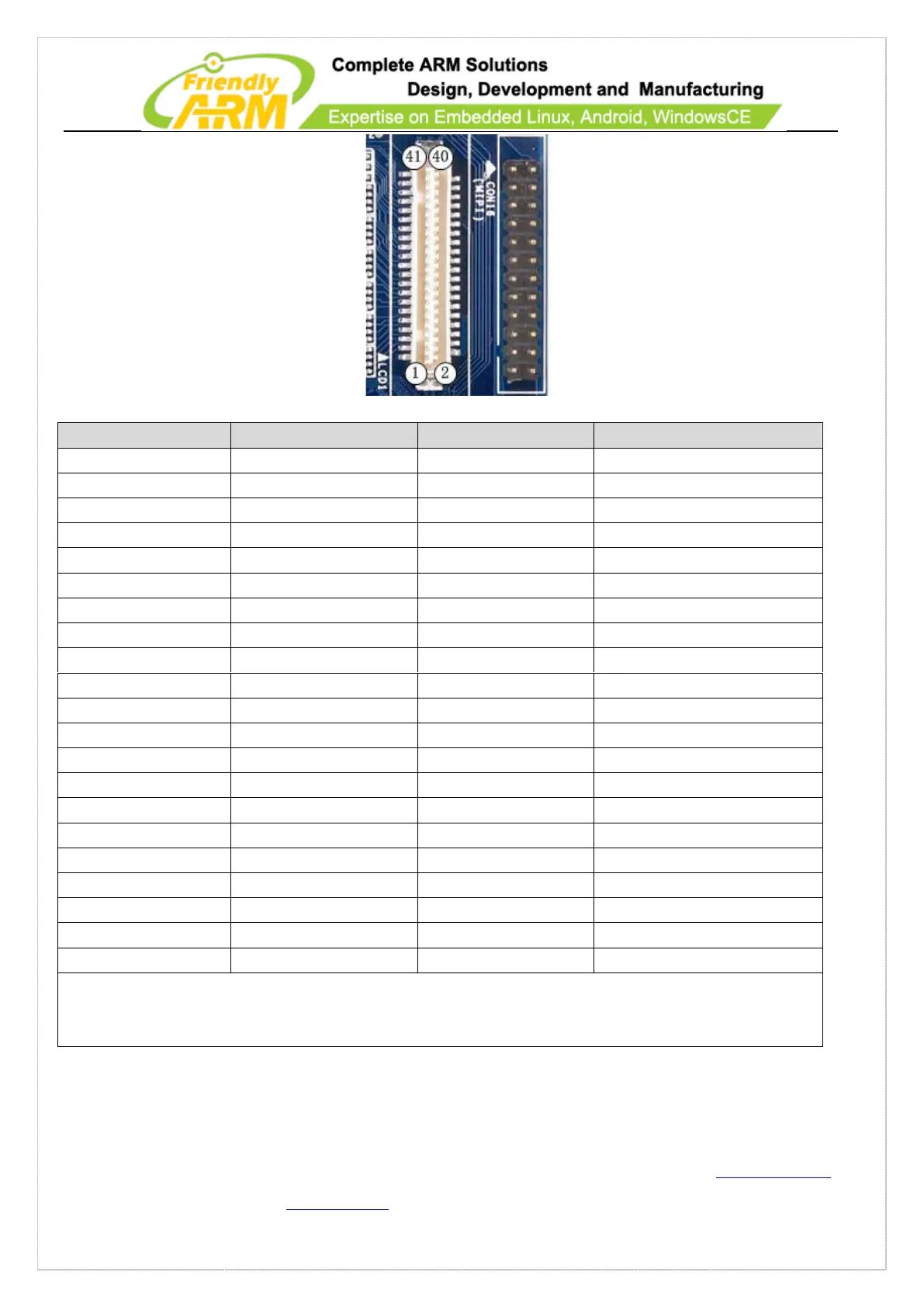

LCD1 & LCD2
Pin Spec
LCD1 & LCD2
Pin Spec
1
VDD_5V
2
VDD_5V
3
VD0
4
VD1
5
VD2
6
VD3
7
VD4
8
VD5
9
VD6
10
VD7
11
GND
12
VD8
13
VD9
14
VD10
15
VD11
16
VD12
17
VD13
18
VD14
19
VD15
20
GND
21
VD16
22
VD17
23
VD18
24
VD19
25
VD20
26
VD21
27
VD22
28
VD23
29
GND
30
PWM1/GPD0_1
31
XEINT10/GPH1_2
32
nRSTOUT
33
VDEN
34
VSYNC
35
HSYNC
36
VCLK
37
I2CSCL2
38
XEINT14/GPH1_6
39
I2CSDA2
40
XEINT15/GPH1_7
41
GND
Note: the S5PV210 has three I2Cs and here we use I2C2.
Please refer to the schematics in the shipped CD for the exact connection details between each pin
and CPU. The information provided here is for reference
