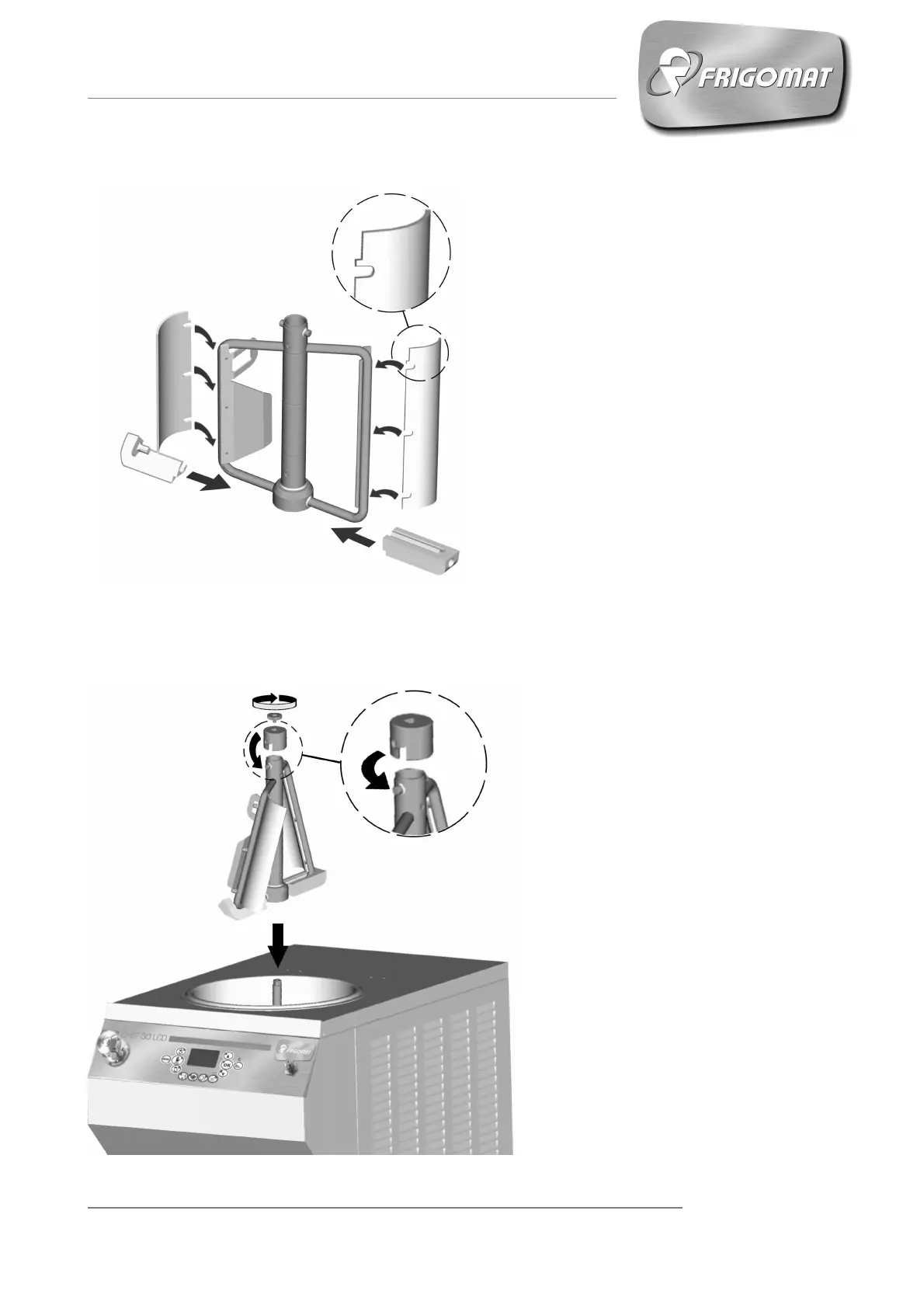

BEATER ASSEMBLY CHEF 30 LCD - CHEF 60 LCD
- Insert the side scraper blades and
ensure that the slots are perfectly
aligned with the guide pins, which
are fixed to the agitator frame
- Insert the lower scraper blades
and ensure that they are correctly
oriented and sliding freely.
- Insert the complete beater inside
the tank and, afterwards, insert
the upper block
- Fix the agitator into the upper
block and ensure that the steel
pins fit their slots
- Tighten the safety pin in order to
secure the beater.
.
