Fronius CMT Twin - Application Example

14
Application example
Application ex-
ample

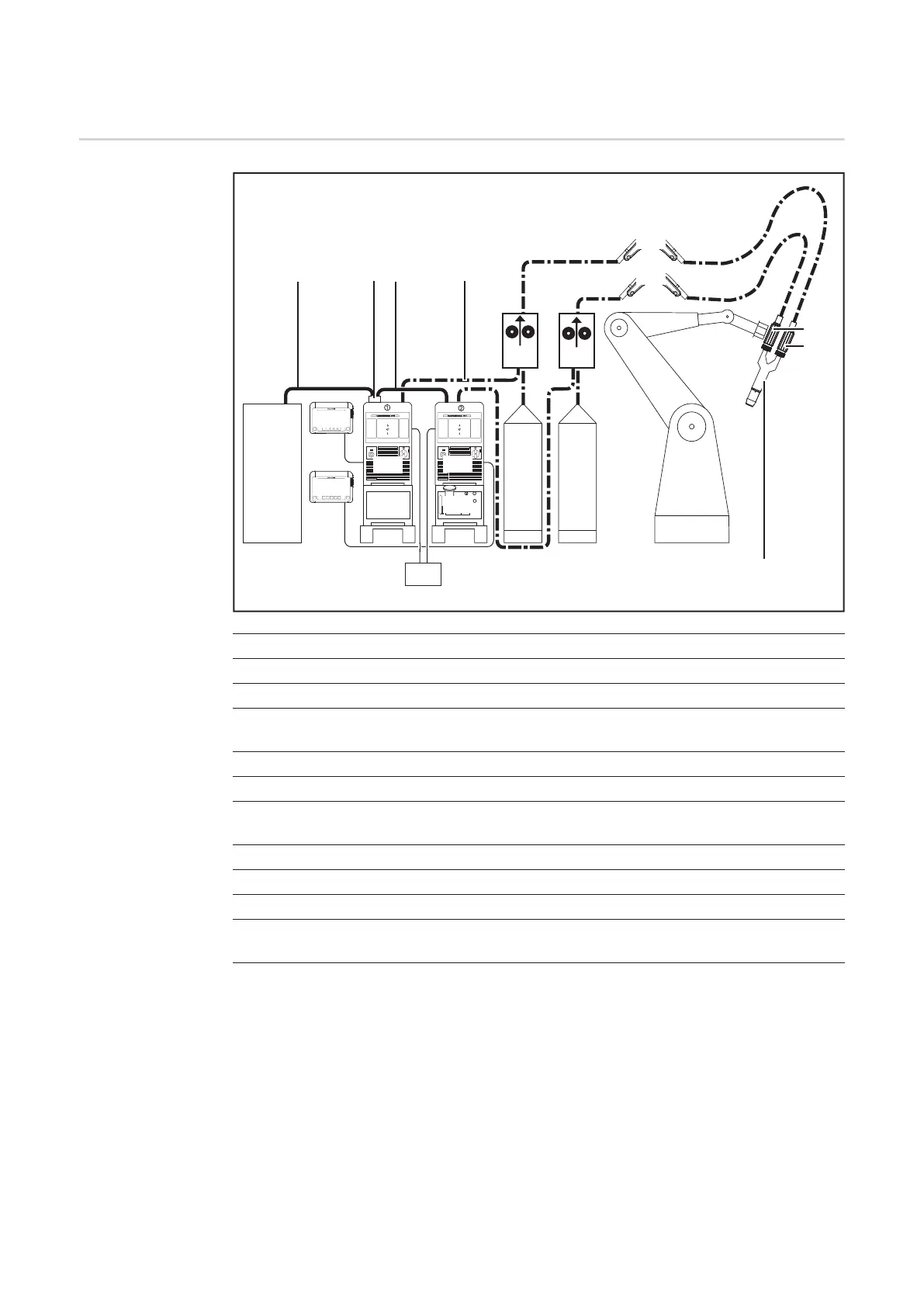

(1) Connection to robot control (12) Robot
(2) Robot interface (13) Drum coil
(3) Connection to robot interface (14) Drum coil
(4) Interconnecting hosepack (15) FK 9000 R or FK 4000 R cooling
unit
(5) VR 7000 CMT or VR 1550 (16) TPS 5000 CMT power source
(6) VR 7000 CMT or VR 1550 (17) LHSB-HUB
(7) Wire buffer (18) FK 9000 R or FK 4000 R cooling
unit
(8) Wire buffer (19) TPS 5000 CMT power source
(9) Robacta Drive CMT drive unit (20) RCU 5000i
(10) Robacta Drive CMT drive unit (21) RCU 5000i
(11) Robacta Twin Compact Pro torch
neck
(22) Robot control
(1)
(11)
(12)
(22)
(2)
(3) (4)
(17)
(6)
(9)
(10)
(20)
(21)
(18)
(19)
(15)
(16) (14) (13)
(5)
(8)
(7)
