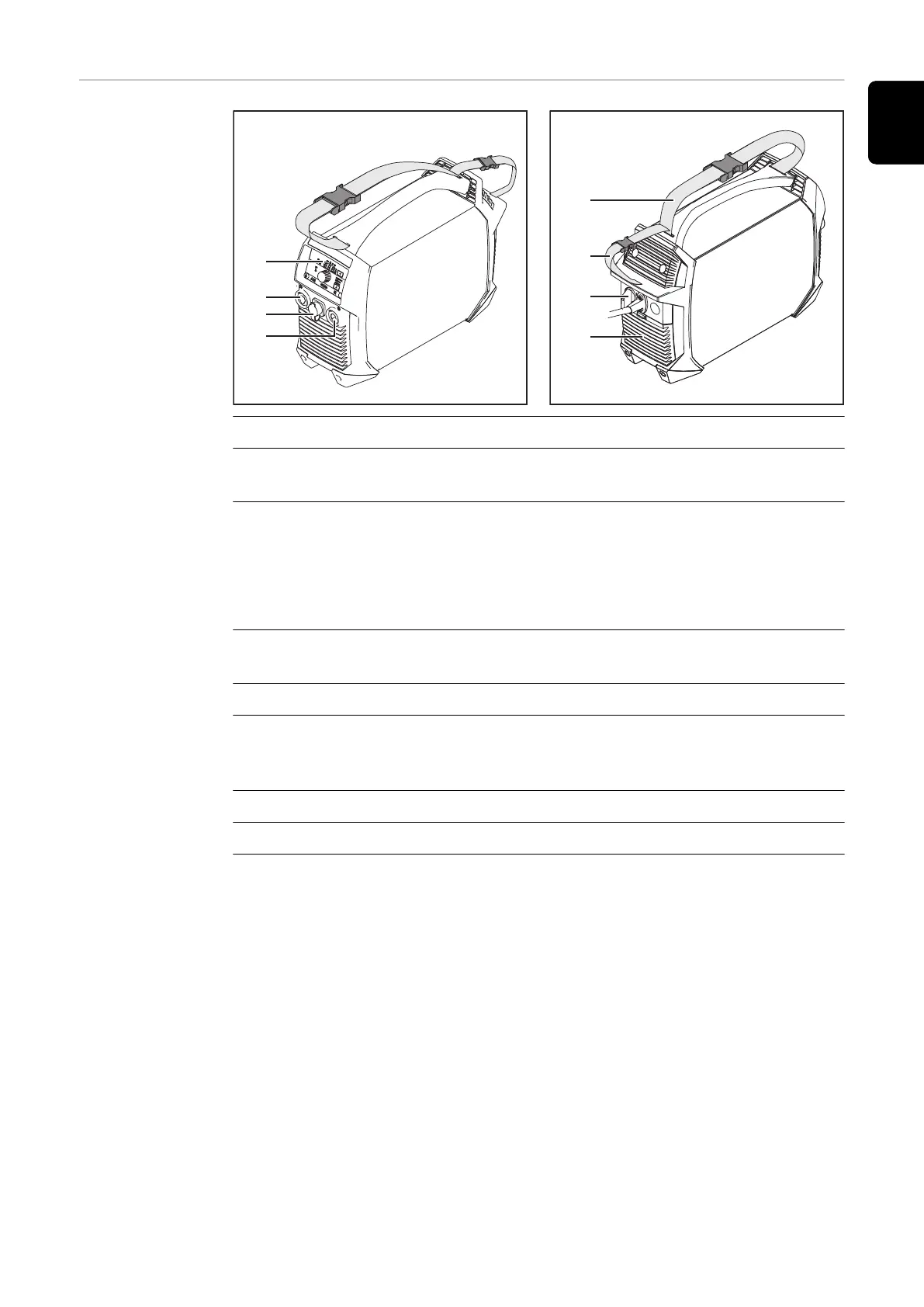

Fronius Ignis 150 - Ignis 180 Controls, Connections and Mechanical Components

Ignis 180 con-
trols, connec-
tions and mech-
anical compon-
ents
(2)
(3)
(4)
(1)
(7)
(8)
(5)
(6)
(1) Control panel
(2) (-) current socket
with bayonet latch
(3) TIG Multi Connector
Ignis 180 RC only - for connecting a remote control
After connecting a remote control to the welding system
-
‘rc’ appears on the welding system display
-
the welding current can only be adjusted using the remote control
(4) (+) current socket
with bayonet latch
(5) Carrying strap
(6) Cable strap
for holding the mains cable and the welding power-leads
Do not use to move the device!
(7) Mains switch
(8) Air filter
Use of the current connections during manual metal arc welding (depending on
electrode type):
-
(+) current socket for electrode holder or grounding cable
-
(-) current socket for electrode holder or grounding cable
Use of the current connections during TIG welding:
-
(+) current socket for grounding cable
-
(-) current socket for welding torch
