Fronius Primo GEN24 Series User Manual

1
WSD
13

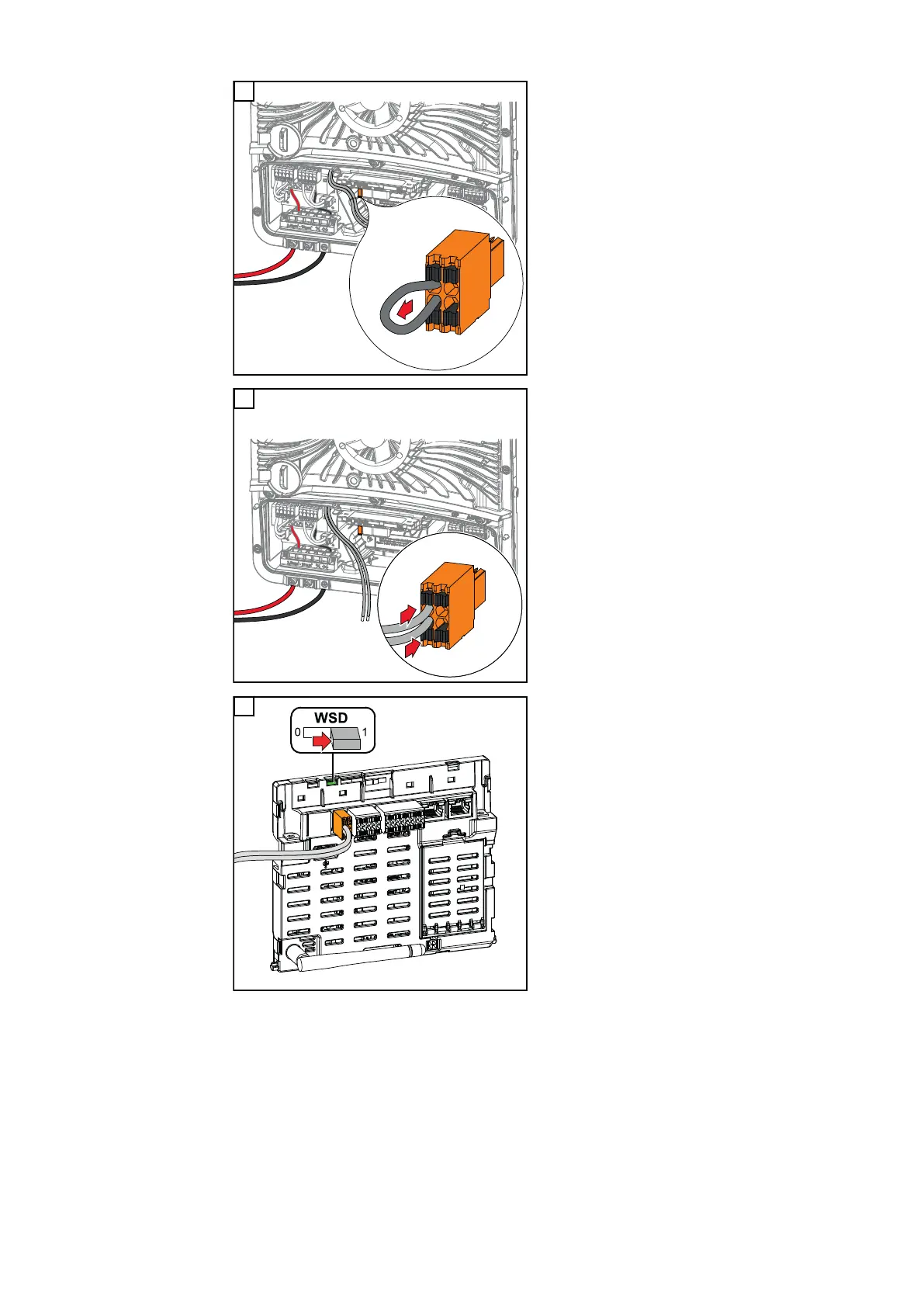

Remove the factory installed bypass
on the push-in WSD terminal.
1
2
IN- & IN+
14
Connect the signal cable to the push-
in WSD terminal on the IN- and IN+
slots, observing the labelling.
15
Check whether the WSD switch is in
position 1, adjust if necessary (factory
setting: position 1).
151

Fronius Primo GEN24 Series Specifications

General

Type	Hybrid Inverter
THD	< 3 %
Number of MPP trackers	2
Max. efficiency	98.1 %
Protection class	IP66
DC isolation	Yes
AC Output Power	3.0 kW to 10.0 kW
Max. apparent AC power	3.0 kVA to 10.0 kVA
Max. output current (at grid voltage)	13.0 A to 43.5 A
AC nominal voltage	230 V
Number of DC connections	2
Operating Temperature Range	-25°C to +60°C
