Fronius Primo GEN24 Series User Manual

16

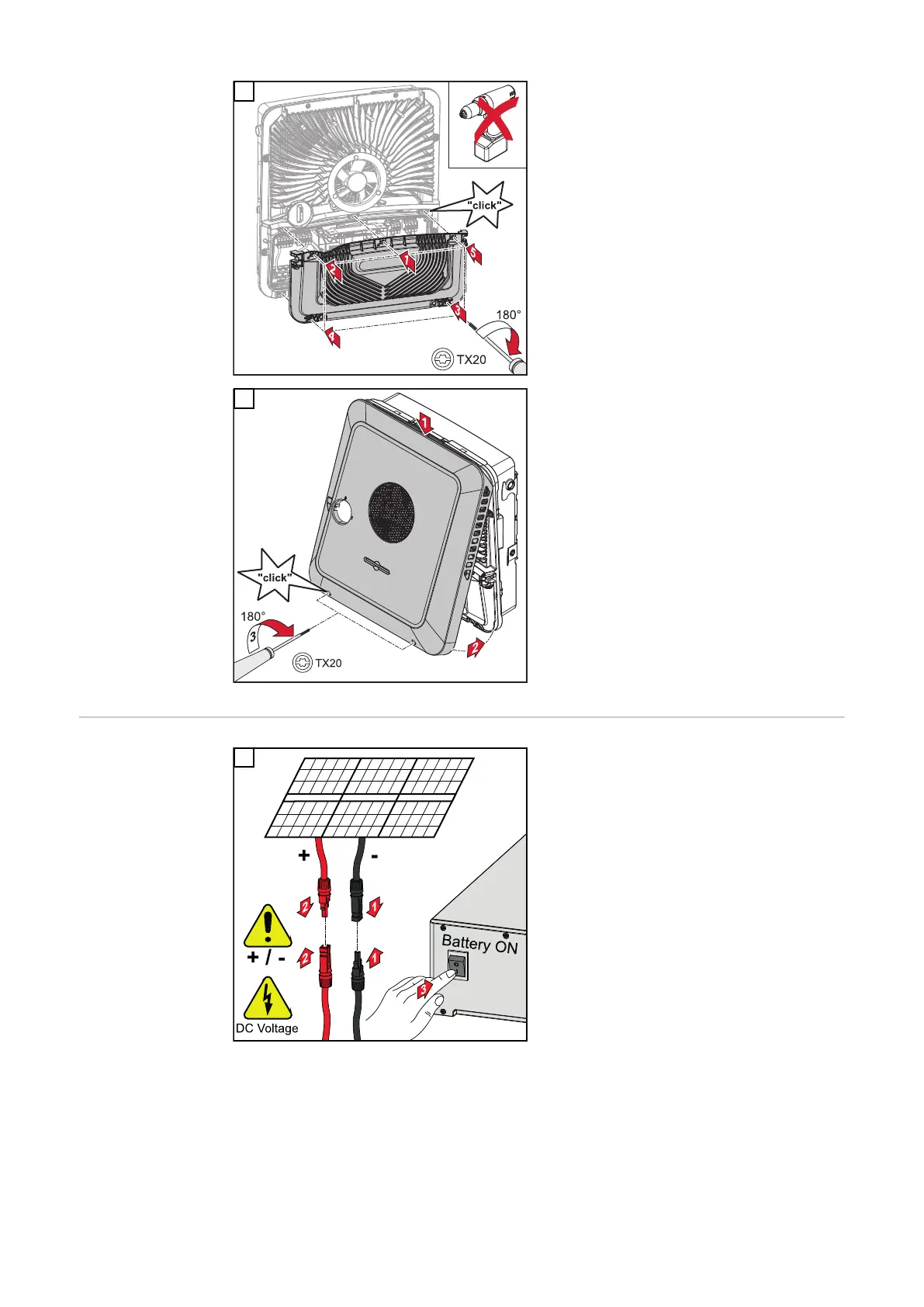

Place the cover on the connection
area. Tighten the five screws by rotat-
ing them 180° to the right in the indic-
ated order using a screwdriver (TX20).
17
Clip the housing cover onto the invert-
er from above.
Press on the lower part of the housing
cover and tighten the two screws by
rotating them 180° to the right using a
screwdriver (TX20).
Commissioning
the inverter
1
Connect the solar module strings (+/-).
Switch on the battery connected to
the inverter.
152

Fronius Primo GEN24 Series Specifications

General

Type	Hybrid Inverter
THD	< 3 %
Number of MPP trackers	2
Max. efficiency	98.1 %
Protection class	IP66
DC isolation	Yes
AC Output Power	3.0 kW to 10.0 kW
Max. apparent AC power	3.0 kVA to 10.0 kVA
Max. output current (at grid voltage)	13.0 A to 43.5 A
AC nominal voltage	230 V
Number of DC connections	2
Operating Temperature Range	-25°C to +60°C
