Fronius Primo GEN24 Series User Manual

WARNING!
Danger due to grid voltage and DC voltage from solar modules that are exposed
to light.
This can result in serious injury and damage to property.
▶
Ensure that the AC and DC side of the inverter are de-energised before car-
rying out any connection, maintenance or service tasks.
▶
Only an authorised electrical engineer is permitted to connect this equip-
ment to the public grid.
WARNING!
Danger due to damaged and/or contaminated terminals.
This can result in serious injury and damage to property.
▶
Before making any connections, check the terminals for damage and con-
tamination.
▶
Remove contamination in the de-energized state.
▶
Have defective terminals repaired by an authorised specialist.

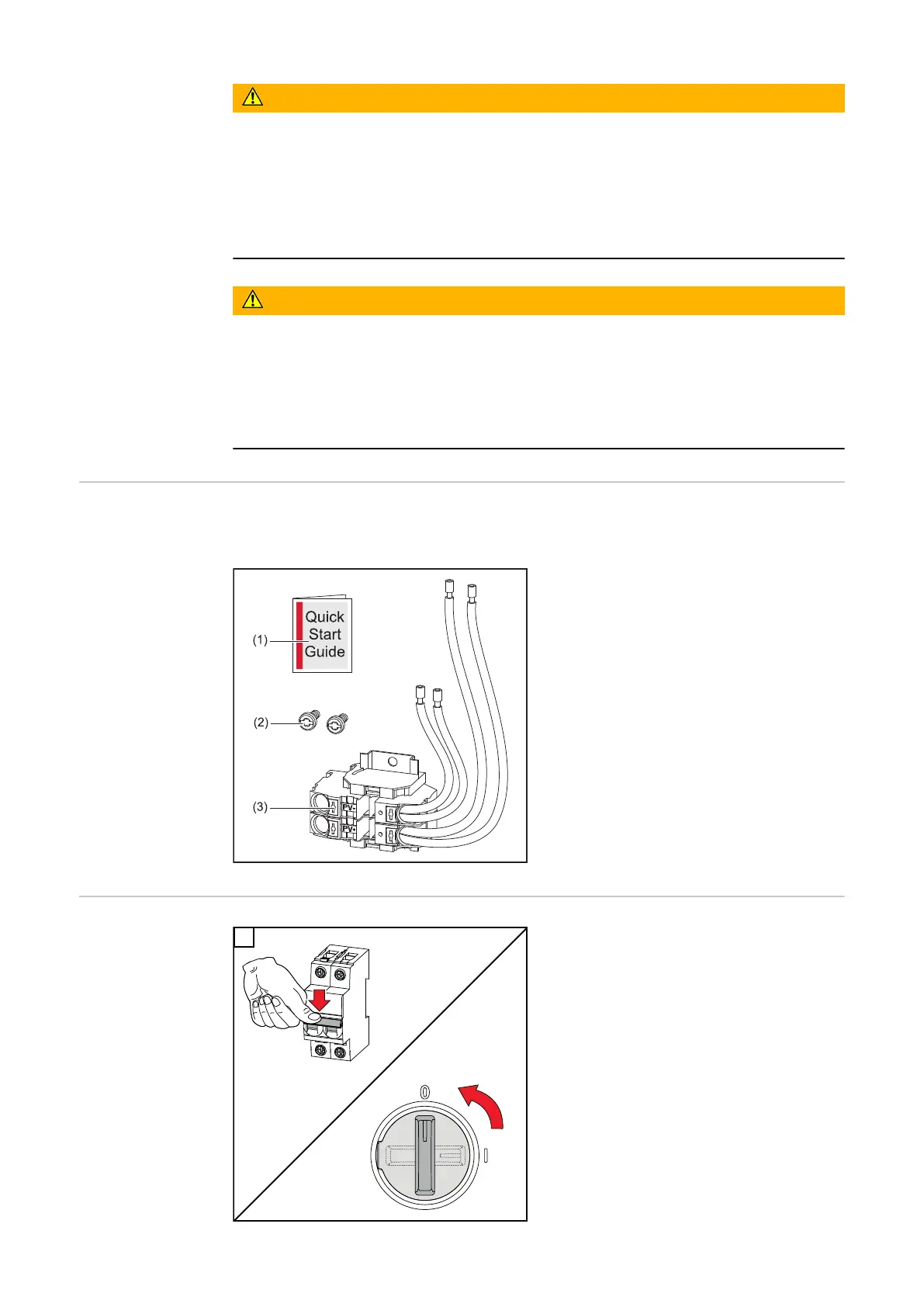

Scope of supply The DC Connector Kit GEN24 is an optional extra and can be retrofitted to the
inverter.
1.
User Information
2.
2 TX20 screws
3.
DC Connector Kit GEN24
De-energising
the inverter
AC~
OFF
1
ON
OFF
2
1
Turn off the automatic circuit breaker.
Set the DC disconnector to the "Off"
switch position.
155

Fronius Primo GEN24 Series Specifications

General

Type	Hybrid Inverter
THD	< 3 %
Number of MPP trackers	2
Max. efficiency	98.1 %
Protection class	IP66
DC isolation	Yes
AC Output Power	3.0 kW to 10.0 kW
Max. apparent AC power	3.0 kVA to 10.0 kVA
Max. output current (at grid voltage)	13.0 A to 43.5 A
AC nominal voltage	230 V
Number of DC connections	2
Operating Temperature Range	-25°C to +60°C
