Fronius Primo GEN24 Series User Manual

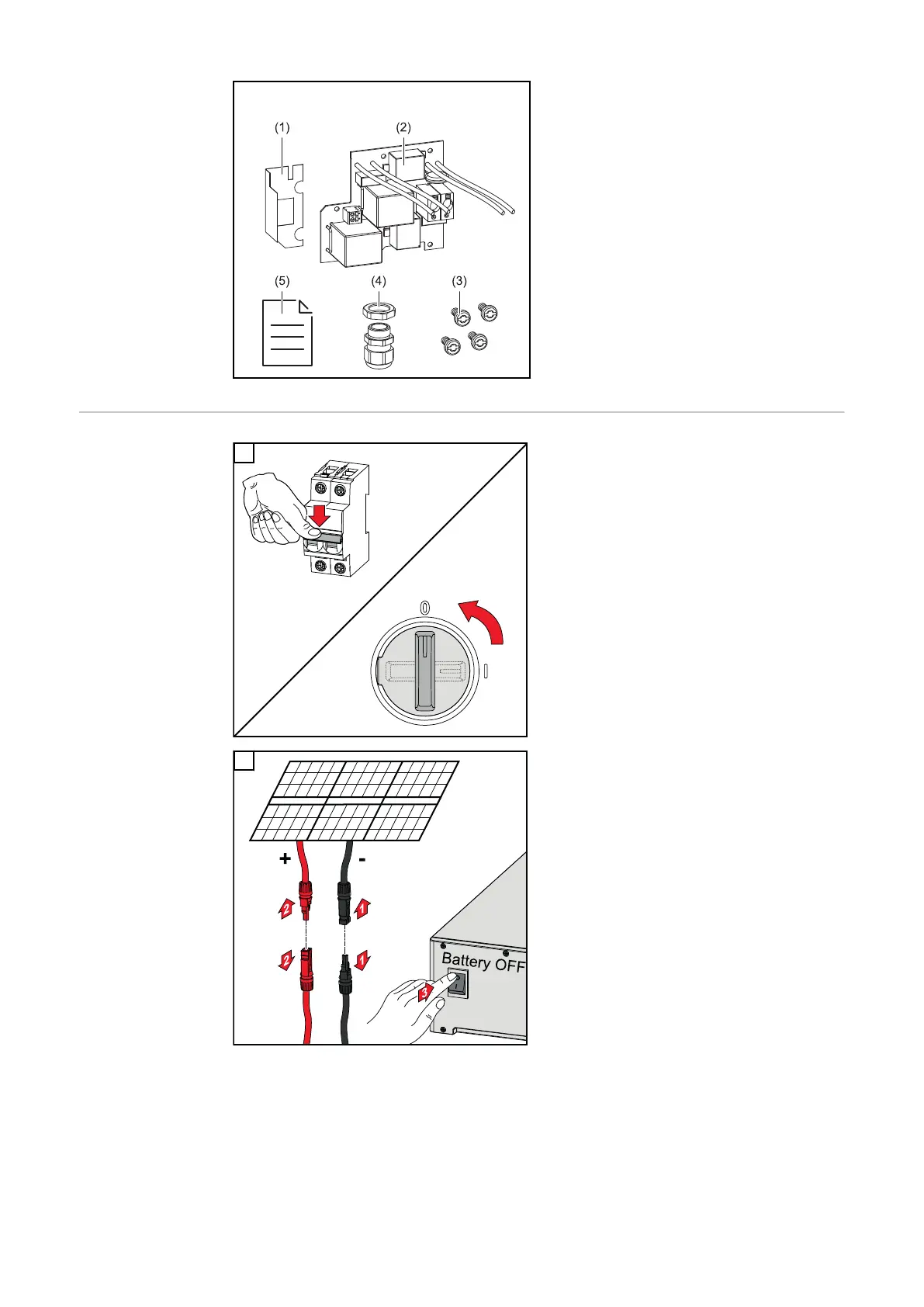

1.
Insulation film
2.
PV Point Comfort
3.
4 TX20 screws
4.
Cable gland
5.
User Information
De-energising
the inverter
AC~
OFF
1
ON
OFF
2
1
Turn off the automatic circuit breaker.
Set the DC disconnector to the "Off"
switch position.
2
Disconnect connections from the solar
module strings (+/-). Switch off the
battery connected to the inverter.
Wait for the capacitors of the inverter
to discharge (2 minutes).
162

Fronius Primo GEN24 Series Specifications

General

Type	Hybrid Inverter
THD	< 3 %
Number of MPP trackers	2
Max. efficiency	98.1 %
Protection class	IP66
DC isolation	Yes
AC Output Power	3.0 kW to 10.0 kW
Max. apparent AC power	3.0 kVA to 10.0 kVA
Max. output current (at grid voltage)	13.0 A to 43.5 A
AC nominal voltage	230 V
Number of DC connections	2
Operating Temperature Range	-25°C to +60°C
