Commissioning

the inverter

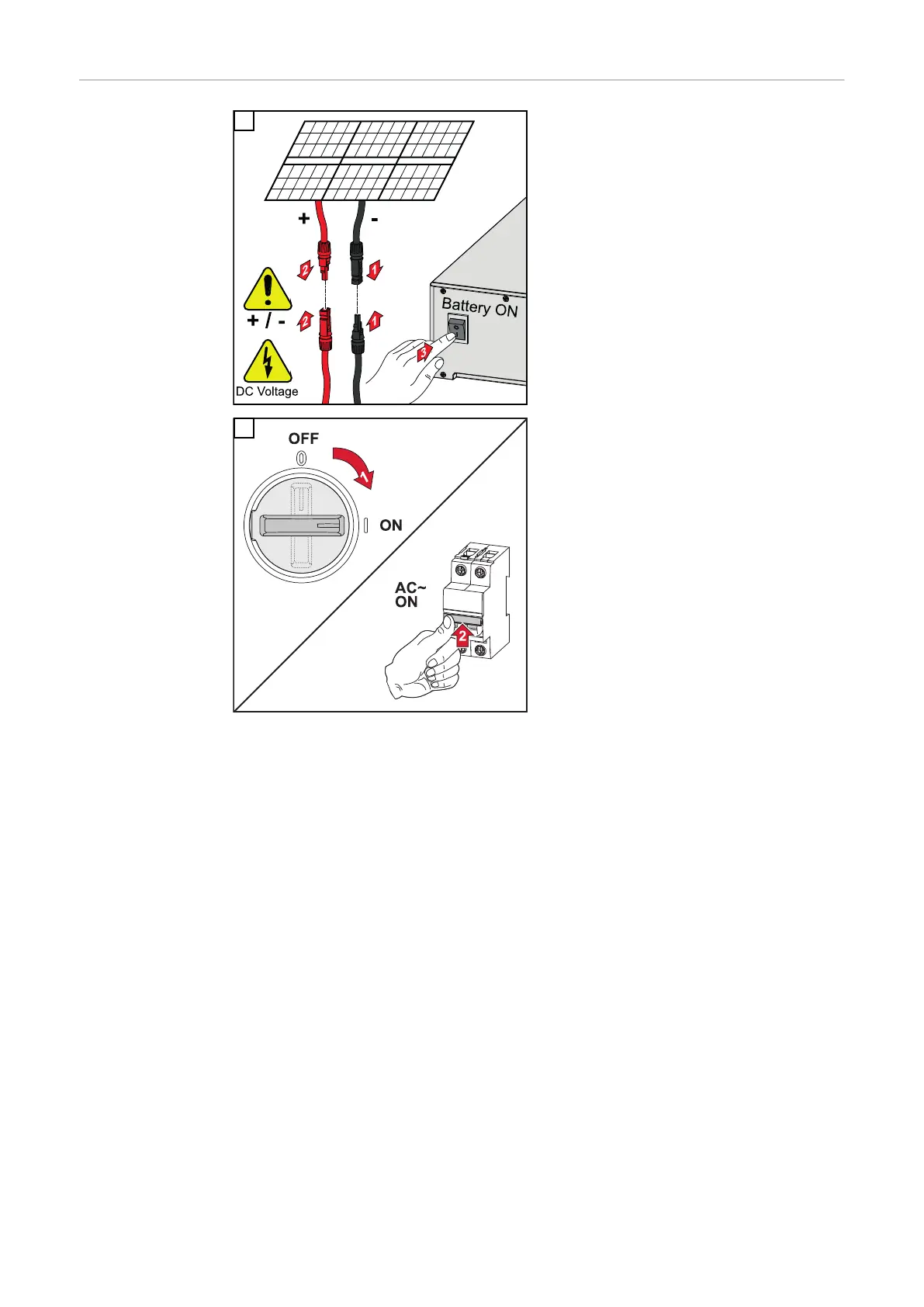

Connect the solar module strings (+/-).

Switch on the battery connected to

the inverter.

Set the DC disconnector to the "On"

switch position. Switch on the auto-

matic circuit breaker.

160
