Fronius Symo 5.0-3-M Service Manual & Spare Parts List

100

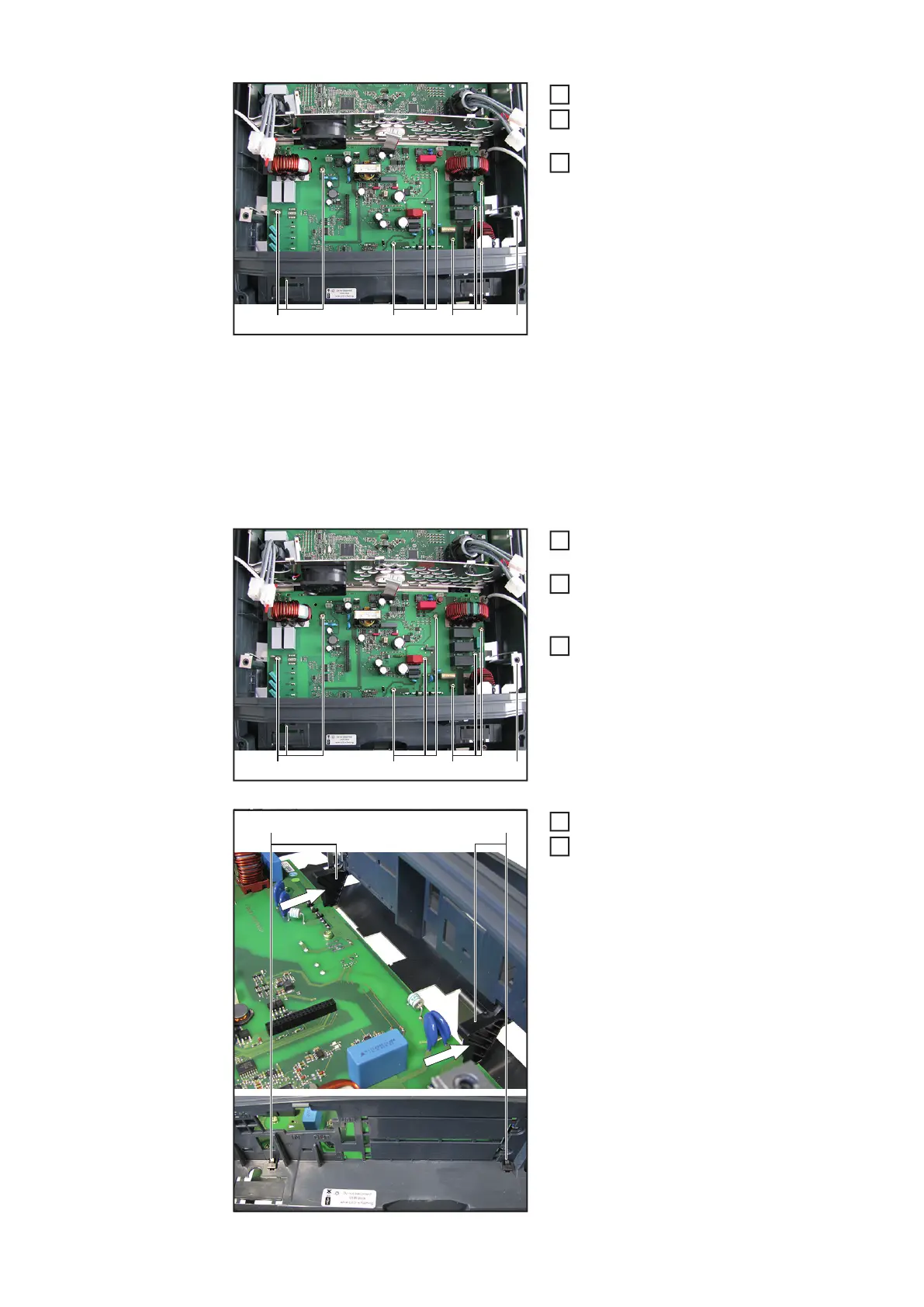

Undo the nine 4x9 TX20 screws (4)
Undo the ground connection (5) and
detach
Pull out and remove the SymoFIL
Installing SymoFIL:
Thread in the wire and position the new
SymoFIL
Mount the SymoFIL with nine 4x9
TX20 screws (4)
[2 Nm]
Insert the ground connection (5) and
ensure it is correctly positioned
Insert the PC board holder (3)
The PC board holder must snap com-
pletely into place in the Datcom area
(3)
(4)(4)(4) (5)
5
6
7
(4)(4)(4) (5)
1
2
3
(3)(3)
4
5

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
