Fronius Symo 5.0-3-M Service Manual & Spare Parts List

101
EN-US

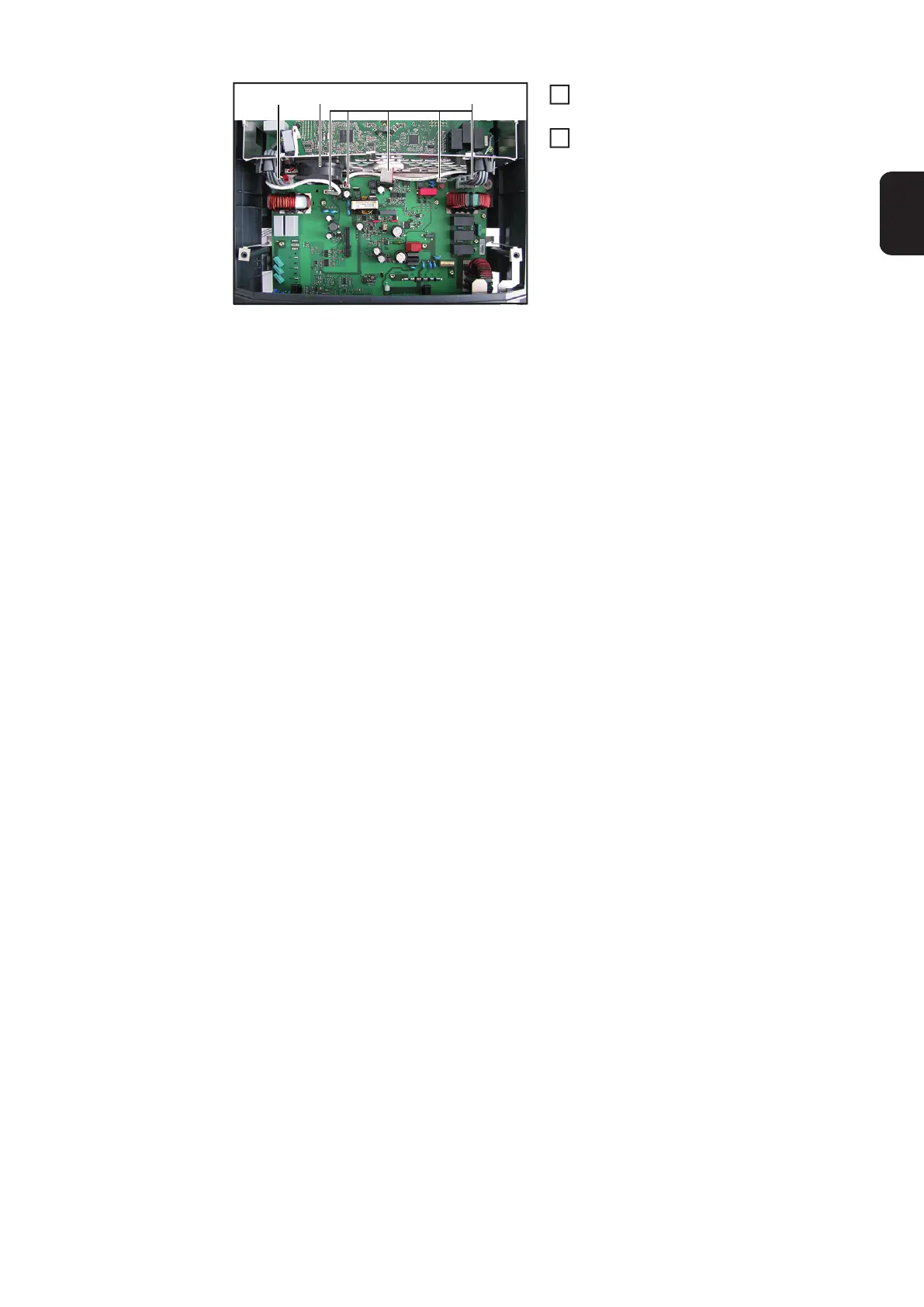

Mount all cable and plug connections
(1-2) on the SymoFIL
Insert the Recerbo, close the inverter
and insert into the wall bracket (see
"Replacing the Display PC Board
(Recerbo)" and "Opening and Closing
Device" sections)
After switching on the inverter, carry out a
fan test via the display (see Operating Inst-
ructions)
(2)
(2)(1)
6
7

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
