Manual control panel

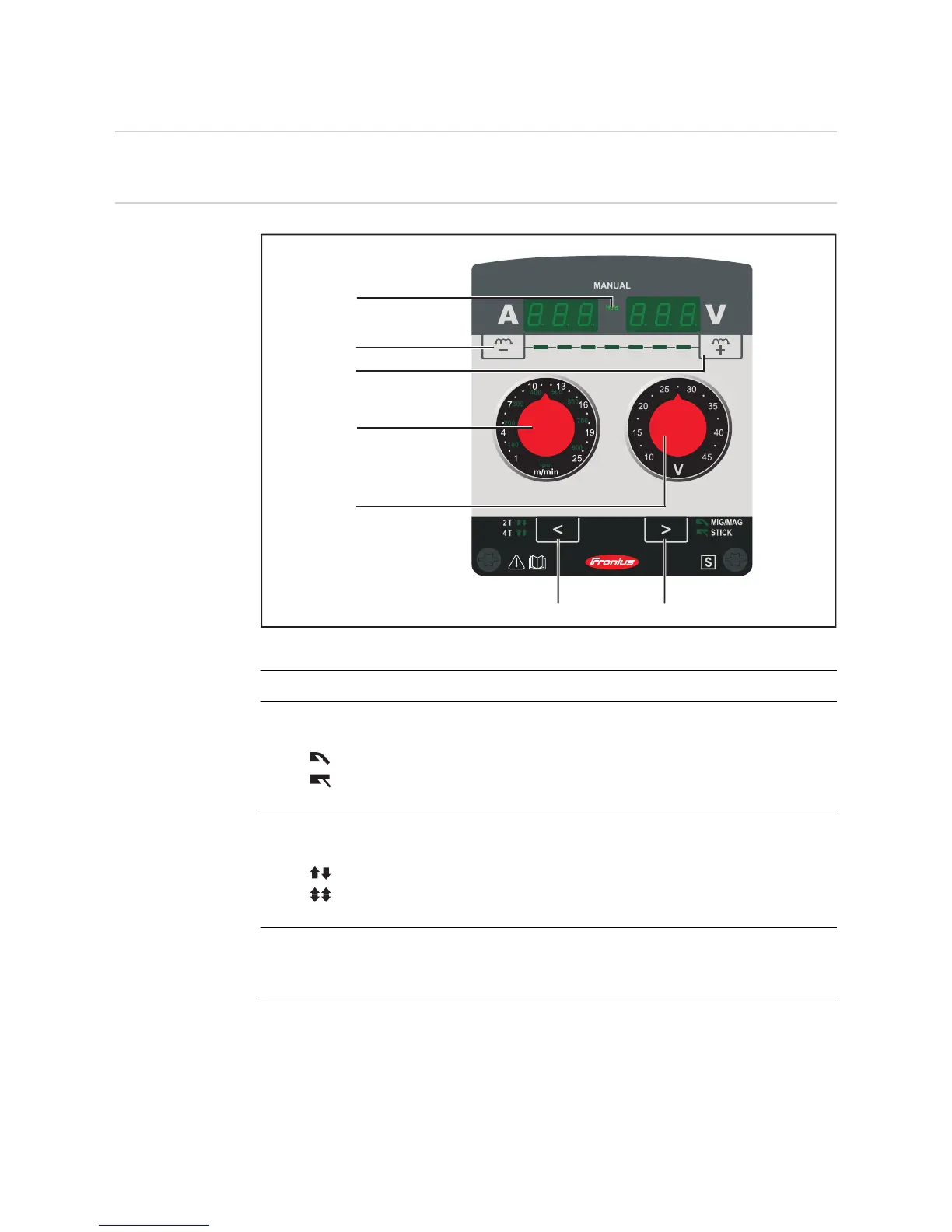

General The control panel allows straightforward manual setting of the welding parameters.
Manual control
panel
No. Function
(1) "Process" button
*)
for selecting the welding process
MIG/MAG welding
STICK manual metal arc welding
for selecting welding parameters in the Setup menu
(2) "Mode" button
for selecting the operating mode
2-step mode
4-step mode
for selecting welding parameters in the Setup menu
(3) Welding voltage adjuster
for selecting the welding voltage in V
The welding voltage is directly related to the arc length.
(4) Wire feed speed adjuster
for selecting the wire feed speed in m/min or ipm.
If the welding voltage (3) remains constant, the welding current increases as the
wire feed speed (4) increases
(6)
(5)
(5)
(4)
(3)
(2) (1)
