Frontier EGA/PY-3030D User Manual

3-7
Ver.1.36
3.9 INSTALLING CONTROL SOFTWARE
3.9.1 Installing USB serial communication device driver
Before installing the control software, the USB serial communication driver needs to be installed.
1. Make sure that the USB cable is properly connected. The PC screen will display a “Found New
Hardware” window when the temperature controller is turned ON.
2. Place the CD-ROM (EGA/PY-3030D control software) in the CD drive. (in the example below, CD
drive is assigned to D: drive.)
3. A dialog box asks whether you want to start a setup program. Do not proceed, and just cancel and
terminate the dialog.
4. Now, as shown in Fig. 3.4, specify a folder and install the USB-serial driver.

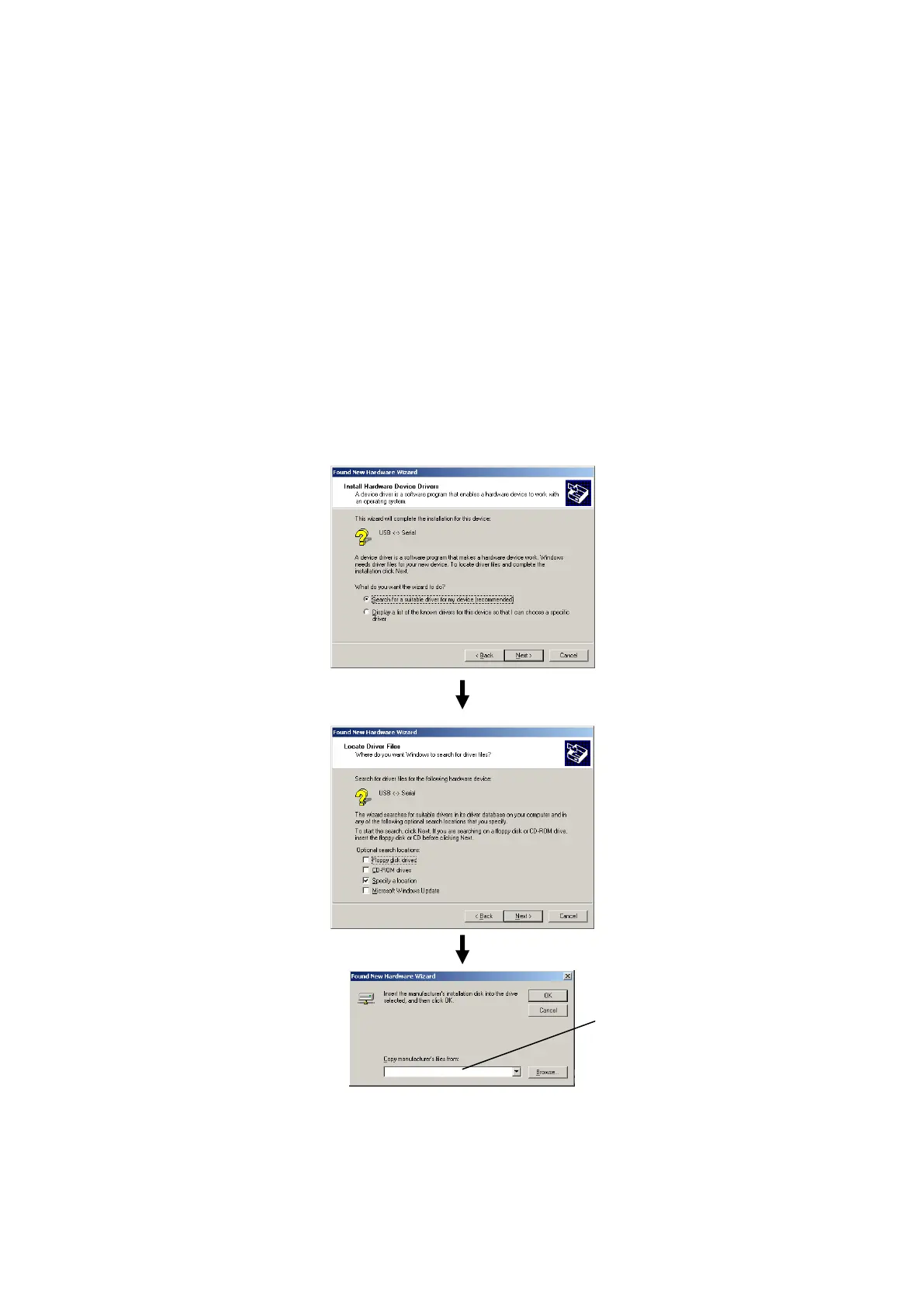

Fig. 3.4 Installing USB serial communication driver
Specify D:\Driver_USB_Serial folder
D:\Driver_USB_Serial
