Frontier EGA/PY-3030D User Manual

3-11
Ver.1.36
3.10.2 Temperature controller

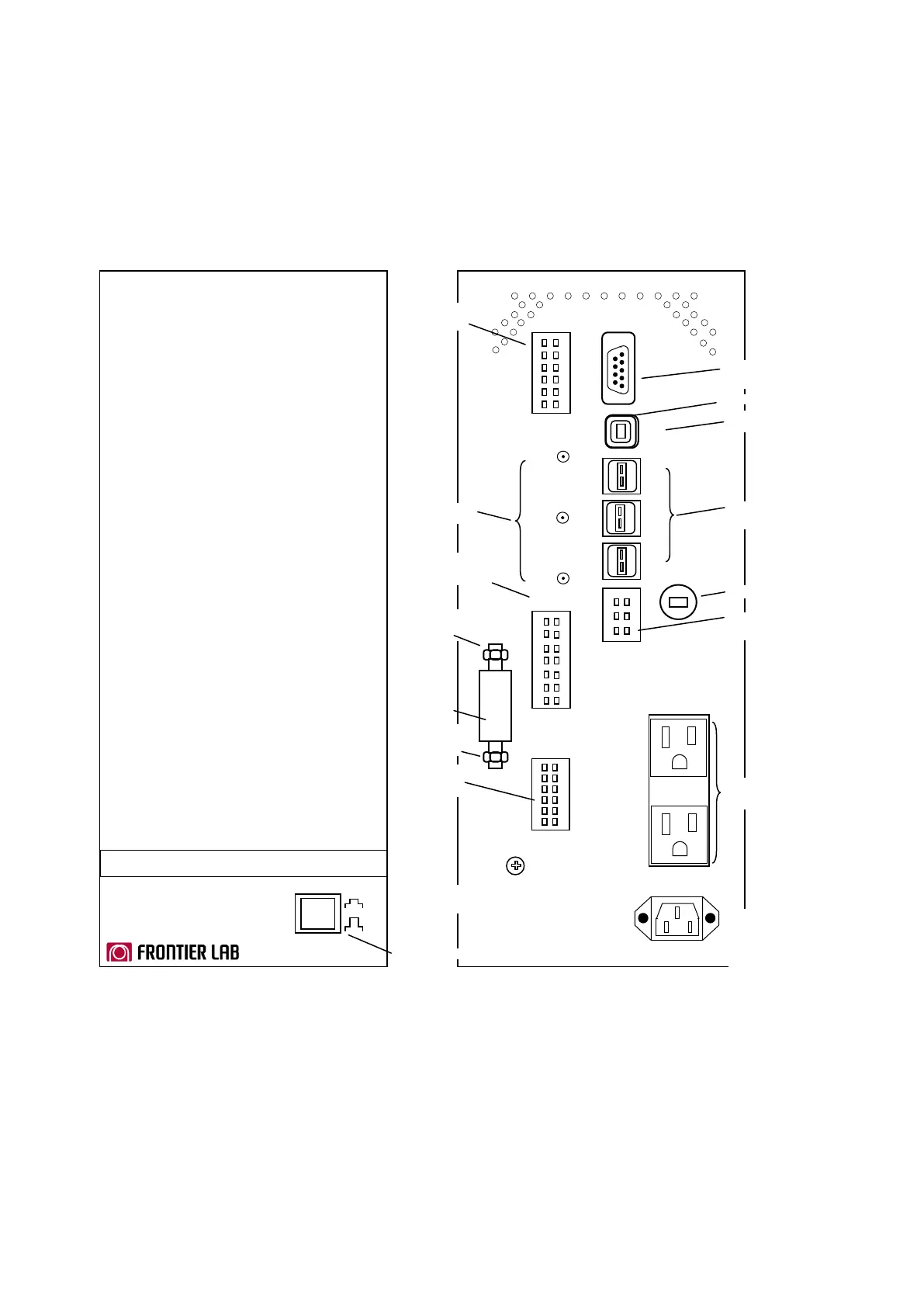

The front and back panels of Temperature controller are shown below in Fig. 3.9.
Fig. 3.9 Front and rear views of Temperature controller
EGA/PY-3030D
Multi-S hot Pyrolyzer
1
0
NFB
PY
ITF
AUX
HEATER
POWER
RS-232C
USB
V2
V4
V6
V1
V3
V5
GC REMOTE
VALVE
MAIN NFB
100/115VAC OUT
100W
100/115VAC INPUT
50/60Hz 400W
MADE IN JAPAN
SENSOR
GND
COOLING
GAS
IN
OUT
RS-232C port
For AS-1020E only
External device
control ports
Main breaker
Power for peripheral
devices
100VAC 100W total
Main power in
100/115V 400W
Connect remote
signal cable
Connect to
pyrolyzer
Breakers for
heaters
Control valves for
cooling gas and
peripheral devices
Cooling gas out
Connect to
pyrolyzer
Cooling gas in
Connect cooling
gas line
Ground terminal for pyrolyzer
Connect ground cable from pyrolyzer
Sensor signal
Connect to
pyrolyzer
Cooling gas
control valve
Main power switch
Front
Rear
Fixing bracket
USB port
Connect to PC
220/240VAC INPUT
50/60Hz 400W
or
Main power in
220/240V 400W
or
