TRANSPORTING
A—Spring
B—Nut
IMPORTANT: To avoid machine damage, do not
overtighten spring. Overtightening will
prevent the rake from opening and
closing when needed.

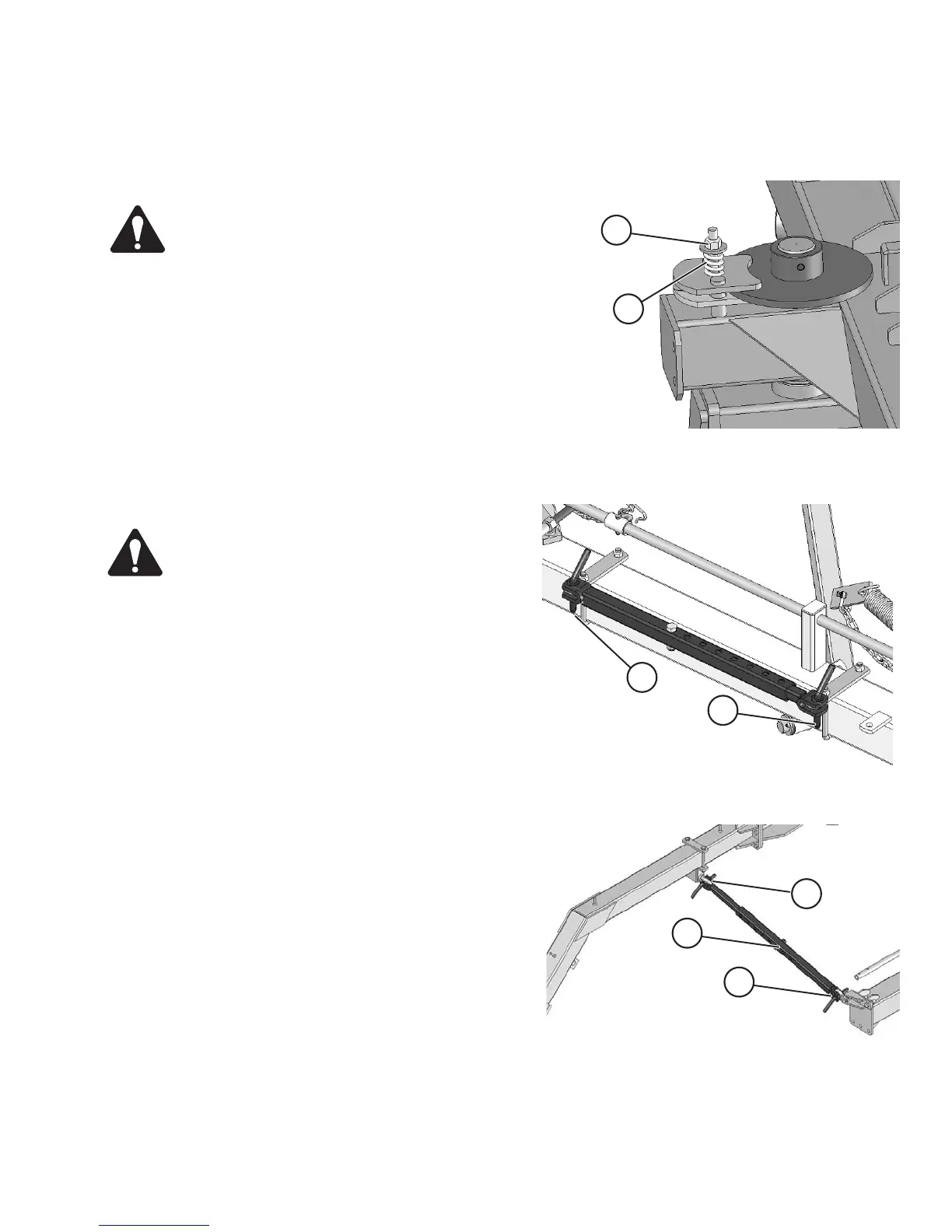

10. Spring (A) on wheel brake should be compressed 45
mm (1-25/32 in.) to keep wheel from wobbling. If
needed, turn nut (B) one revolution to increase spring
compression. Repeat as necessary.
23
A
B
CAUTION: To avoid unexpected opening
of rake while transporting, install
transport lock. Failure to install transport
lock could result in serious injury.
11. Move rake forward slowly. Fold rake arms fully
inward to transport position.
12. Remove transport lock from storage position,
attached to brackets (A). Install in eyebolts (B) in
transport position (C).
Adjust the transport lock bar at its shortest position to
hold the tubes as close to the center tongue tube as
possible.
Adjust the transport lock bar to a longer position when
the Center Kicker Wheel option is installed.
A
A
B
B
C
A—Brackets
B—Eyebolts
C—Transport position
