LOV
™
Generation II Technical Reference
33
TESTING BETWEEN PINS 2 & 8 J6 MIB
SHOULD READ:
24VAC WHEN RTI TANK IS FULL
0VACWHENRTITANKISNOTFULL
BLAC K 24VAC IN FR OM RTI (HO T)
WHITE 24VAC IN FROM RTI (COM)
GREEN 24VAC OUT RTIPUMP
RED RTI DISPOSE TANK FULL
MIB J6
CONTROL
LIN E
ADD
PUMP
SE NS E
LINE
WASTEFULL
TESTING BETWEEN PINS 1 & 4 RTI
DROP PLUG SHOULD READ:
24VAC WHEN RTI TANK IS FULL
0 VAC WHEN RTI TANK IS EMPTY
HIRSCH MANN
CONNECTION ON
REAR OF FRYER
12
3
4
5
12
3
4
5
GRAY 5-
COND UCTO R
CABL E
DROP PLUG
BEHIND F RYER
1
2
3
4
RED
GREEN
BLACK
WHITE

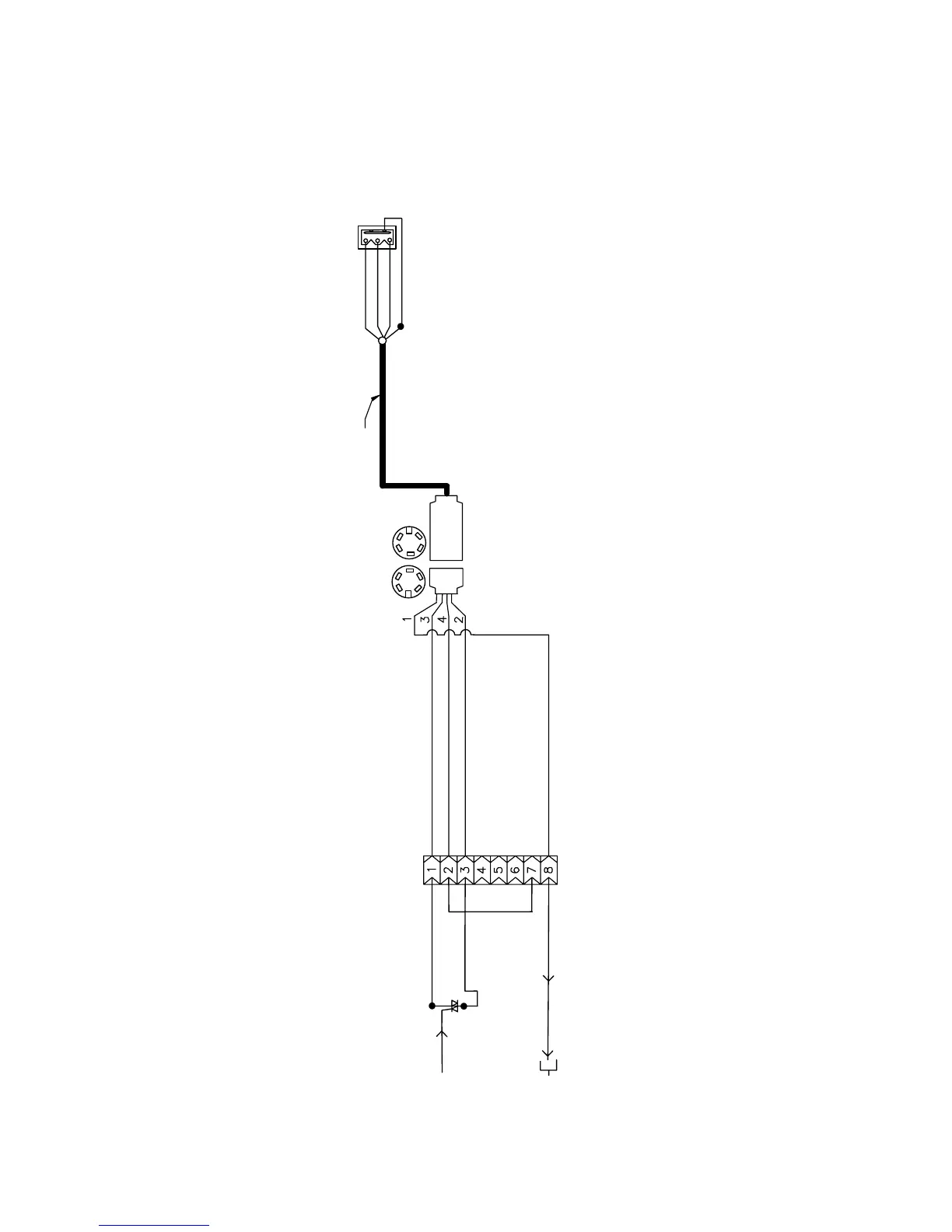

Bulk Oil LOV
™
Wiring
