Frymaster LOV M3000 - Oil System Plumbing Schematic

Frymaster LOV M3000
50 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
LOV
™
Generation II Technical Reference
35
Drain Ball
Valves
Waste Oil
Tank
Fryer
Filter
Pump
Built-in Filter BoxBuilt-in Filter Box
New Oil PumpNew Oil Pump
Fry Pots
New Oil
Tank
Top-off
Jug
Top-off
Pump
Dispose Manual
Valve
Return
Valves
Jug Valve
Bypass Check
Valve
Frymaster LOV
™

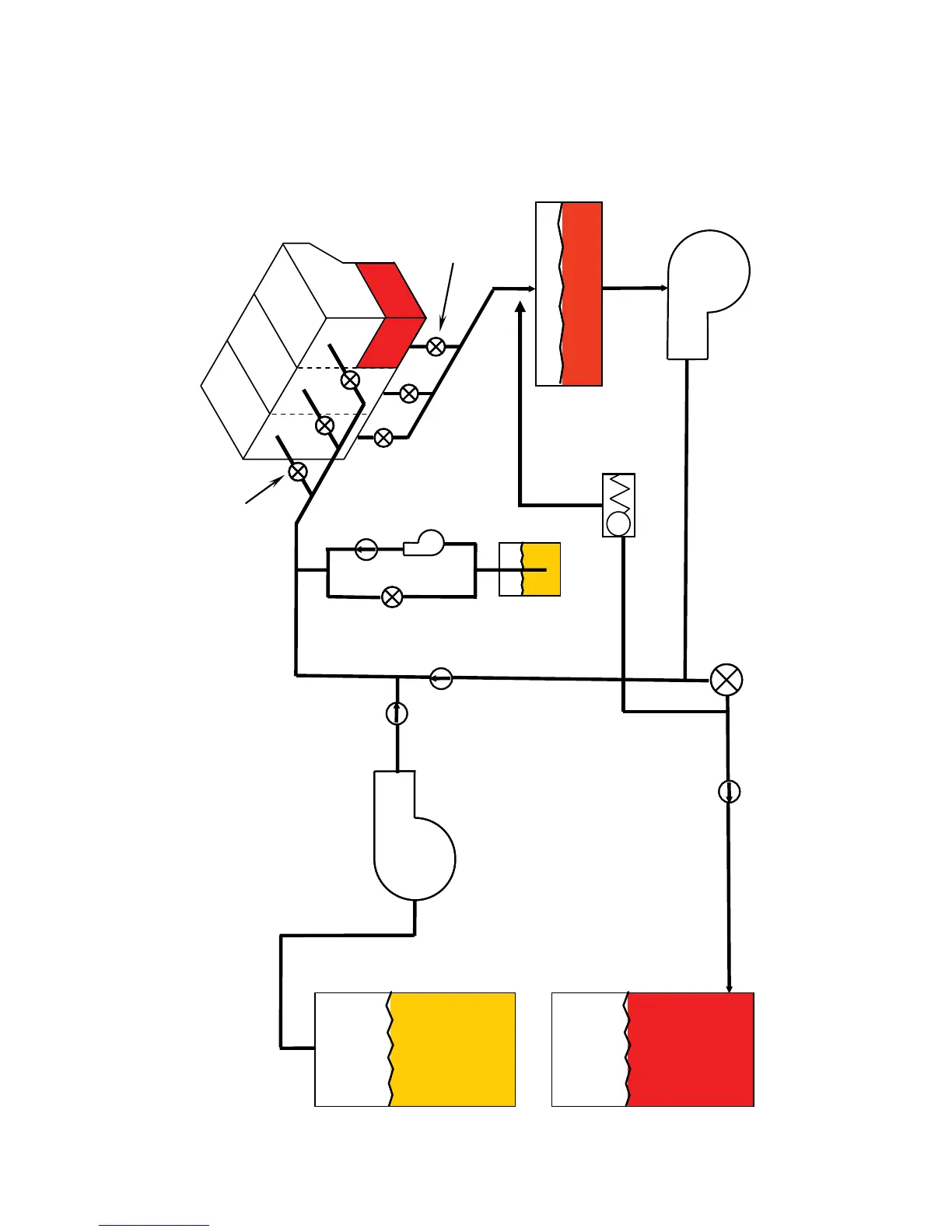

Fryer and RTI Bulk Oil System Plumbing Schematic
