FTE Maximal MAX S123 HD - Panel and Remote Control Overview; Receiver Panel Descriptions

PAG.
13
rev 1.1
ENGLISH
PANEL & REMOTE CONTROL DESCRIPTION

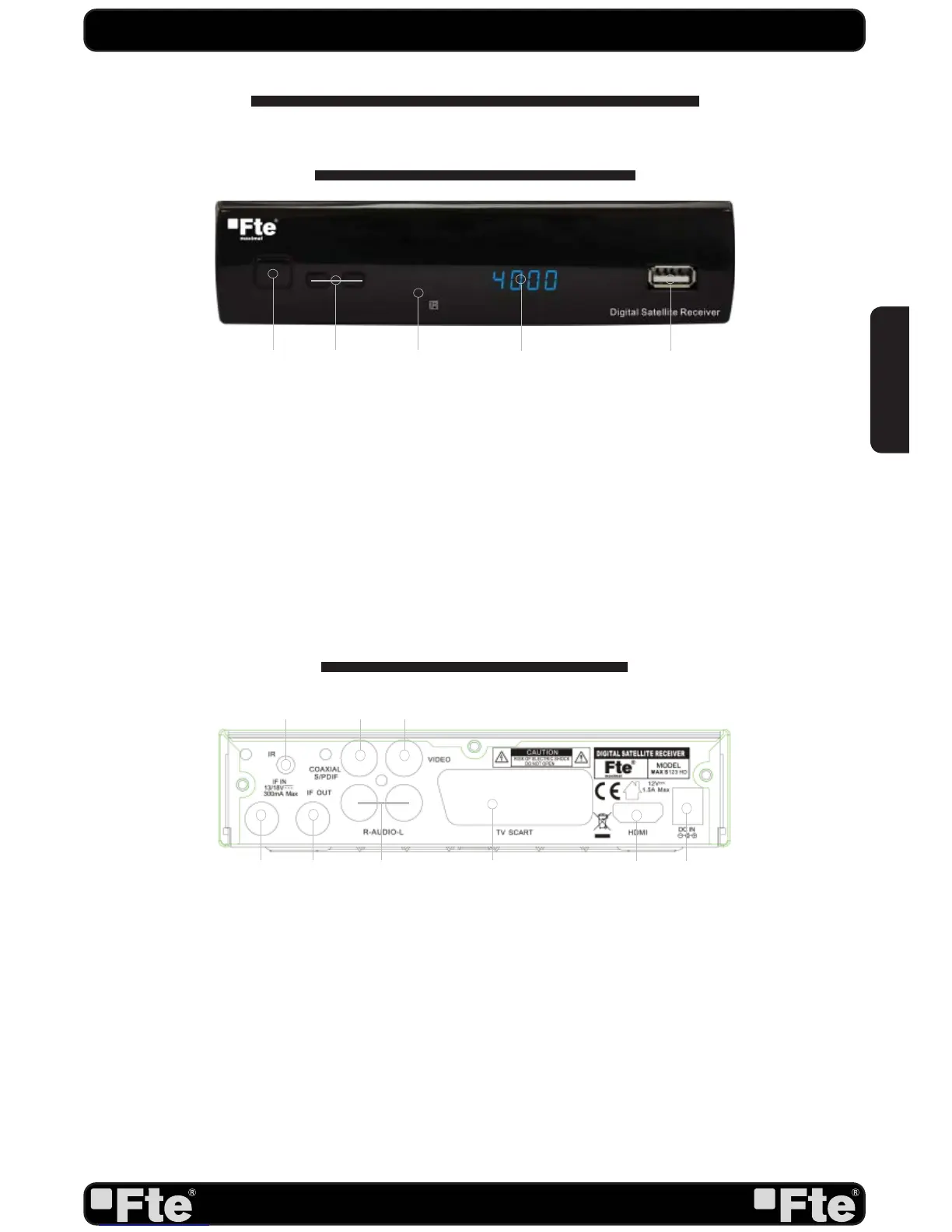

1. PANEL & REMOTE CONTROL DESCRIPTION
1.1. FRONT PANEL DESCRIPTION
1.2. REAR PANEL DESCRIPTION
1. POWER / STANDBY LED: Switches the receiver on, or enters standby mode. / Shows if the receiv-
er is in Standby mode (when LPC mode is ON).
2. CH+/CH-: Changes channels or controls the cursor in menus.
3. IR-SENSOR: Reception sensor for the IR remote control signals.
4. DISPLAY: 4 Digits to display the program numbers.
5. USB: Connector for external USB 2.0 HighSpeed devices or for Wifi Dongle.
1. IR-SENSOR: External IR sensor.
(Optional accessory, code SPX409)
2. COAXIAL S/PDIF: Coaxial output for digital audio (AC3).
3. VIDEO: Video output for external monitor, TFT or video beamer.
4. IF IN: Satellite input. Max. 300mA
5. IF OUT: Satellite output for cascading to other devices.
Note: The operation of another receiver at the same time is only possible with limited channel
selection.
6. AUDIO: Audio output for home audio systems.
7. TV SCART: Output SCART for the connection to a TV set.
8. HDMI: HDMI output for connecting to a TV.
9. DC IN: 12 VDC connection (power supply).
1
4
7
32
4 5
6
1 2 3
5
8 9
