Chapter 2 Description of Functions
81

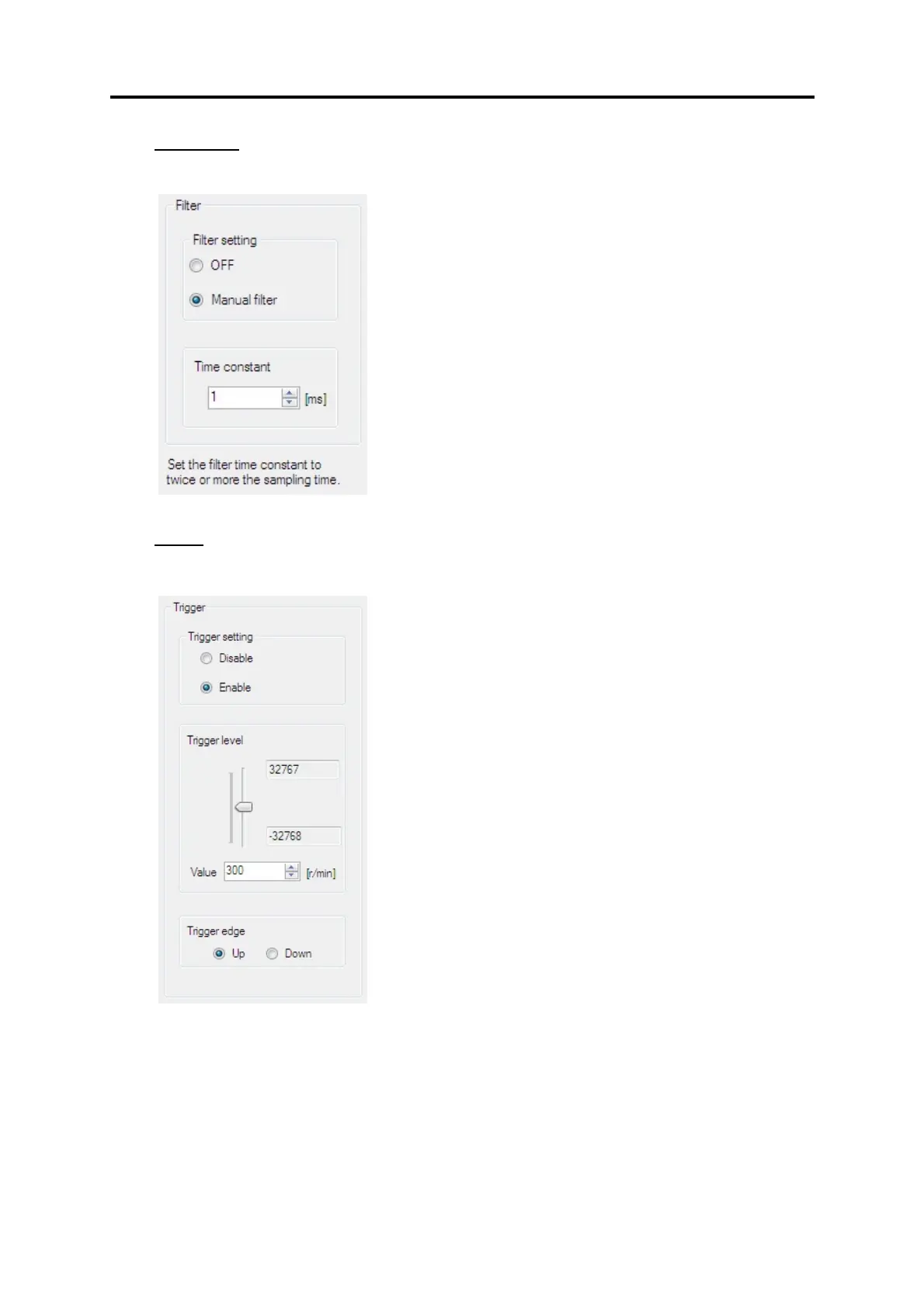

Filter setting
You can do settings on filters of each channel.
Not used
Select this when no file is used.
Manual filter
Low path filter with filter time constant freely set.
Set the filter time constant using numeric values.
The setting range is from 1 [ms] to 1 [s].
(Common to historical/real time/trace back)
Trigger
Specify the trigger for each channel as shown below.
Trigger setting
Select a channel for which the trigger is to be specified. For
an analog channel, only one trigger can be specified.
Trigger level
Use the slide bar to specify the level in %.
Use the Value box to specify the data amount of monitor
item selected for each channel.
Trigger Edge
Select either the rising edge () or trailing edge () of the
trigger.
