Paper Jams

455

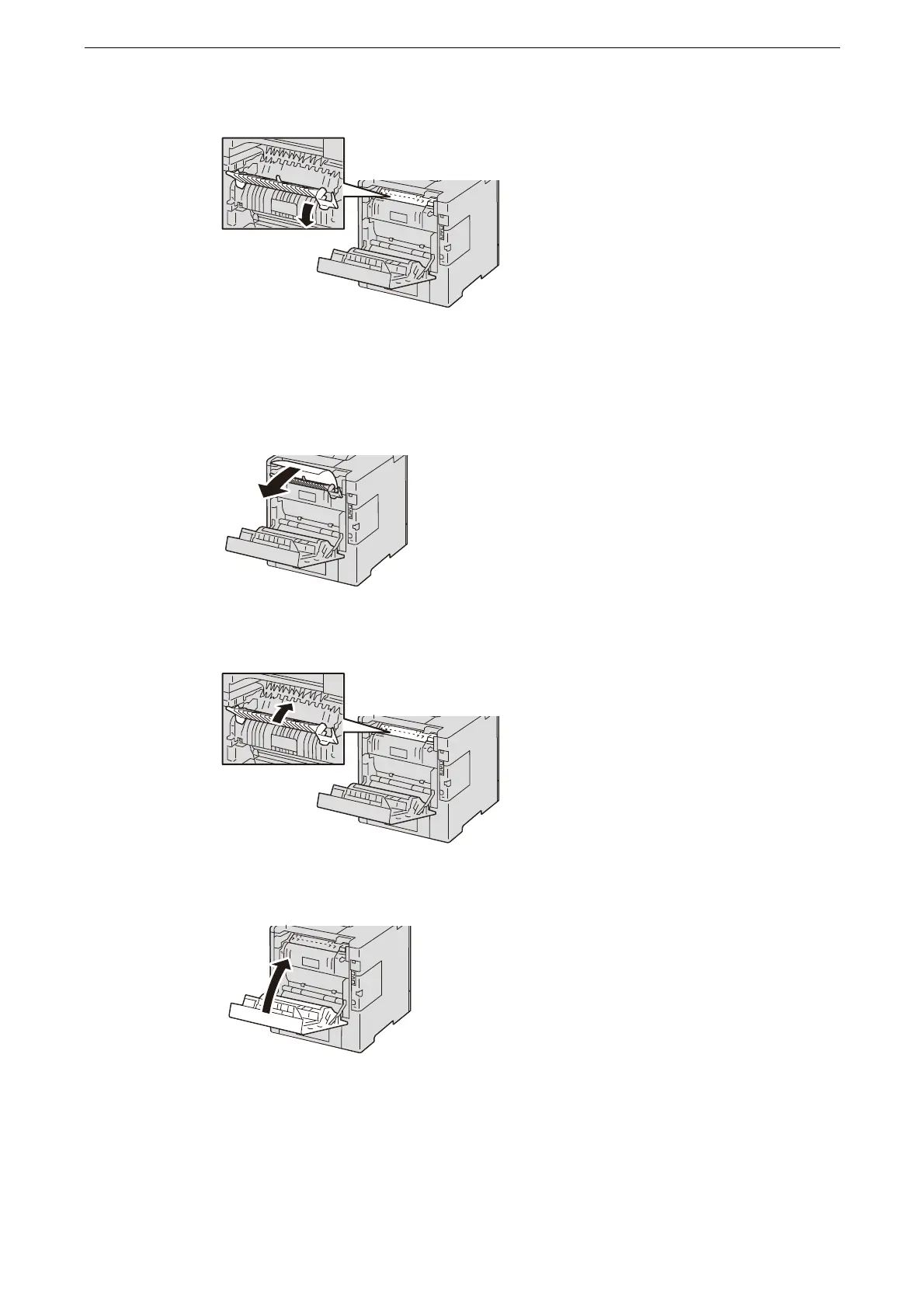

Open the green tab of the fusing unit.

Remove any jammed paper.

Note



The fusing unit is hot. Do not touch it, doing so may cause burns.

Return the green tab.

Close the rear door.
