System upgrades
36 A26361-K990-Z120-1-7619, Edition 6
Opening front panel
► Open the casing (see "Opening the casing").
1
1
1
2

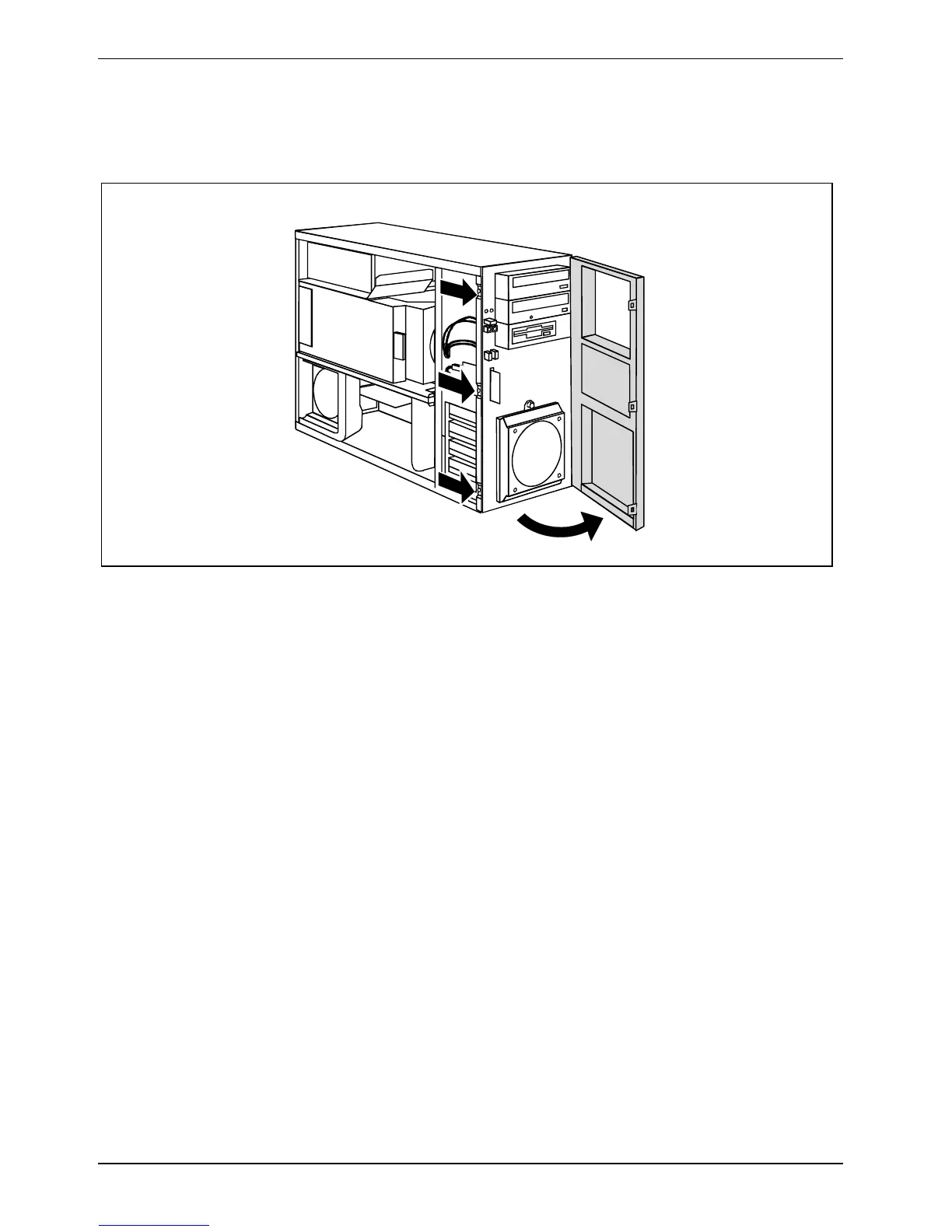

► Detach the three locking tabs on the left side of the front panel (1).
► Fold open the front in the direction of the arrow (2).
► If necessary, detach the hinge on the right-hand side of the front panel from the casing and
carefully remove the front panel.
