System upgrades
60 A26361-K990-Z120-1-7619, Edition 6

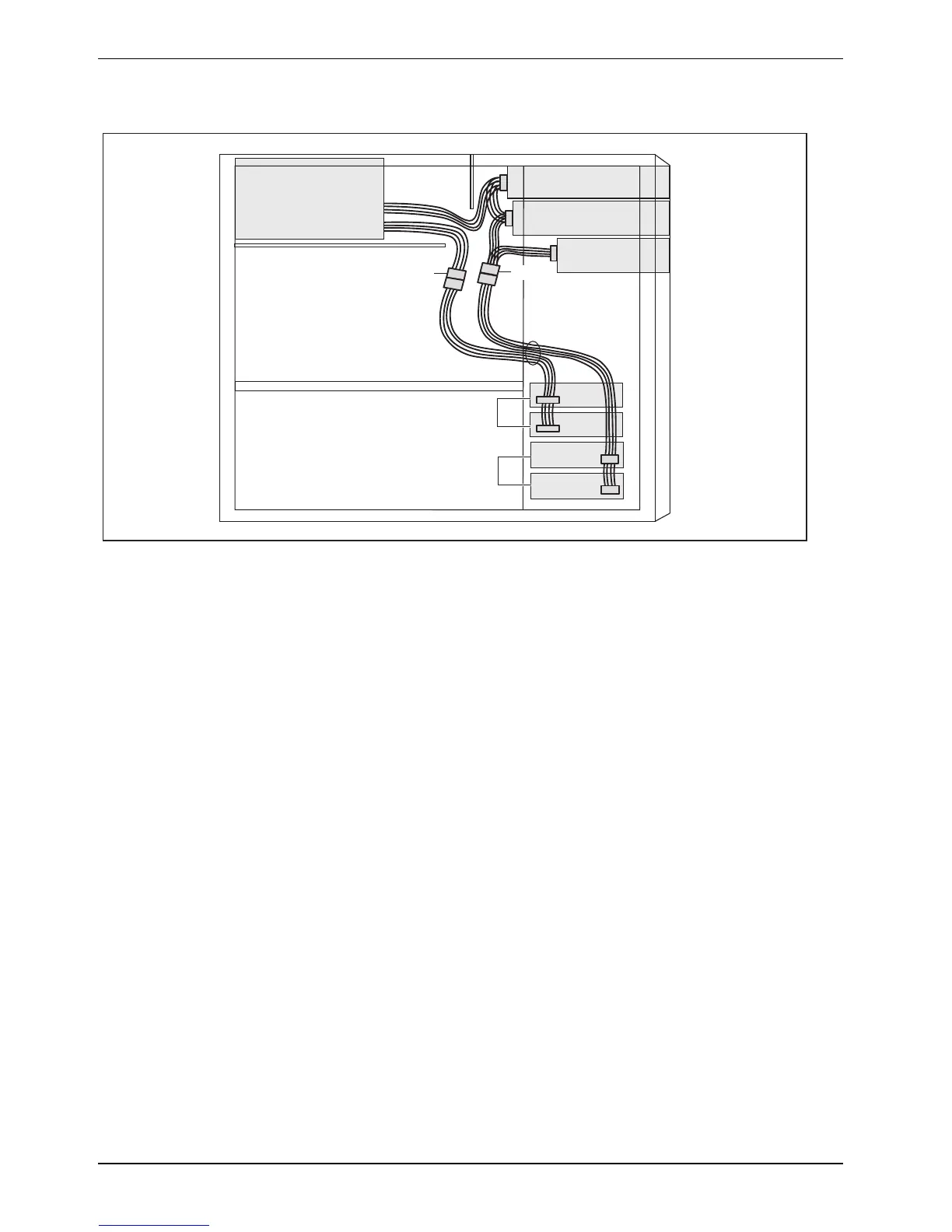

Wiring diagram for mixed equipment with S-ATA and SCSI/SAS drives (CELSIUS M)
SV
P11
HD 1
DVD
CD ROM
FD
HD 2
HD 3
HD 4
SATA
P5
SCSI/SAS
If you install two S-ATA drives and two SCSI drives or two SAS drives, you must connect the S-ATA
hard disks to the connector P11 and the SCSI/SAS hard disks to the connector P5.
