Preparing for use
16 A26361-K678-Z121-1-7619, edition 1
Ports

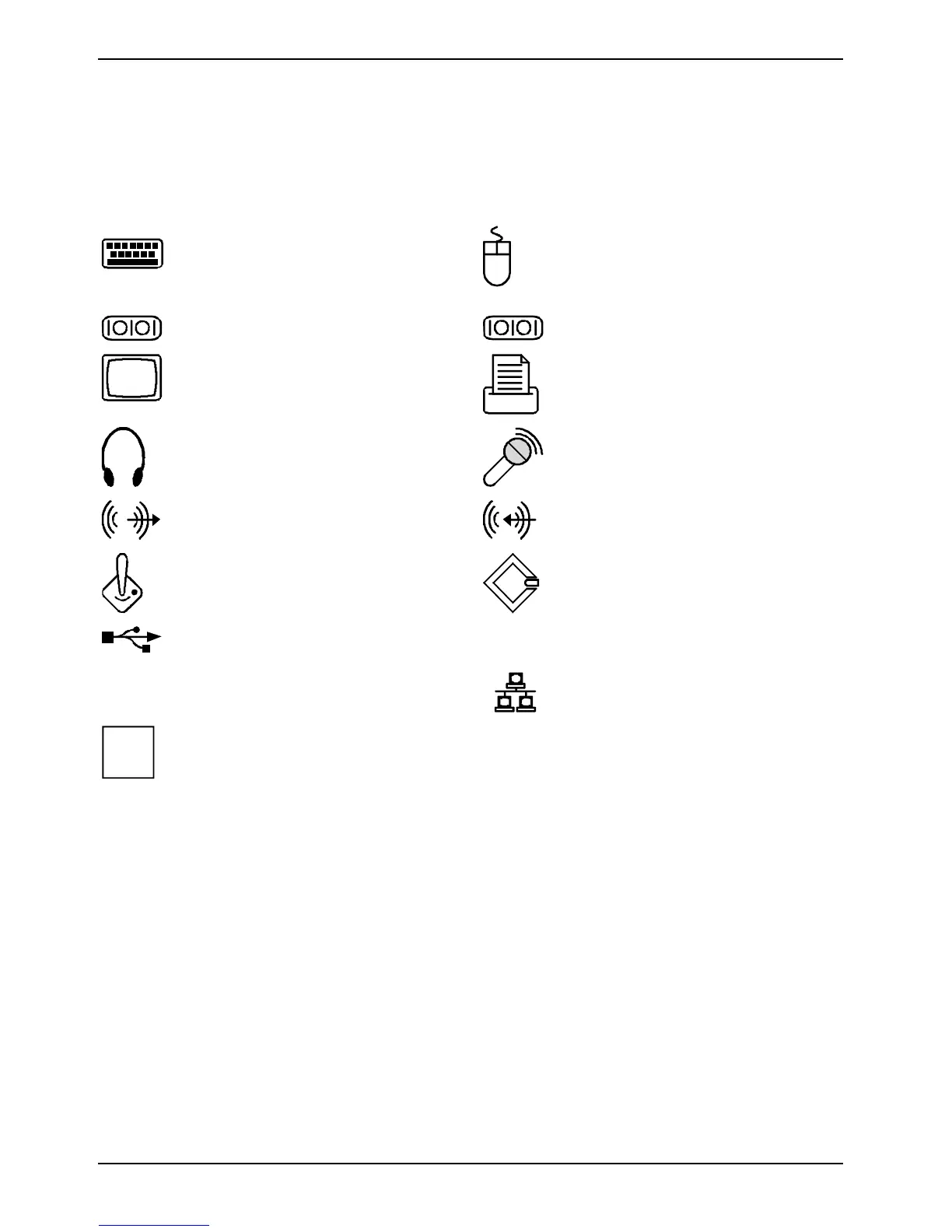

The ports for external devices are on the rear and on the front of the PC. The ports available on your
PC depend on the configuration level you have selected. The standard ports are marked with the
symbols shown below (or similar). Exact details of the position of the ports are supplied in the
technical manuals for the boards.
Keyboard port / purple
PS/2 mouse port / green
1
Serial interface 1 / turquoise
2
Serial interface 2 / turquoise
Monitor port / blue
Parallel interface / Printer / burgundy
Headphones port / orange / light
green
Microphone jack (mono) / pink
Audio output (Line out)/ light green
Audio input (Line in) / light blue
Game port / gold
SCSI connection
USB - Universal Serial Bus / black
LAN
LAN port
i
Some of the devices that you connect require special drivers (see the operating system
and device documentation).
