Operation
A26361-K678-Z121-1-7619, edition 1 23
Working with floppy disks
i
Follow the instructions supplied by the vendor of the floppy disks.
Never clean the floppy disk drives with cleaning disks. Any attempt would destroy the
read/write head in the disk drive within 20 seconds.
3
2
1
5
6
4
7

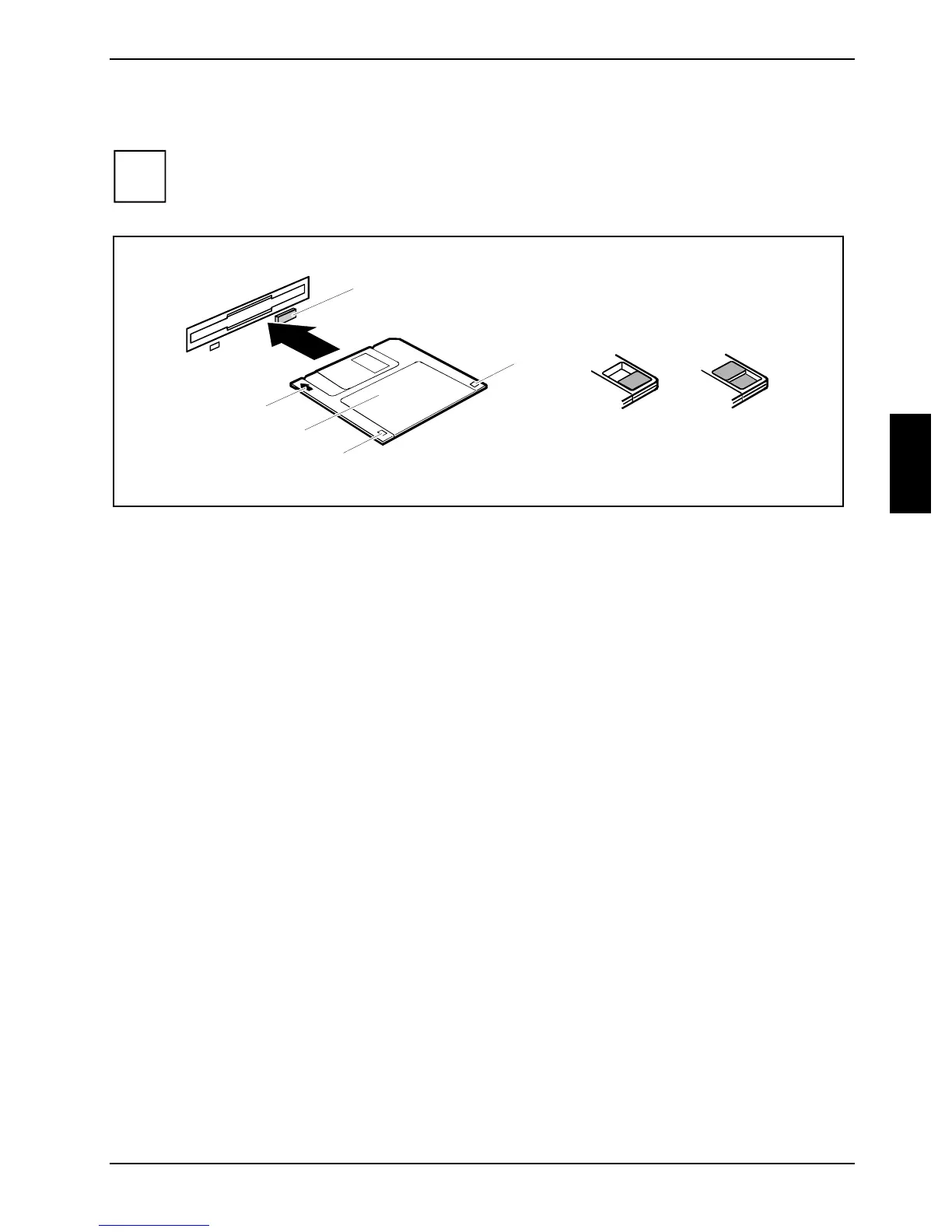

1 = Insertion direction
2 = Label area
3 = Write protection switch for a 720 KB or a 1.44 MB floppy disk
4 = Identification of a 1.44 MB floppy disk or write protect switch on a 120 MB floppy disk
5 = Eject button for inserted floppy disks
6 = Disk is write-protected
7 = Disk is not write-protected
To insert a diskette
► Push the floppy disk into the drive in the insertion direction (1) until it engages. The label
should be facing upward.
To remove a diskette
► Push the eject button (5).
Protect the floppy disk against being overwritten or erased
► Slide the write-protect slider into position (6). The hole is now visible.
Deactivate write protection
► Slide the write-protect slider into position (7). The hole is now covered.
