System expansions
46 A26361-K678-Z121-1-7619, edition 1
Installing/removing hard disk drive and drive cage with
screws
i
This chapter only applies to the SCENIC Edition X102.
On the SCENIC Edition X102, both hard disks can only be secured with screws. In
addition, the drive cage must also be removed first.
Removing a hard disk drive
► Open the casing (see "Opening the casing").
► Disconnect all connected cables (data cable, power supply) from the drives already installed.
2
1
3
3

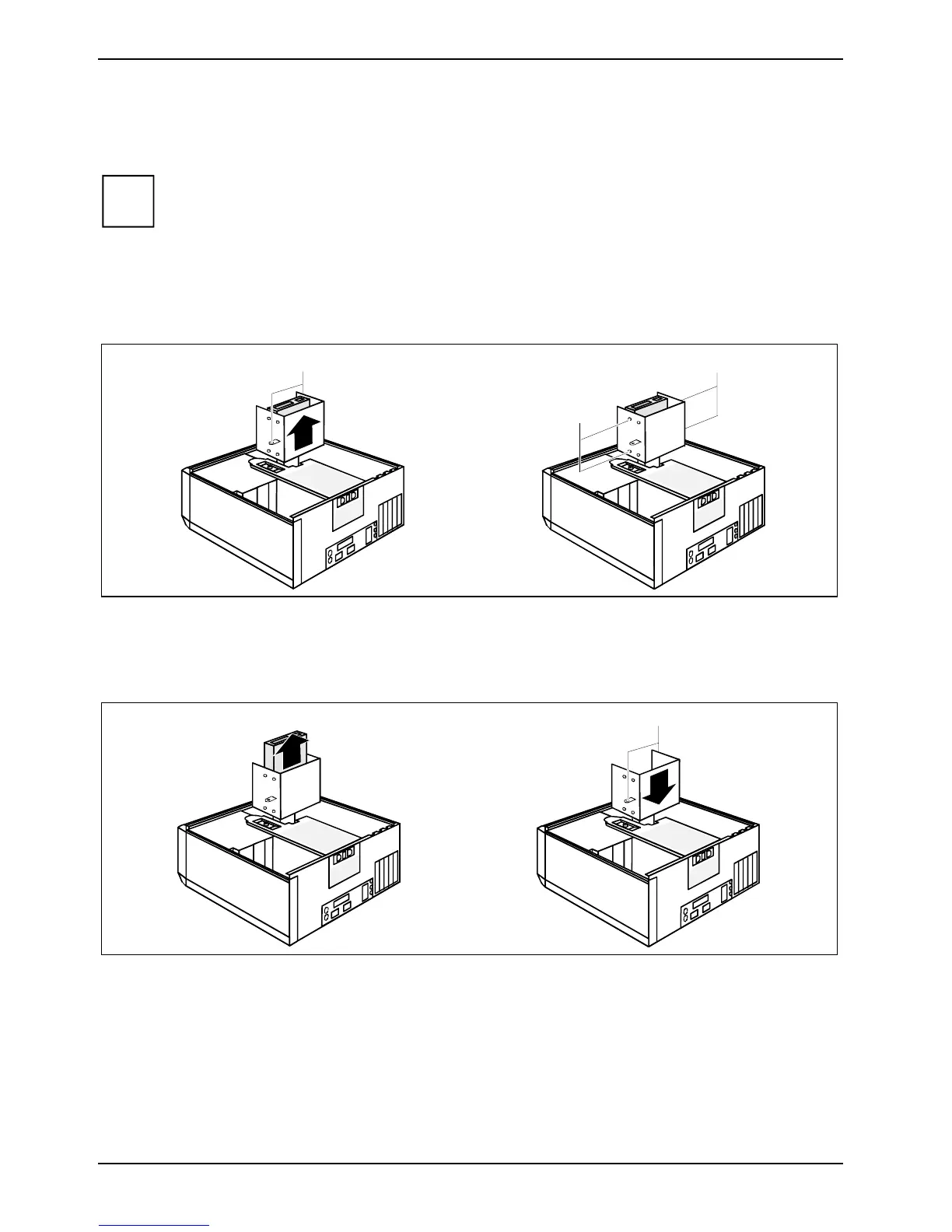

► Unscrew the two screws on the drive cage (1).
► Pull the drive cage upward (2) out of the casing.
► Unscrew the four screws (3) which secure the hard disk drive on the drive cage.
4
6
5
► Pull the hard disk drive out of the drive cage (4).
► Push the drive cage into the bracket (5) of the casing again.
► Mount the drive cage with the two screws (6).
