System expansions
A26361-K678-Z121-1-7619, edition 1 45
Installing a hard disk drive
► Open the casing (see "Opening the casing").
► Take the new hard disk drive out of its packaging.
► Make the required settings (e.g. master/slave, cable select) on the drives.
► Connect the cables to the hard disk drive.
2
1

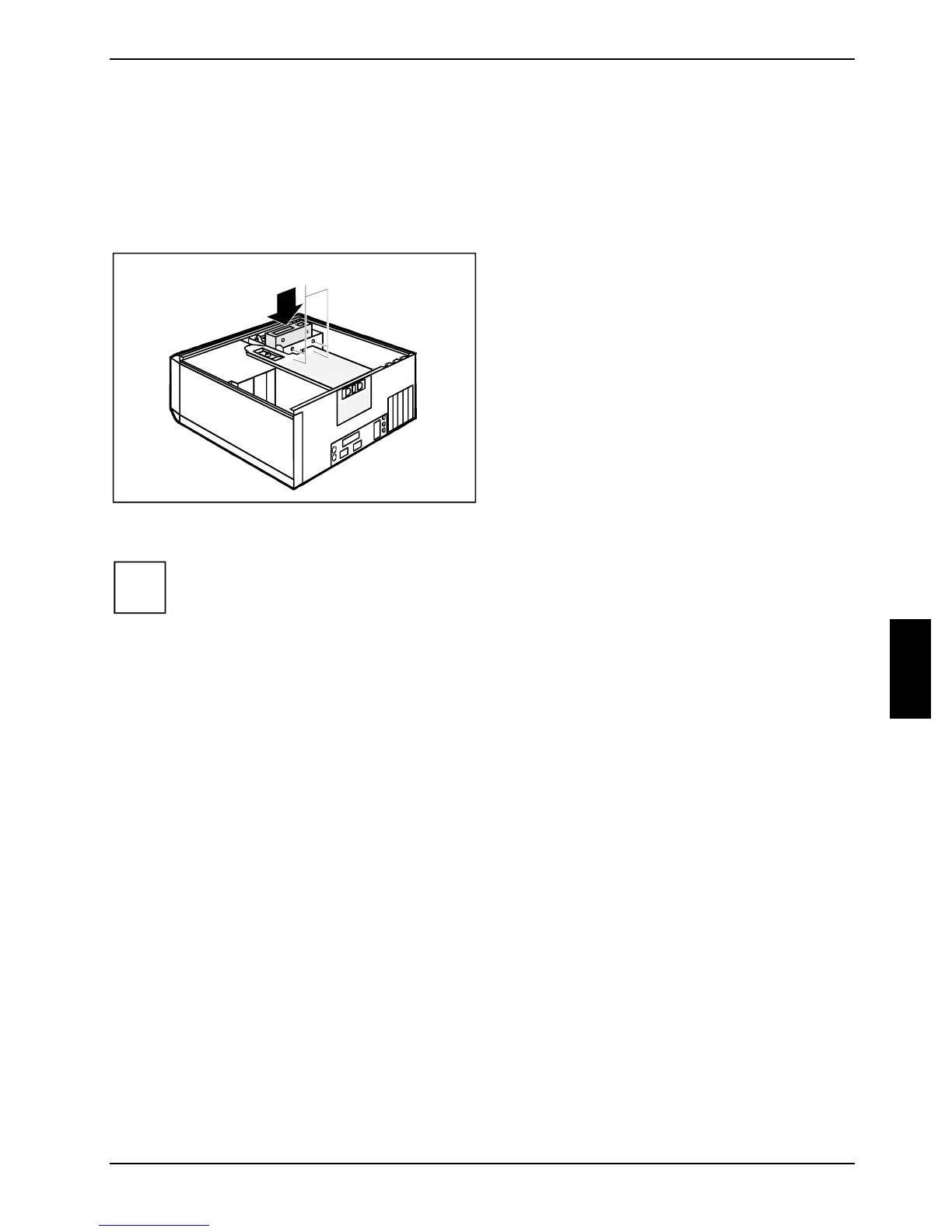

► Slide the hard disk drive into the second
bay in the direction of the arrow (1).
► Screw the new hard disk drive firmly onto
the drive cage with the included four
screws (2).
► Close the casing (see "Closing the casing").
i
It may be necessary to modify the entry for the drive in the BIOS Setup.
