System expansions
A26361-K678-Z121-1-7619, edition 1 37
Low-Profile boards
For units with a particularly low overall height, there are so-called low-profile boards with a slot cover
with a lower overall height to match the low-profile units. To also install these low-profile boards in
normal board slots, you must mount a corresponding slot adapter beforehand

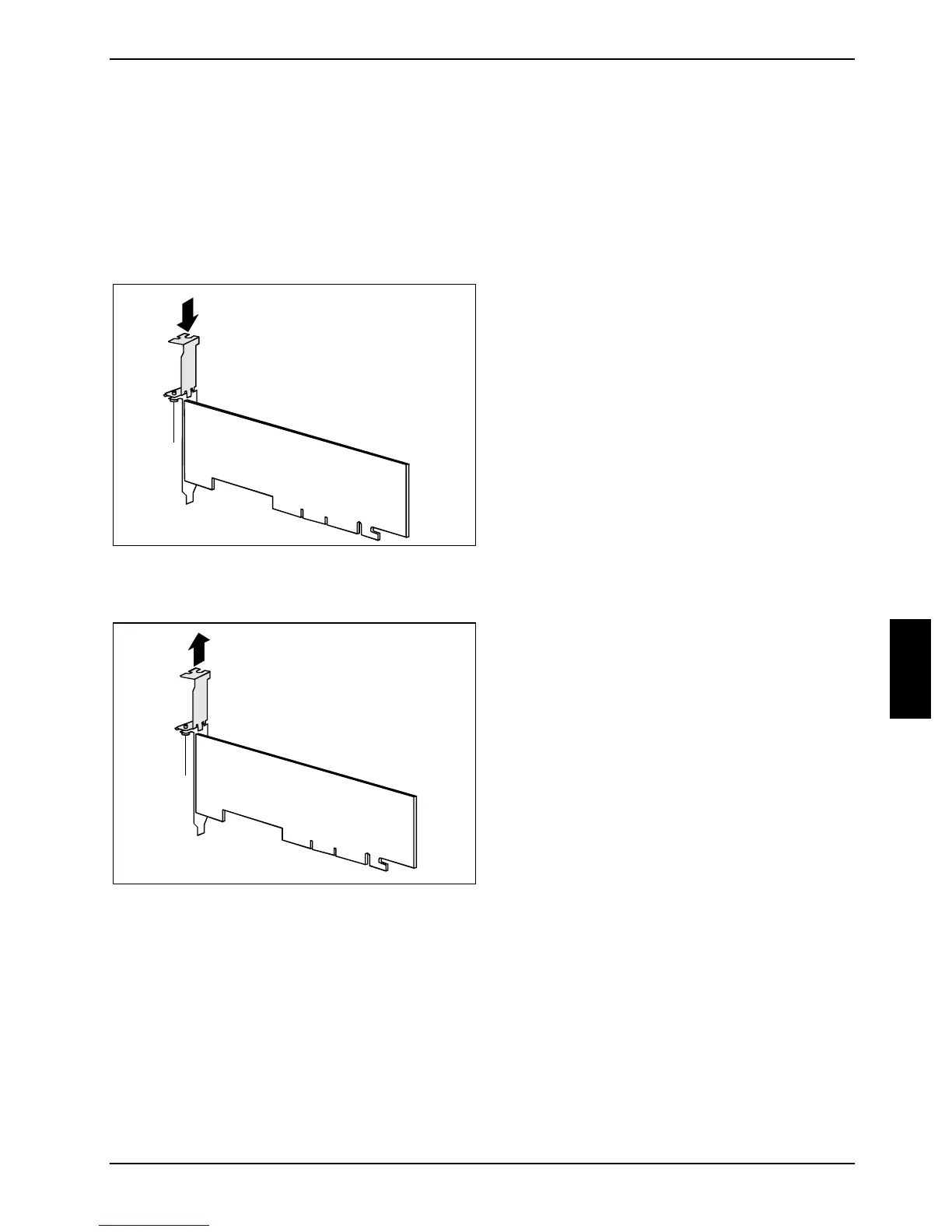

Mounting slot adapter
2
1
► Fit the slot adapter on the slot cover of the
low-profile board (1) and screw it on (2).
Now you can install the low-profile board in a
suitable slot like a normal board (see the chapter
"Installing board").
Removing slot adapter
2
1
► Unscrew the screw (1) and remove the slot
adapter (2).
